Fronius TransTig 800 Job User Manual

42
MagicWave
4000 / 5000 Job

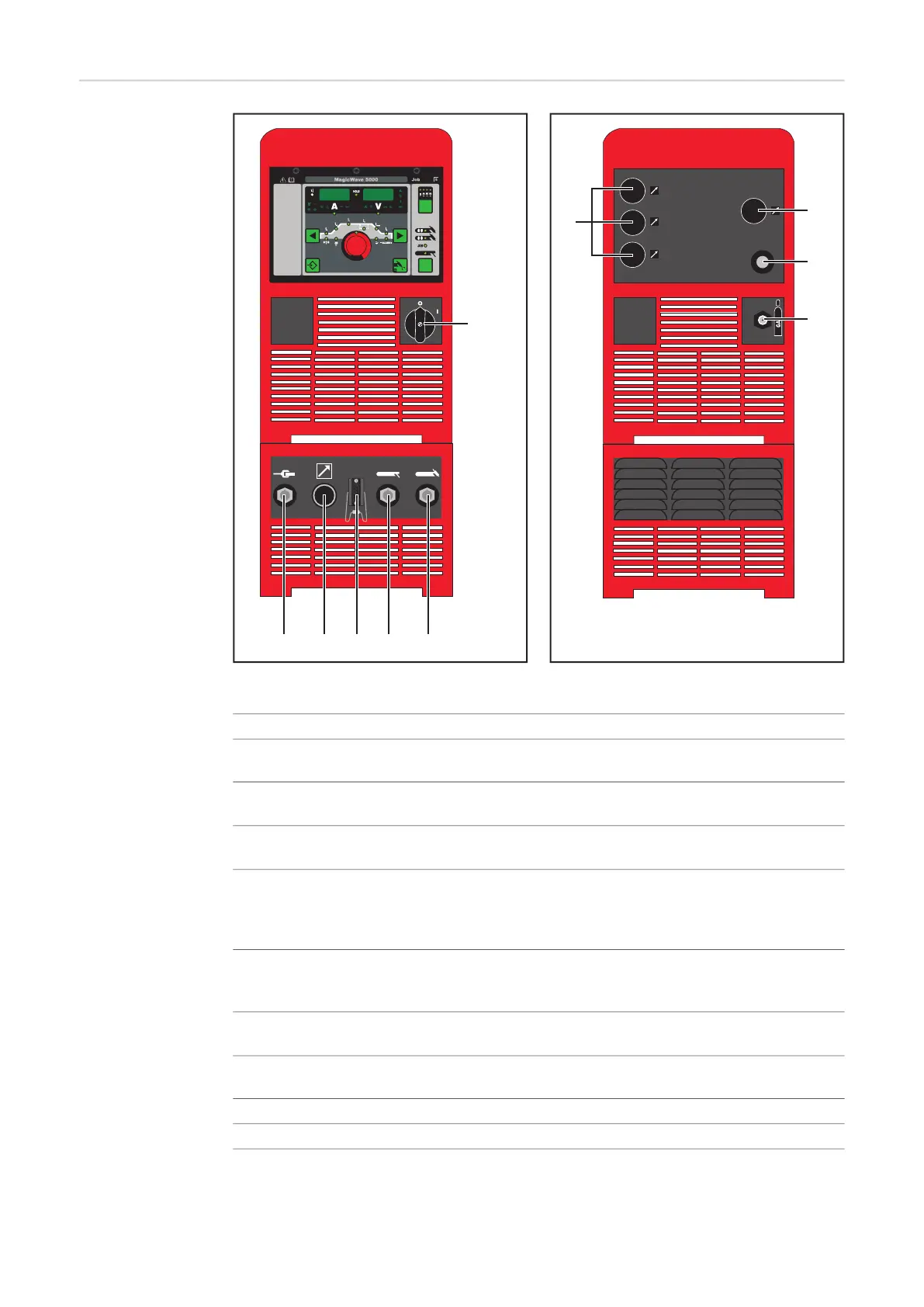

MagicWave 4000 / 5000 Job - front MagicWave 4000 / 5000 Job - rear
(6) (5) (4) (3) (2)
(1)
(7)
(7)
(8)
(9)
No. Function
(1) Mains switch
for switching the power source on and off
(2) Welding torch connection
for connecting the TIG welding torch
(3) Electrode holder connection
for connecting the electrode cable for manual metal arc welding
(4) Torch control connection
- for connecting the control plug of a conventional welding torch
- input for the collision protection signal when a robot interface or field bus cou-
pler is connected
(5) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control, JobMas-
ter TIG welding torch, etc.)
(6) Grounding (earthing) cable connection
for connecting the grounding (earthing) cable
(7) Blanking cover
reserved for LocalNet connection
(8) Mains cable with strain relief device
(9) Shielding gas connection
