Fronius TransTig 800 Job - Tacking Function

76
*) (1/F-P = time interval between two pulses)
Tacking function The tacking function is available for the TIG DC welding process.
When a time period is specified for the tAC (tacking) setup parameter, the tacking function
is assigned to 2-step mode and 4-step mode. The operating sequence of the modes re-
mains unchanged.
During this period, a pulsed welding current is present that makes the weld pool run togeth-
er better when two parts are being tacked.
Mode of operation of tacking function when the TIG DC welding process is selected:

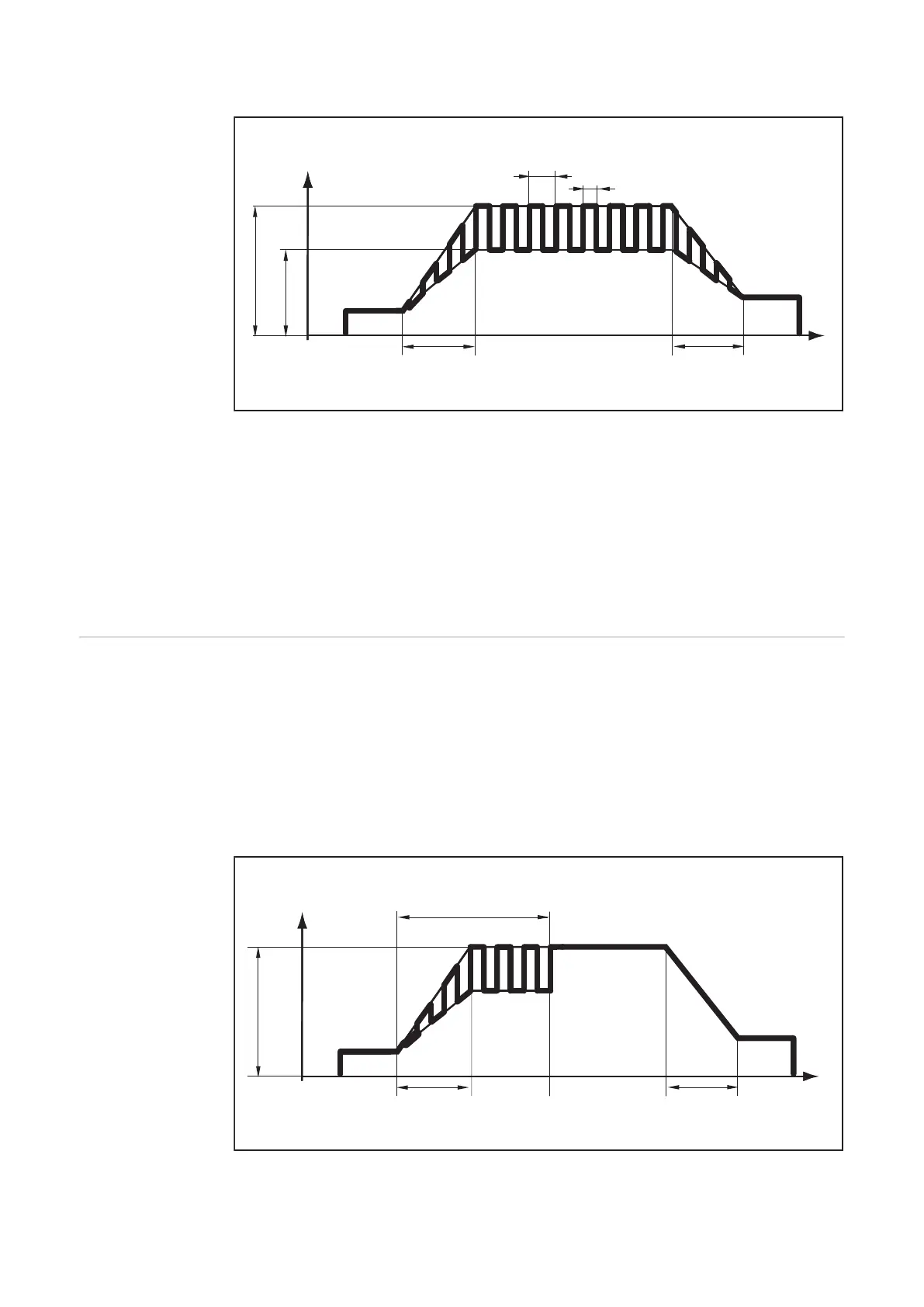

Tacking function - welding current curve
Mode of operation of TIG pulsing when TIG DC welding is selected:
TIG pulsing - welding current curve
