Fronius TransTig 800 Job - Page 54

54

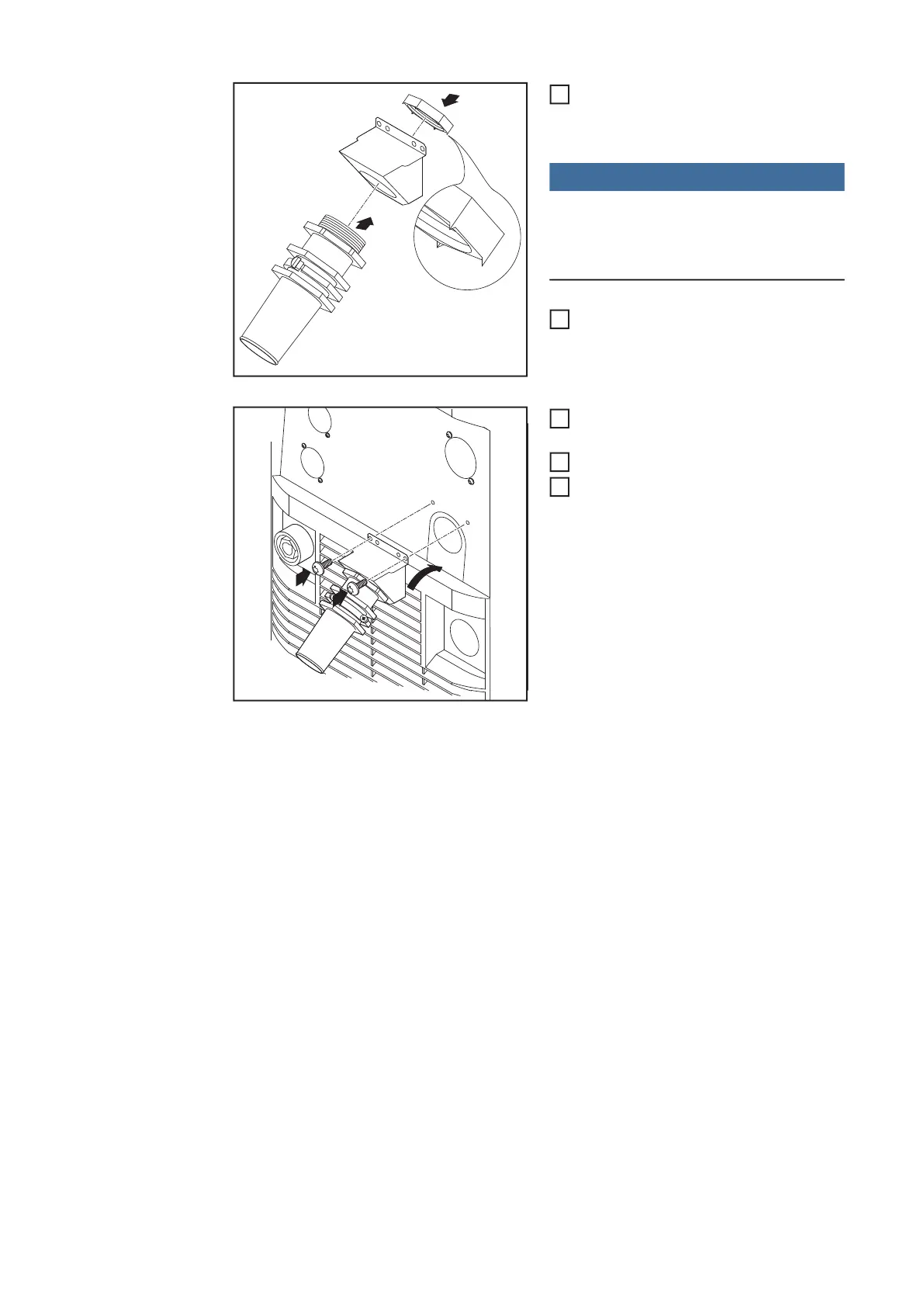

Insert the hexagon nut (size 50 mm)
into the holding plate
NOTE!
To ensure a reliable earth connection to
the housing of the power source, the
points on the hexagon nut must be fa-
cing the holding plate.
Screw the front of the large strain-relief
device into the hexagon nut (size 50
mm). The hexagon nut (size 50 mm)
now bites into the holding plate.
Slot the large strain-relief device into
the housing and fasten it with 2 screws
Connect the mains cable
Re-fit the left side panel of the power
source
5
6
6
7
7
7
8
9
