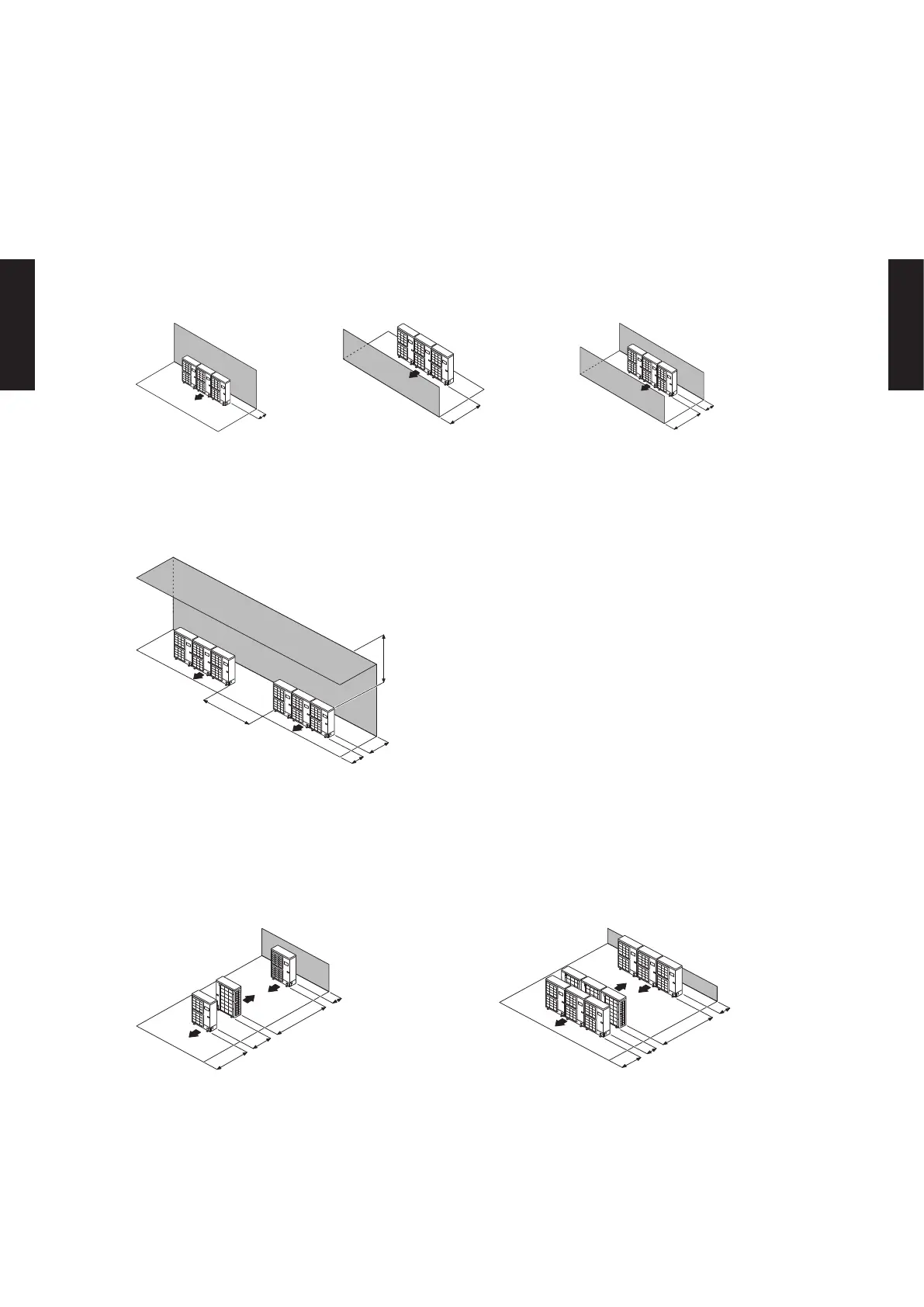

3-2. MULTIPLE OUTDOOR UNIT INSTALLATION

●
Provide at least 1 in. (25mm) of space between the outdoor units if multiple units are
installed.

●
When routing the piping from the side of an outdoor unit, provide space for the piping.

●
No more than 3 units must be installed side by side.
When 3 units or more are arranged in a line, provide the space as shown in the following
example when an obstruction is present also in the upward area.

WHEN THE UPWARD AREA IS OPEN
z
Obstacles at rear only
z
Obstacles at front only
z
Obstacles at front and rear only
12 (300)
60 (1,500) or more
20 (500)
60 (1,500) or more

WHEN AN OBSTRUCTION IS PRESENT ALSO IN THE UPWARD
AREA
z
Obstacles at rear and above only
60 (1,500)
20 (500)
Max. 12 (300)
60 (1,500)
3-3. OUTDOOR UNITS INSTALLATION IN MULTI ROW

●
The following settings are not recommended in case of cooling by a low outside temperature.
z
Single parallel unit arrangement
z
Multiple parallel unit arrangement
6 (150)
24 (600)
40 (1,000)
79 (2,000) or more
20 (500)
24 (600)
60 (1,500)
119 (3,000) or more
