3. COMPATIBILITY OF VRF SYSTEM


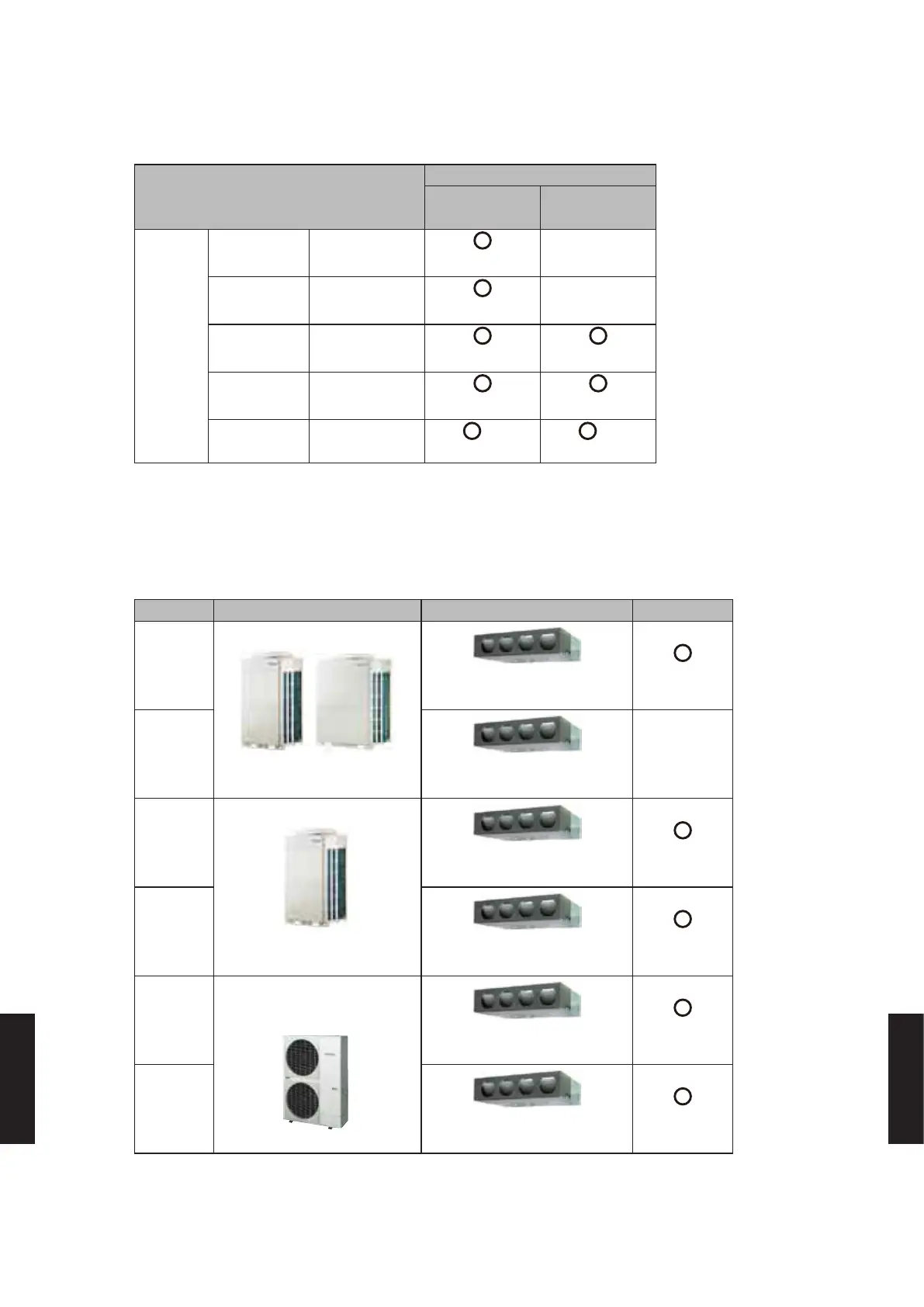

COMPATIBILITY OF OUTDOOR UNIT AND INDOOR UNIT

OUTDOOR UNIT AND INDOOR UNIT
Compatibility of outdoor unit and indoor unit in refrigerant system as follows.
Indoor unit
New model *1
Previous
model *2
Outdoor
unit
VR-
Ⅱ
series
(230V)
Heat
Recovery
OK

Prohibited
VR-
Ⅱ
series
(460V)
Heat
Recovery
OK

Prohibited
V-
Ⅱ
series
(230V)
Heat Pump
OK OK
V-
Ⅱ
series
(460V)
Heat Pump
OK OK
J-
Ⅱ
series Heat Pump
*3
OK
*3
OK
*1: New model name is "A*****TLAV" (*: arbitrary character)
*2: Previous model name is "A*****RLAV" (*: arbitrary character)
*3: Following indoor units cannot be connected. (ARUH 72 / 96)

E
xample cases for compatibility
Outdoor unit Indoor unit Judgement
Case 1
VR-
Ⅱ
series
(230 / 460V)
ARUM24TLAV
(New model)
OK
Case 2
ARUM24RLAV
(Previous model)

Prohibited
Case 3
V-
Ⅱ
series
(230 / 460V)
ARUM24TLAV
(New model)
OK
Case 4
ARUM24RLAV
(Previous model)
OK
Case 5
J-
Ⅱ
series
ARUM24TLAV
(New model)
OK
Case 6
ARUM24RLAV
(Previous model)
OK
