Fujitsu Airstage J-II Series - Remote Sensor Unit

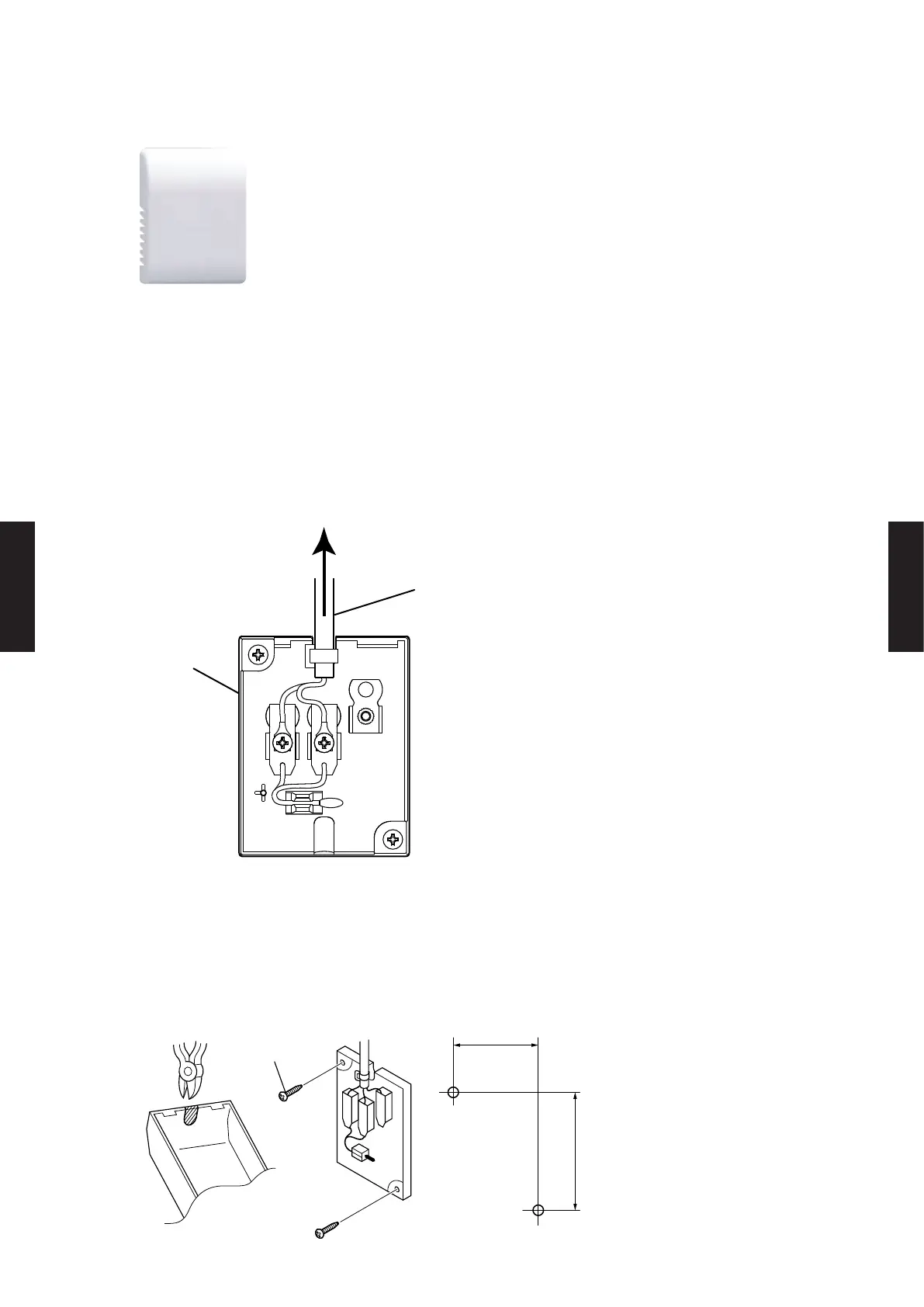

2-14. REMOTE SENSOR UNIT

MODEL: UTD-XSZX
The remote sensor unit allows for exible temperature sensing for optimum temperature
control.

ELECTRICAL WIRING
● Remove the screws from the remote sensor, and remove the cover.
● Connect the cable to the remote sensor as shown below.
● Ensure that the wires do not contact each other.
Remote sensor
To indoor unit
Cable

INSTALLATION
z
When the cable is attached to the wall
● Remove the material covering the wiring penetration (thin material) in the cover of the sensor
unit with a pair of cutters. The cable passes through this hole.
● Now the remote sensor on the wall using the screws.
●
1-9/16 (40)
2-3/16 (55 )
Screw
[M4 × 5/8(16)]
Unit : in. (mm)
Mounting hole dimensions
- (05 - 100) -
