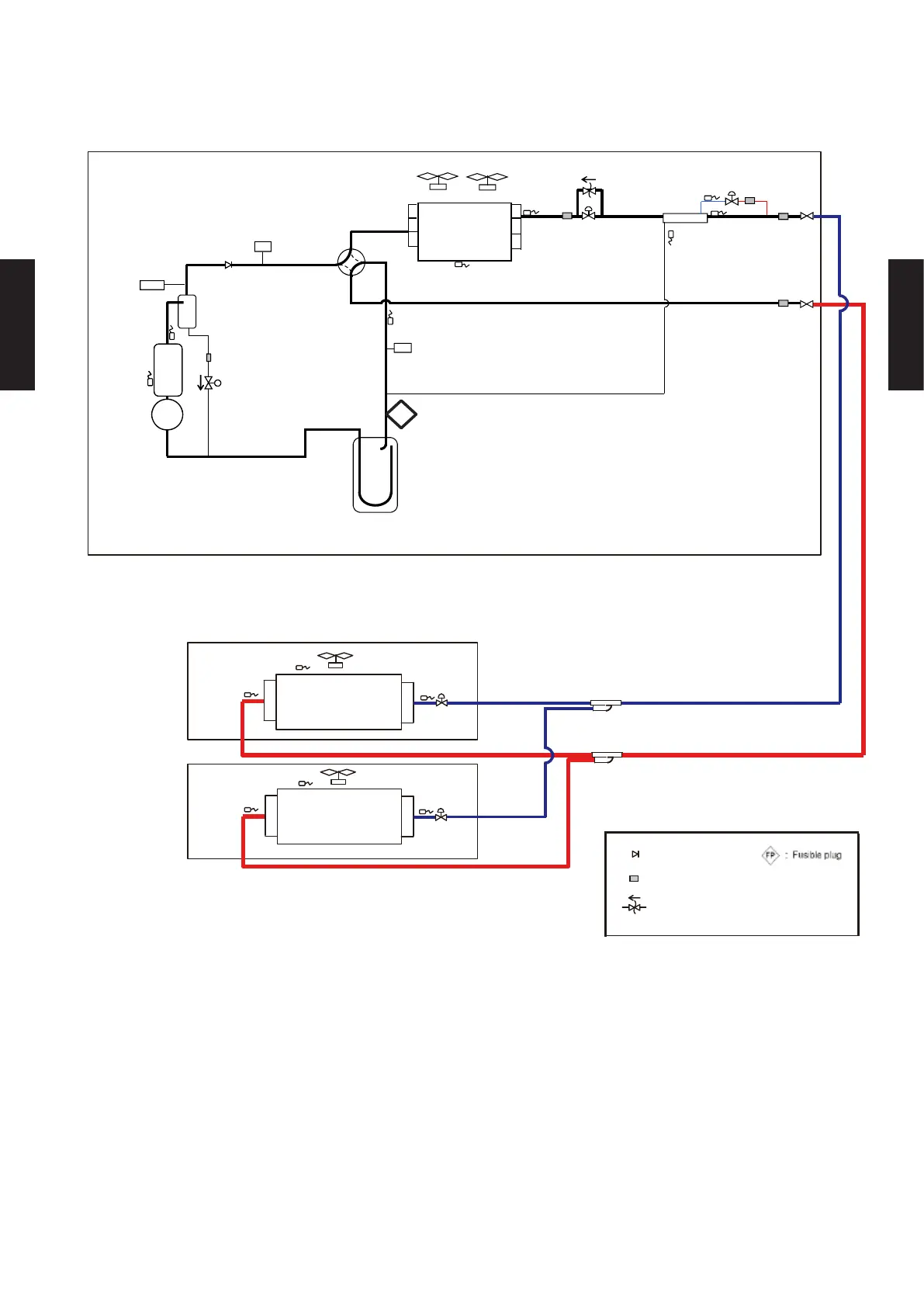

4. REFRIGERANT CIRCUIT
MODELS : AOU36RLAVM, AOU48RLAVM, AOU60RLAVM
Outdoor unit
SCHEX
HPS
FAN1
LPS
EEV1
EEV2
TH1
TH3
TH4
TH5
TH7
TH8
TH9
SV2
HPSW
FAN2
ACM
TH10
CMP
ACM
EEV21
EEV21
LIQUID LINE
FAN21
FAN21
Indoor unit1
HEX21
HEX21
Indoor unit2
GAS LINE
TH21
TH22
TH23
TH23
TH21
TH22
: Check valve
: Strainer
: Pressure regulation valve
CMP
INV
OS
HEX
4WV
FP
