1-2. ADDRESS SETTING
For this system, each address should be preset before operation.
Refer following table for outdoor unit, indoor unit, RB unit and each remote controller.


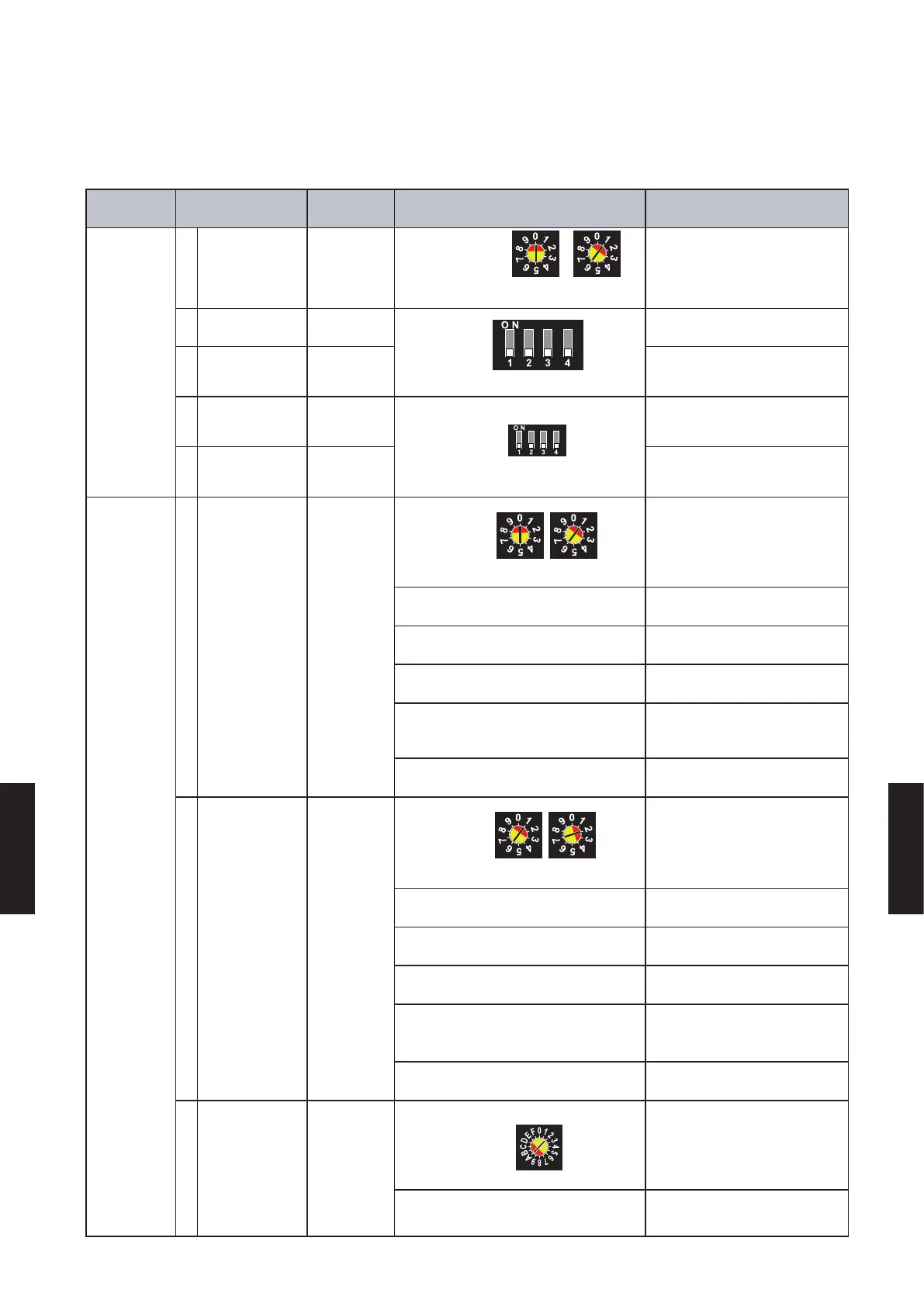

KINDS OF ADDRESS AND SETTING RANGE
UNIT SETTING
SETTING
RANGE
TYPE OF SWITCH REMARKS
Outdoor unit
A
Refrigerant
circuit address
00 ~ 99
Setting
example
01
Arbitrary numbers can be
set in range of 00-99.
B
Outdoor unit
address *1
0 ~ 2
DIP SW SET3-1
DIP SW SET3-2
C
Number of slave
unit *1
0 ~ 2
DIP SW SET3-3
DIP SW SET3-4
(Master unit only)
L
Number of
outdoor units
installed *1
1 ~ 3
DIP SW SET5-1
DIP SW SET5-2
Terminal
resistor
ON/OFF
DIP SW SET5-4
See the setting method 1-6.
Indoor unit
D
Refrigerant
circuit address
00 ~ 99
n
Manual address setting
Setting
example
01
Arbitrary numbers can be
set in range of 00-99.
n
Infrared address setting
Set this switch to 00 at factory setting.
See the setting method 1-4-1.
n
Wired R.C. address setting
Set this switch to 00 at factory setting.
See the setting method 1-4-2.
n
Simple R.C. address setting
Set this switch to 00 at factory setting.
See the setting method 1-4-4.
and 1-4-5.
n
Wired R.C. (Touch panel) address
setting
Set this switch to 00 at factory setting.
See the setting method 1-4-3.
n
Automatic address setting
Set this switch to 00 at factory setting.
See the setting method 1-5-2.
E
Indoor unit
address
00 ~ 63
n
Manual address setting
Setting
example
12
Arbitrary numbers can be
set in range of 00-63.
n
Infrared address setting
Set this switch to 00 at factory setting.
See the setting method 1-4-1.
n
Wired R.C. address setting
Set this switch to 00 at factory setting.
See the setting method 1-4-2.
n
Simple R.C. address setting
Set this switch to 00 at factory setting.
See the setting method 1-4-4.
and 1-4-5.
n
Wired R.C. (Touch panel) address
setting
Set this switch to 00 at factory setting.
See the setting method 1-4-3.
n
Automatic address setting
Set this switch to 00 at factory setting.
See the setting method 1-5-2.
F
Remote
controller
address
0 ~ 15
n
Manual address setting
Setting
example
10
3-wire type R.C. can be
set in range of 0-15.
n
Automatic address setting
Set this switch to 0 at factory setting.
2-wire type only
*Set up after conrming the details of each unit.
*1: This function is available VR-II and V-IIseries
REF AD
x10
REF AD
x1
SET3
SET5
REF AD
x10
REF AD
x1
IU AD
x10
IU AD
x1
RC AD
- (07 - 03) -
FUNCTION SETTING FUNCTION SETTING
