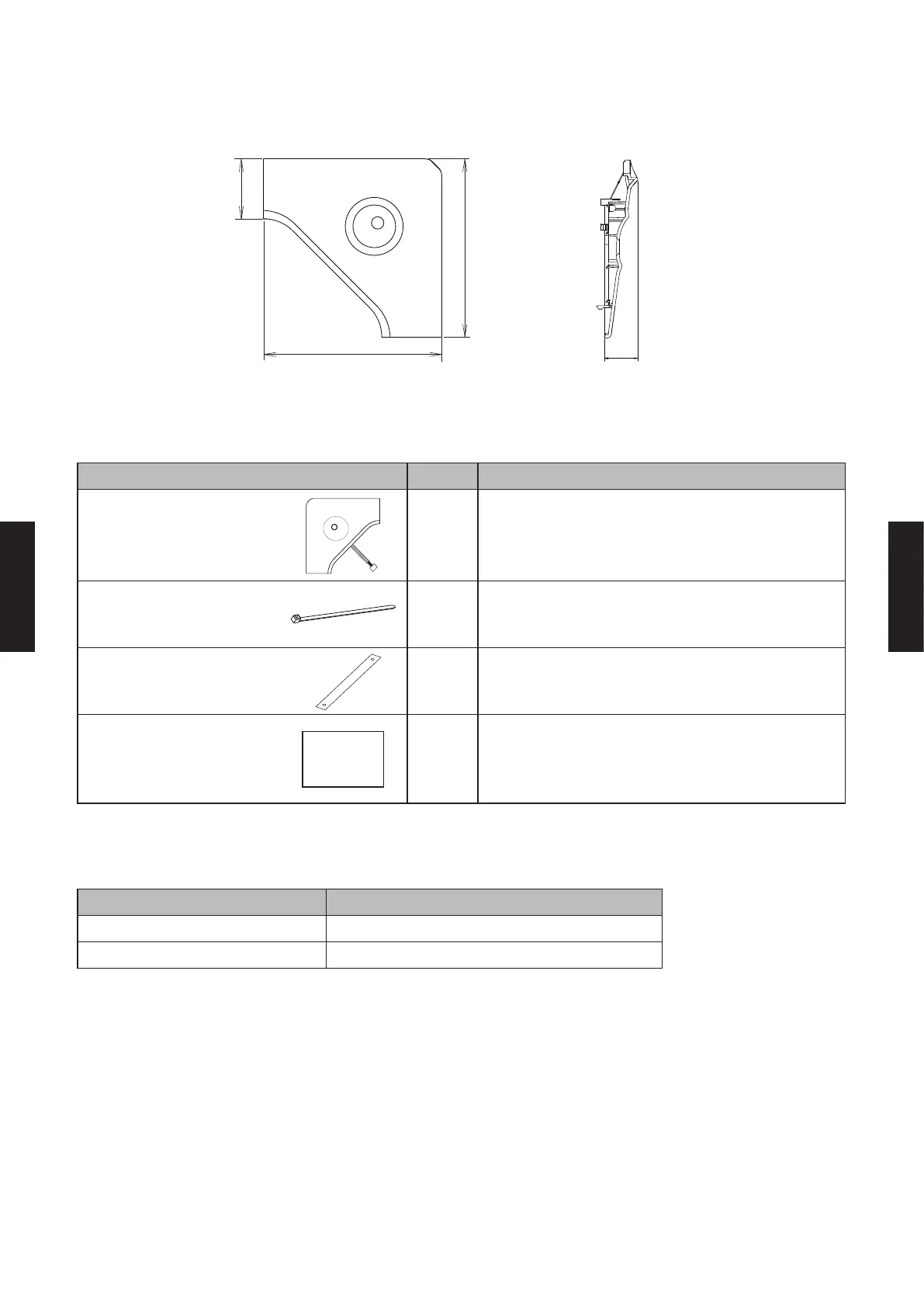

DIMENSIONS

PACKING LIST
Name and shape Quantity
Application
Human sensor unit 1 For detection of movement
Cable tie 3 For binding wires
Strap 1 To prevent Human sensor unit from falling
Insulation 3 To fasten the Human sensor wire

SPECIFICATIONS
Model name UT Y-SHZ XC
Dimensions [H × W × D]: in. (mm) 6-1/2 × 6-1/2 × 1-1/16 (164.5 × 164.5 × 27.5)
Weight: oz. (g) 4 (110)
Unit: in. (mm)
6-1/2
(164.5)
2-3/16
(55.3)
6-1/2
(164.5)
1-1/16
(27.5)
Front View
Side View
