Fujitsu Airstage J-II Series User Manual

Unit : in. (mm)
AUUB18 AUUB24, AUUB30

Refrigerant pipe are
connection
Liquid ø 1/4 (6.35) ø 3/8 (9.52)

Gas ø 1/2 (12.70) ø 5/8 (15.88)

Drain hose ø 3/4 (I.D.), ø 1-1/16 (O.D.)
37-3/8 (950)
37-3/8 (950)
31-5/16 (796)
37-3/8 (950)
30-1/4 (768)
16-9/16 (420)
24-7/16 (620)
13-7/16 (342)
13-7/16 (342)
10-15/16
(278)
2-1/8
(60)
1-9/16
(40)
5-8/16
(140)
10-1/16
(256)
7-7/8
(200)
7-7/8 to 8-1/16 (200 to 205)
7-7/8 to 8-1/16 (200 to 205)
3/8 (10)
1-9/16 (39)

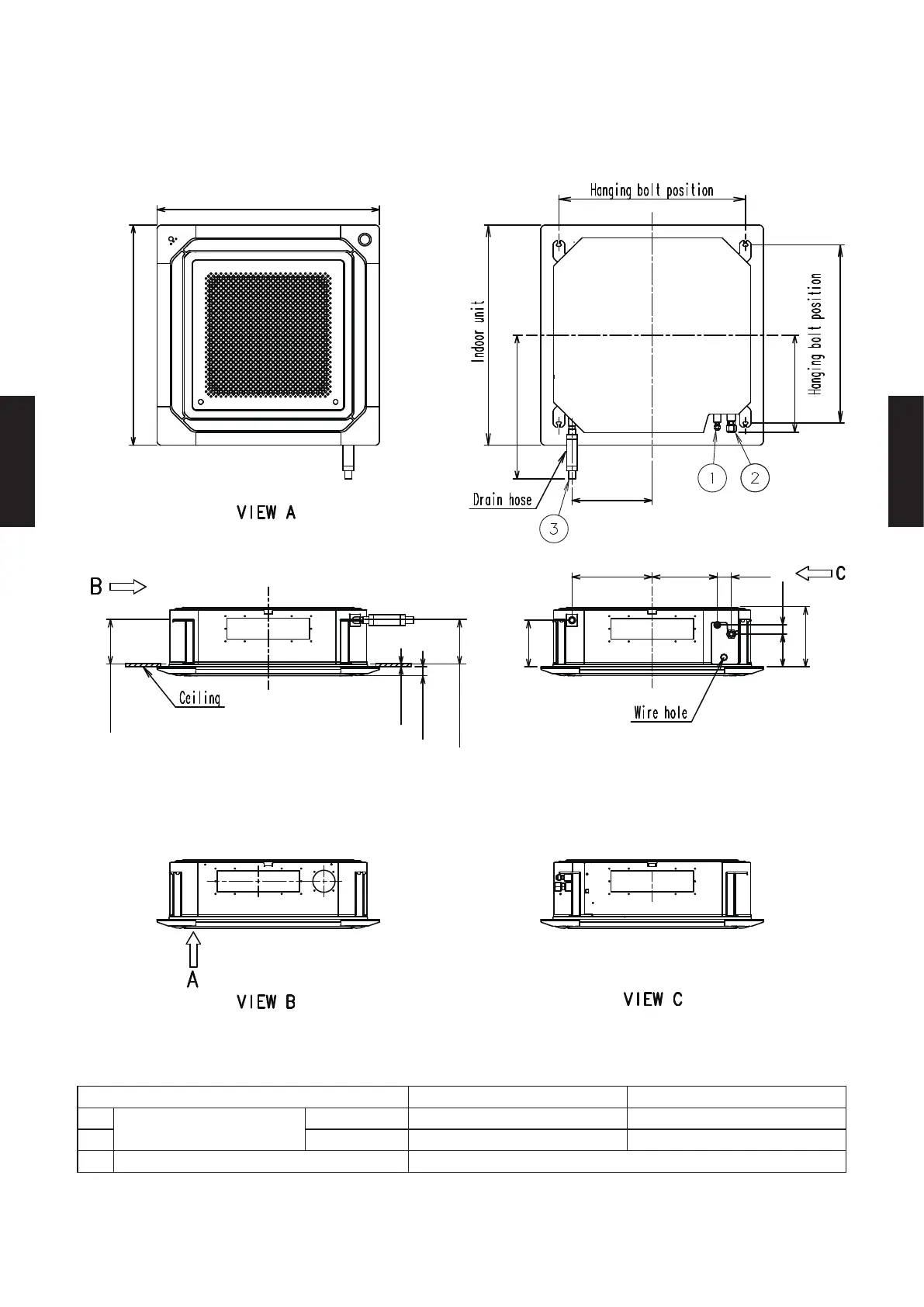

3-2. CIRCULAR FLOW CASSETTE TYPE

MODELS: AUUB18TLAV1, AUUB24TLAV1, AUUB30TLAV1
- (04-26) -
INDOOR UNITS INDOOR UNITS
