Fujitsu Airstage J-II Series User Manual

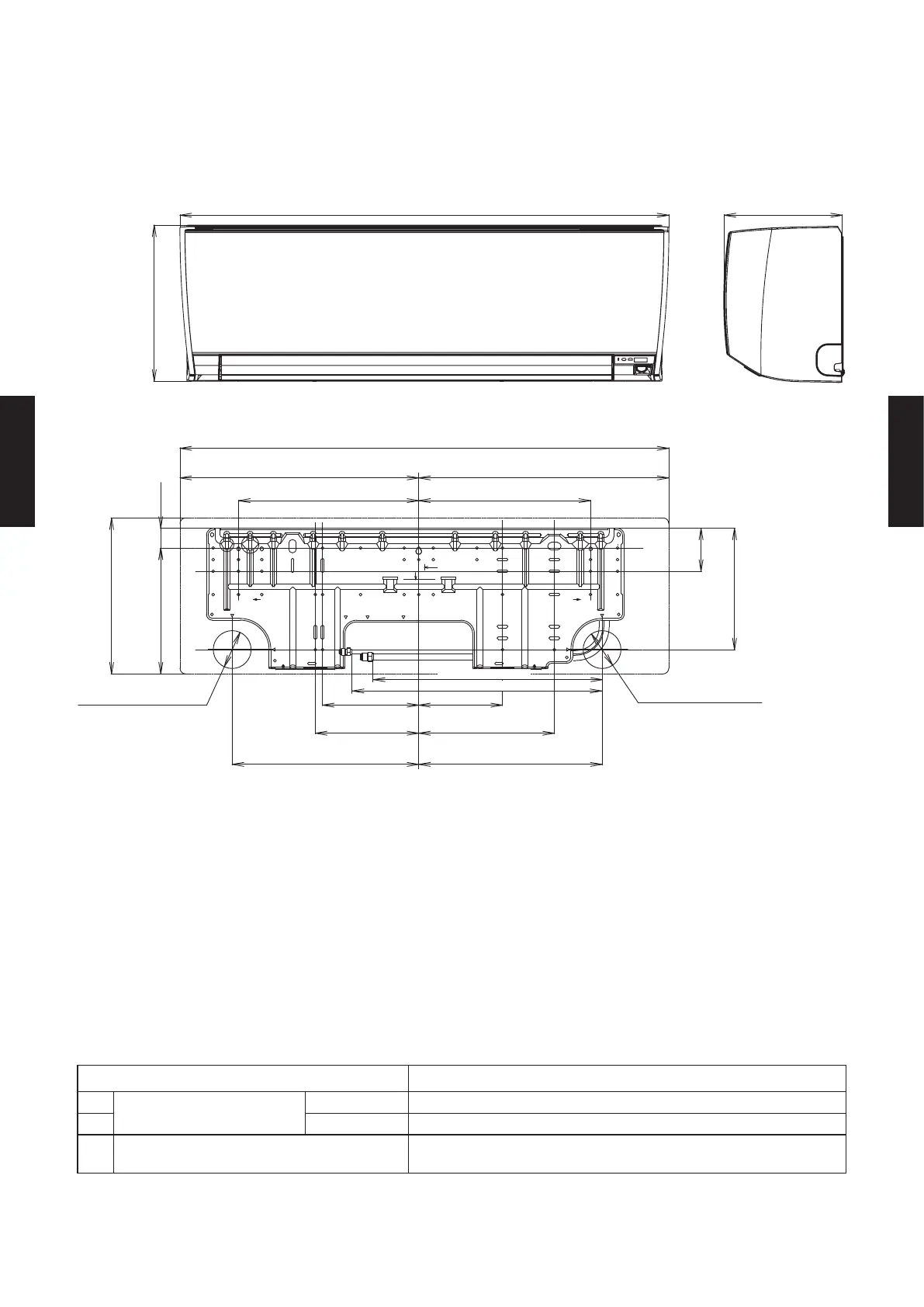

Unit : in. (mm)

MODELS: ASUA12TLAV1, ASUA14TLAV1
ASUA12, ASUA14

Refrigerant pipe are
connection
Liquid ø 1/4 (6.35)

Gas ø 1/2 (12.70)

Drain hose
I.D. 9/16 (13.8) , O.D. 5/8 to 11/16 (15.8 to 16.7)
Drain hose : L=23-5/8 (600)
for pipe inlet for pipe inlet
Gas pipe: 12-3/8 (315)
33-1/16 (840)
10-9/16 (268)
8 (203)
33-1/16 (840)
16-1/8 (410) 16-15/16 (430)
12-3/16 (310) 11-5/8 (295)
10-9/16 (268)
8-1/2 (216) 1-5/16 (34)
8-1/4 (209)
2-15/16
(74)
ø2-9/16 (65)ø2-9/16 (65)
12-5/8 (321)
12-3/8 (315)
7 (178)
9-3/16 (233)
5-11/16 (144)6-1/2 (165)
Liquid pipe: 15 (381)
- (04-60) -
INDOOR UNITS INDOOR UNITS
