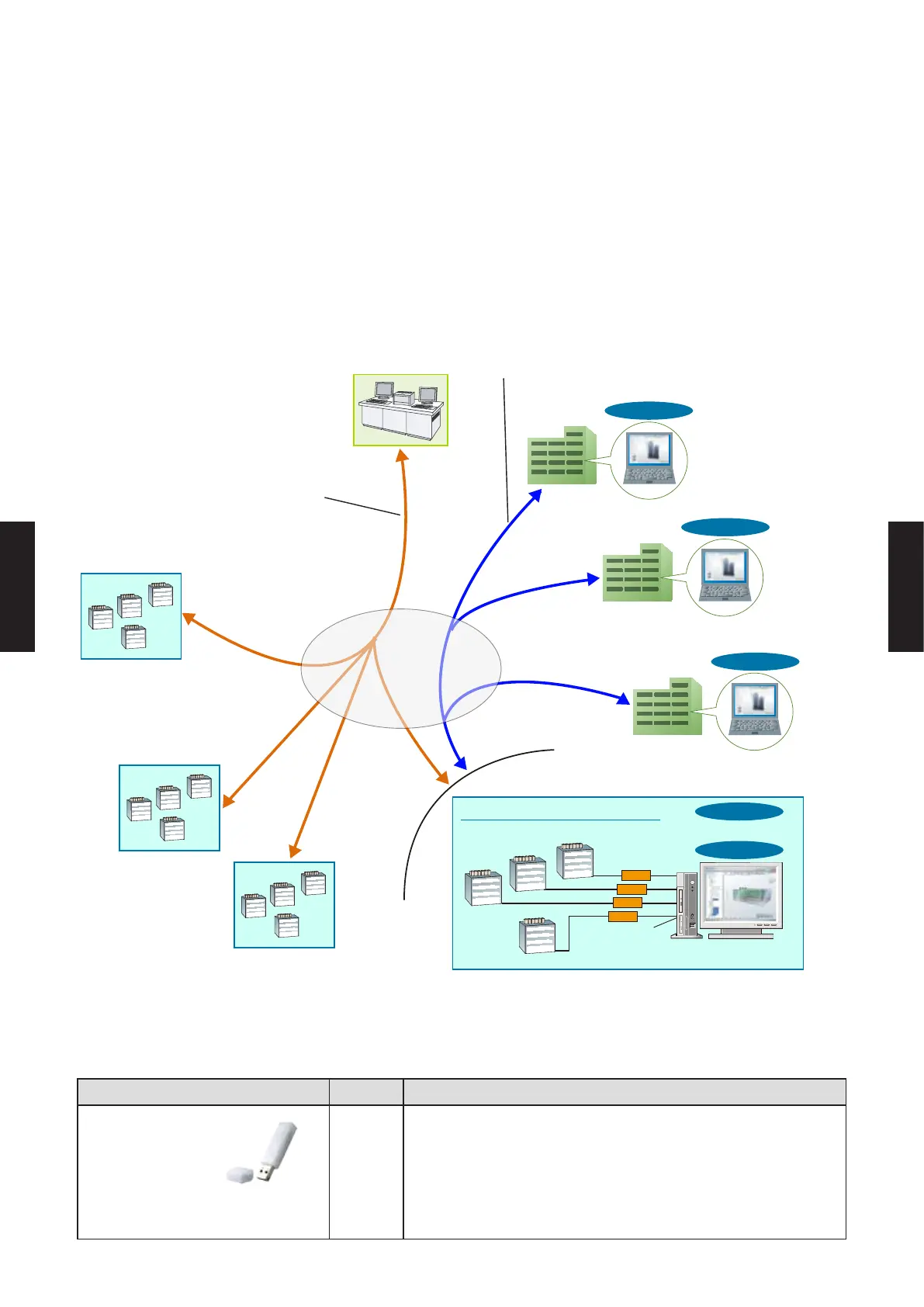

SYSTEM DIAGRAM
● System controller may be used on site or remotely over various networks for remote central
control.
● System controller consists of VRF Controller software and VRF Explorer software, both
software are working together.
● VRF Controller software runs in the background and communicate with VRF System.
● VRF Explorer software provides user interface and communicate with the VRF Controller.
● VRF Controller and VRF Explorer software may run in a single PC or in different PCs
separated by network.
● VRF Explorer software does not require WibuKey (Software protection key).
VRF Controller
VRF Explorer
&
USB Adaptor
System Controller
On site control Max. 4 VRF network systems
USB Port
Internet
or
Telephone Line
or
LAN
VRF Explorer
VRF Explorer
VRF Explorer
VRF Building 1
Building Management
Company A
(In charge of the day shift)
Remote centralized
control / maintenance
center
Remote control /
maintenance to
multiple buildings
Remote control /
maintenance from
multiple sites
Building Management
Company B
(In charge of the night shift)
Security Company
VRF Building 2
VRF Building 3
VRF Building n
●
●
●
PACKING LIST
Name and shape Quantity Application
WHITE-USB-KEY
(software
protection key with software)
1
Software protection key to be connected to an USB port on the
PC that the System Controller is installed. System Controller
runs only on a PC with this
WHITE-USB-KEY
. However, this
WibuKey is not required for remote VRF Explorer software.
