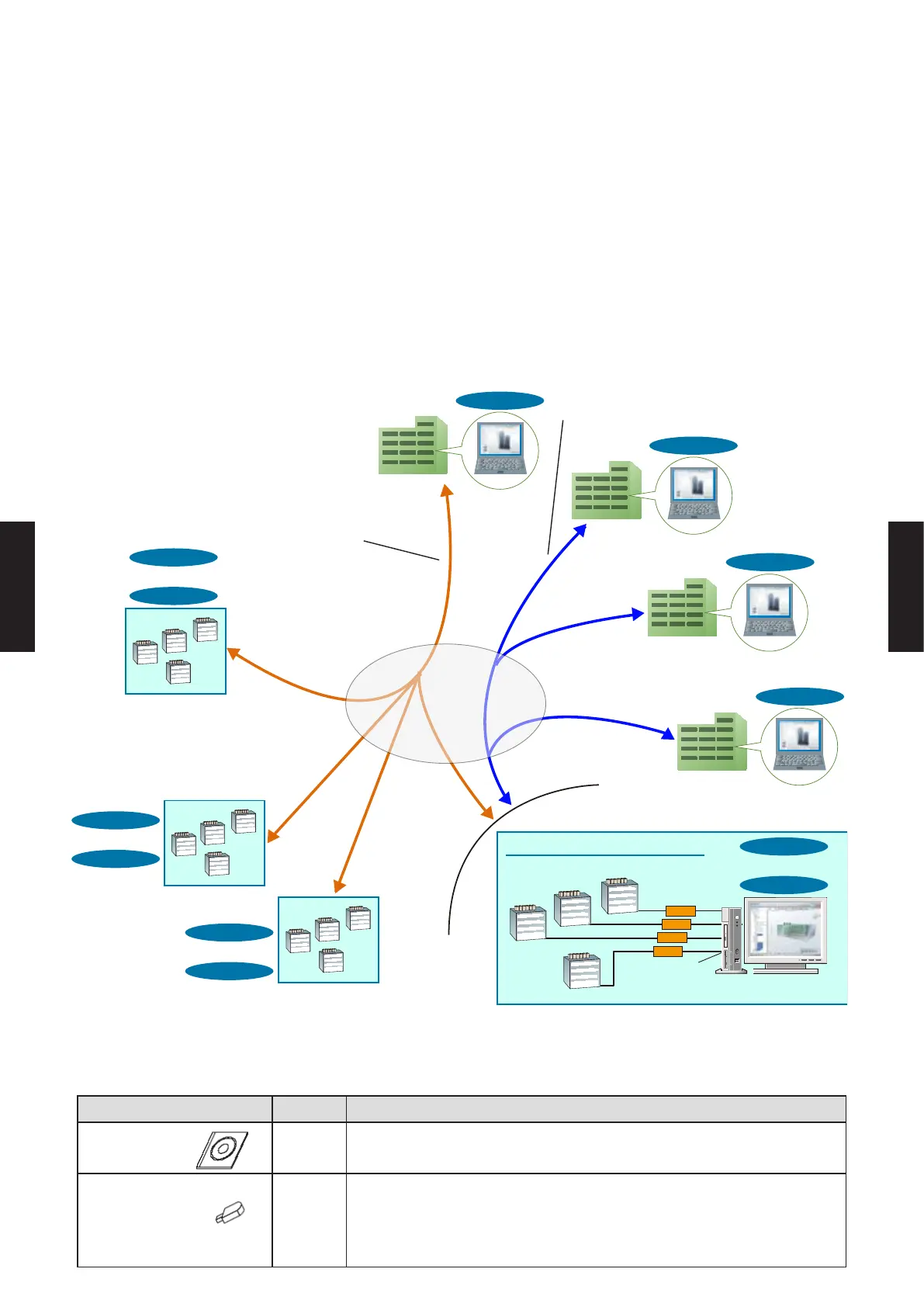

SYSTEM DIAGRAM
● System controller may be used on site or remotely over various networks for remote central
control.
● System controller consists of VRF Controller software and VRF Explorer software running
simultaneously.
● VRF Controller software runs in the background and communicate with VRF System.
● VRF Explorer software provides user interface and communicate with the VRF Controller.
● VRF Controller and VRF Explorer software may run in a single PC or in different PCs
separated by network.
● VRF Explorer software does not require Wibu key.

PACKING LIST
Name and shape Quantity Application
DVD-ROM
1
Includes the software and manuals for System Controller. Both VRF
Controller and VRF Explorer software are included.
Wibu Key
(Software
protection key)
1
Software protection key to be inserted in a USB slot running System
Controller. System Controller may only run on a PC with Wibu Key.
However, Wibu key is not required for remote
VRF Explorer
software.
VRF Controller
VRF Explorer
&
USB Adaptor
System Controller
On site control Max. 4 VRF network systems
USB Port
Internet
or
Telephone Line
or
LAN
VRF Explorer
VRF Explorer
VRF Explorer
VRF Explorer
VRF Controller
VRF Explorer
&
VRF Controller
VRF Explorer
&
VRF Controller
VRF Explorer
&
VRF Building 1
Building Management
Company A
(In charge of the day shift)
Remote centralized
control / maintenance
center
Remote control /
maintenance to
multiple buildings
Remote control /
maintenance from
multiple sites
Building Management
Company B
(In charge of the night shift)
Security Company
VRF Building 2
VRF Building 3
VRF Building n
●
●
●
