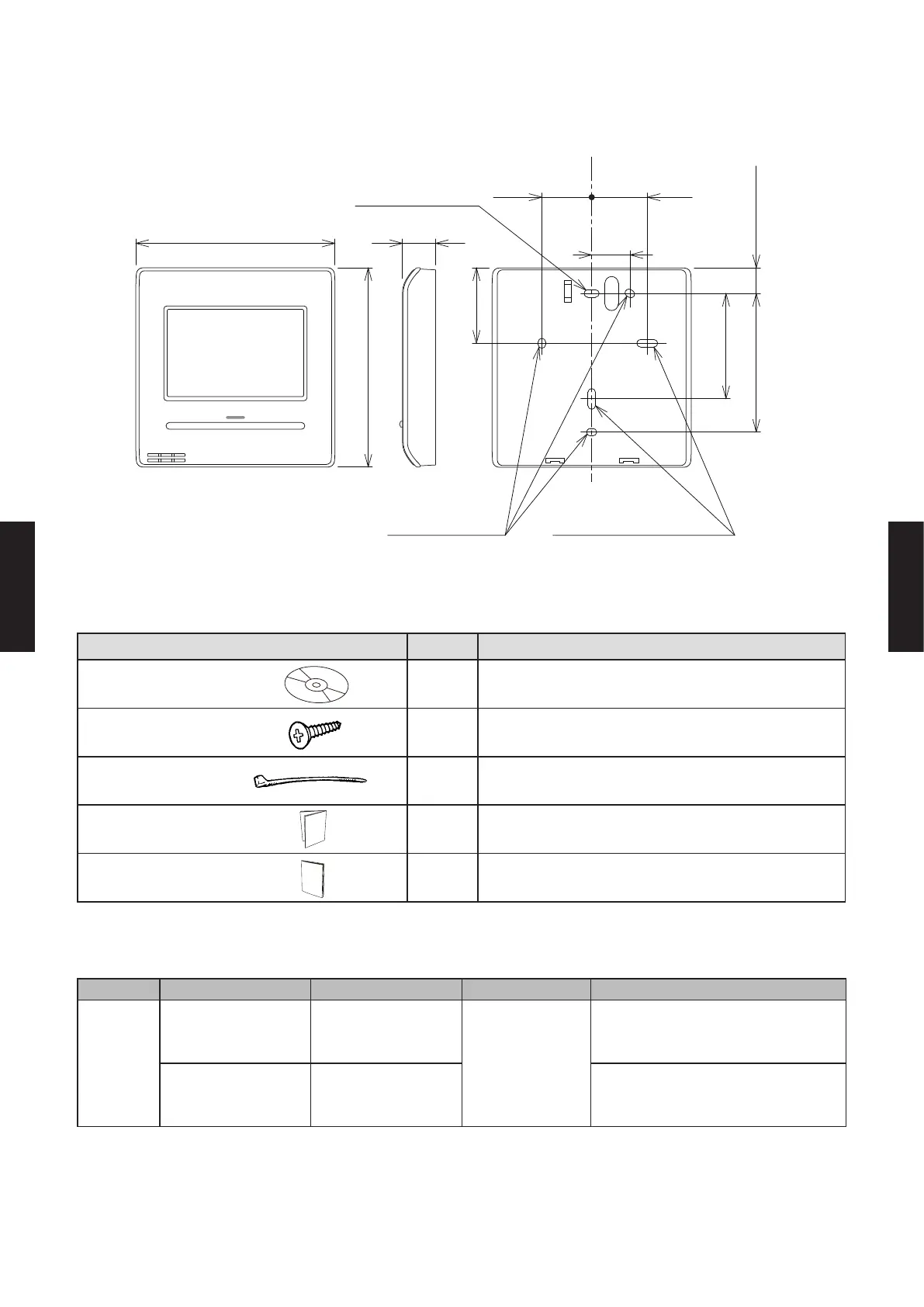

DIMENSIONS
Hole: 3/8 × 3/16
(9 × 4.5)
Hole: 1/4 × 3/16
(6 × 4.5)
Hole: 1/2 × 3/16
(12.5 × 4.5)
13/16 (20.4)
4-3/4 (120)
1-3/16 (30) 1-3/16 (30)
15/16 (23)
5/8 (15.3)
3-5/16 (83.5)
4-3/4 (120)
1-13/16 (45.3)
2-1/2 (63.5)
Unit : in. (mm)
PACKING LIST
Name and shape Quantity Application
CD-ROM
1
Screw
(M4 × 16 mm)
2
For installing the remote controller
Cable tie 1
For remote controller and remote
controller cable binding
Installation manual 1
Operating manual 1
WIRING SPECIFICATIONS
Use Cable size Wire type Model name Remarks
Remote
controller
cable
22AWG to 16AWG
(0.33 to 1.25
mm
2
)
Non polar 2 core
UTY-RNRYZ
UTY-RNRU
Use sheathed twisted pair cable
18AWG
Thermostat cable
2 core
Use sheathed non twisted pair
cable
- (05 - 62) -
CONTROL
SYSTEM
CONTROL
SYSTEM
