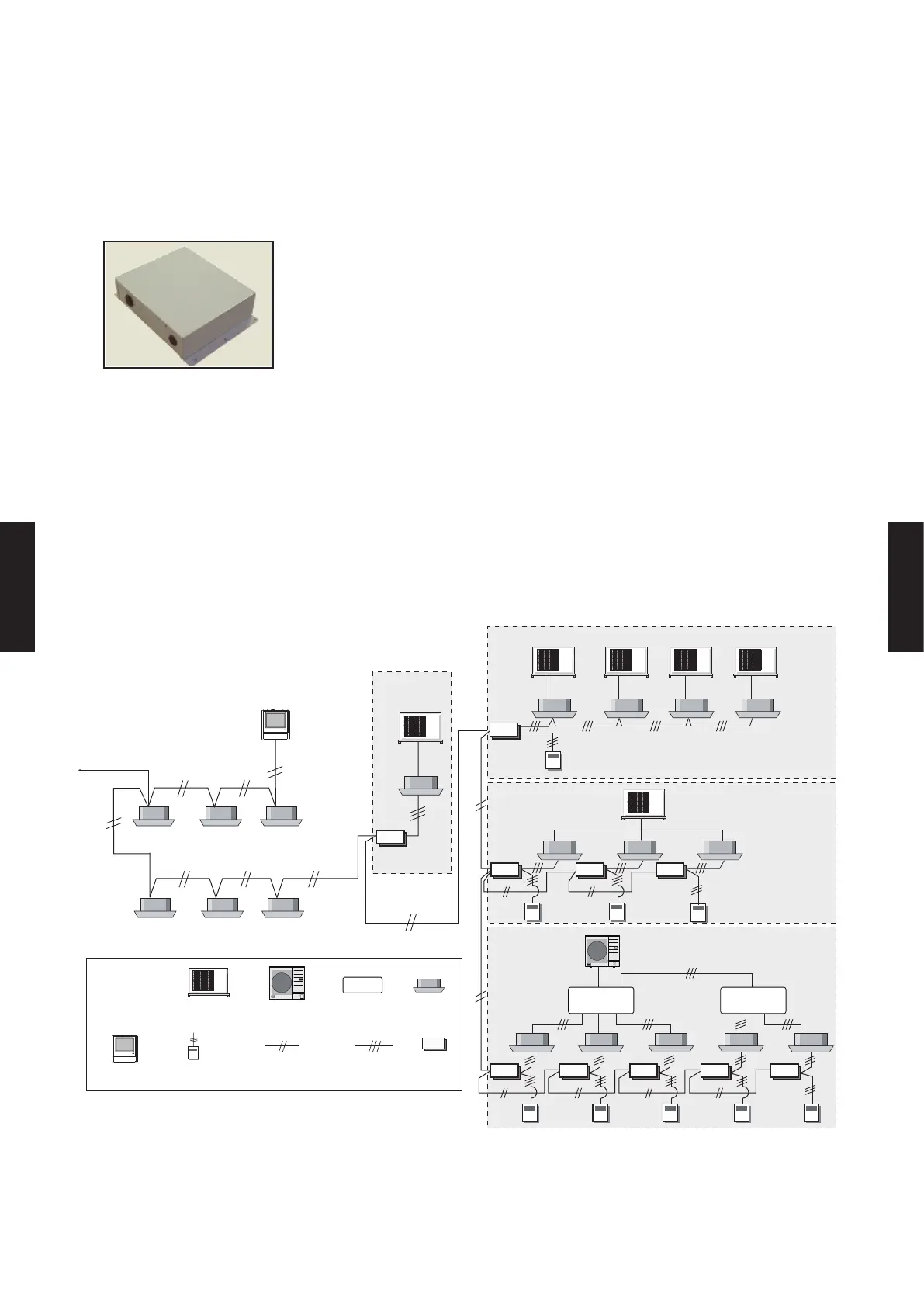

3-2. NETWORK CONVERTOR
MODEL: UTY-VGGX Z1
For connecting single split type system
[ A change of DIP switch setting is necessary]
FUNCTIONS
●Start/Stop ●Temperature control ●Operation mode ●Timer setting
●Fan control ●Central control (Lock the remote controller functions)
SYSTEM DIAGRAM
Group of Single Split System
*1
Single Split
System
VRF system
To outdoor
units
Multi System
*2
(2 to 4 rooms multi )
Multi System
*2
(8 rooms multi)
Outdoor unit for
single split / multi system
Outdoor unit for
Multi system
Branch box Indoor unit
Touch panel
controller
Wired remote
controller
Transmission line
(non-polar 2-conductor)
Remote
controller line
Network
convertor
*1 : All indoor units connected to a network convertor are operating under same status.
*2 : Network convertor is necessary for each indoor unit to control indoor unit individually.
● With this network convertor, single split type, multi system and HFI
system air conditioners can be controlled by Touch panel controller,
System controller in VRF network system or by wired remote controller
that is connected to the Network convertor.
● Start/Stop, operation mode, temperature setting, fan speed, etc. can be
done with these controllers.
● One Network convertor can be connected and controlled up to 16
indoor units.
● 2 wired remote controllers are possible for one network convertor.
● Up to 100 network convertors can be connected in one VRF network
system. (One Network convertor is regarded as one refrigerant system.
The total refrigerant systems in one VRF network system must be
within 100.)
- (05 - 122) -
