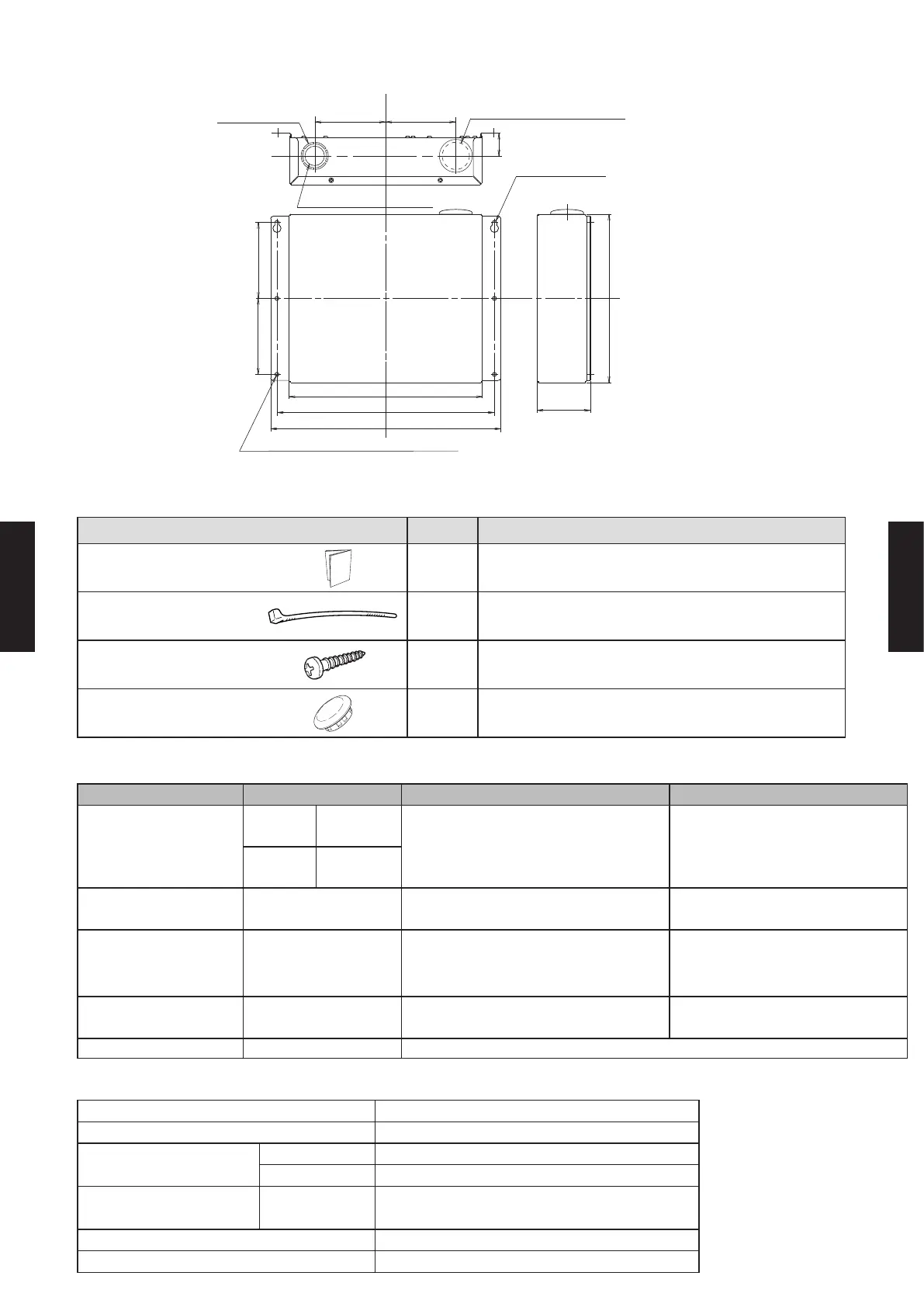

DIMENSIONS

PACKING LIST
The following installation parts are supplied. Use them as required.
Name and shape Quantity Application
Installation manual 1
Cable Tie 4 For securing controller cable.
Screw
(M4 × 20 mm)
4 For mounting the network convertor.
Dust proof brushing 1
For connecting the power supply cable. (Except in
U.S.A. and Canada)

WIRING SPECIFICATIONS
Use Size Wire type Remarks
Power supply cable
Maximum
16 AWG
(1.25 mm
2
)
60245 IEC 57 or equivalent
1 ø AC 208 - 240 V 50/60Hz,
2 Wire + ground
(Always ground the unit)
Minimum
20 AWG
(0.5 mm
2
)
Transmission cable
22AWG
(0.33 mm
2
)
LEVEL4 (NEMA) non-polar 2 core,
twisted pair solid core Shielded
L
ON
W
ORKS
®
compatible cable
Remote controller
cable
22AWG
(0.33 mm
2
)
Polar 3 core
Use sheathed PVC cable or
shielded cable in accordance with
the regional cable standard.
External input / output
cable
0.33 mm
2
(22AWG)
Polar 2core, Twisted pair
Use shielded cable in accordance
with the regional cable standard.
Fuse capacity 3 A

SPECIFICATIONS
Power supply 1ø AC 208 - 240 V 50/60 Hz
Input Power (W) 6.5
Temperature: °F (°C)
Operating 32 to 114.8 (0 to 46)
Packaged 14 to 140 (-10 to 60)
Humidity (%) Packaged
0 to 95 (RH) ;
No condensation
Dimensions [H × W × D]: in. (mm) 2-5/8 × 11-5/16 × 8-5/16 (67 × 288 × 211)
Weight: lbs. oz. (g) 3 lbs. (1,500)
8-5/16 (211)
9-1/2 (241.6)
11-5/16 (288)
2-Ø5 (3/16)
2-5/8
(67)
3-1/2
(89.5)
3-1/2
(89.5)
1-1/8
(29)
Ø1-1/8 (28)
For dust proof
bushing
4 - Ø3/16 (5) For M4x20mm screws
Ø 1-1/8(28)
For dust proof bushing
For M4x20mm
screws
10-11/16 (272) Hole pitch
Hole pitch
3-3/4 (95)3-3/4 (95)
Hole pitch
Ø7/8 (22.2) For conduit
Unit : in. (mm)
