z

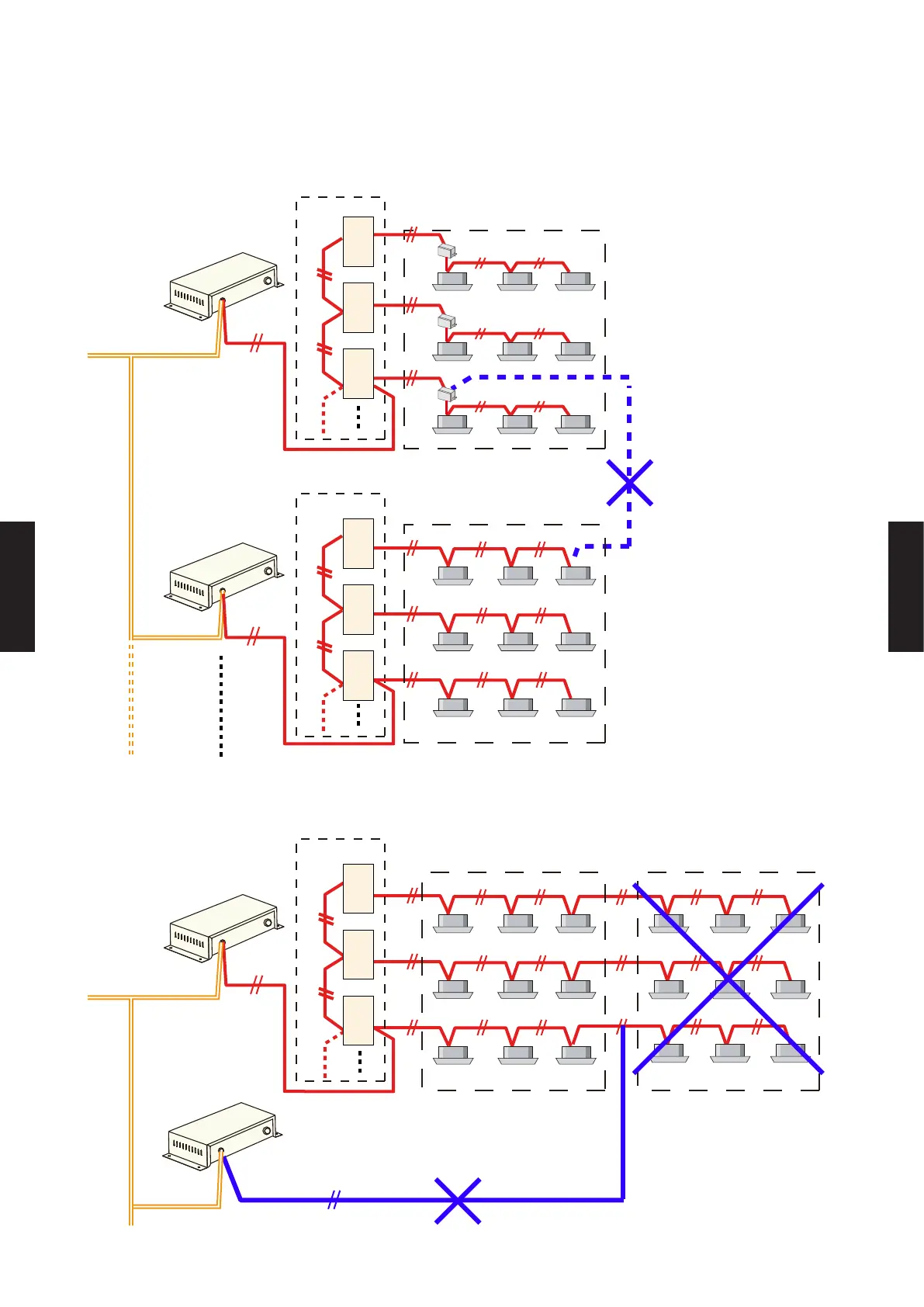

Improper system diagram
●
Example 1 (Prohibited)
Network
convertor for
L
ON
W
ORKS
®
(UTY-VLGX)
Network
convertor for
L
ON
W
ORKS
®
(UTY-VLGX)
L
ON
W
ORKS
®
Network
Maximum 128
indoor units
Maximum 100
outdoor units
Maximum 100
outdoor units
Maximum 128
indoor units
VRF network system 1
VRF network system 2
●
Example 2 (Prohibited)
Maximum 128
indoor units
Maximum 128
indoor units
Network
convertor for
L
ON
W
ORKS
®
(UTY-VLGX)
Network
convertor for
L
ON
W
ORKS
®
(UTY-VLGX)
L
ON
W
ORKS
®
Network
Maximum 100
outdoor units
- (05 - 136) -
CONTROL
SYSTEM
CONTROL
SYSTEM
