Fujitsu Airstage J-II Series User Manual



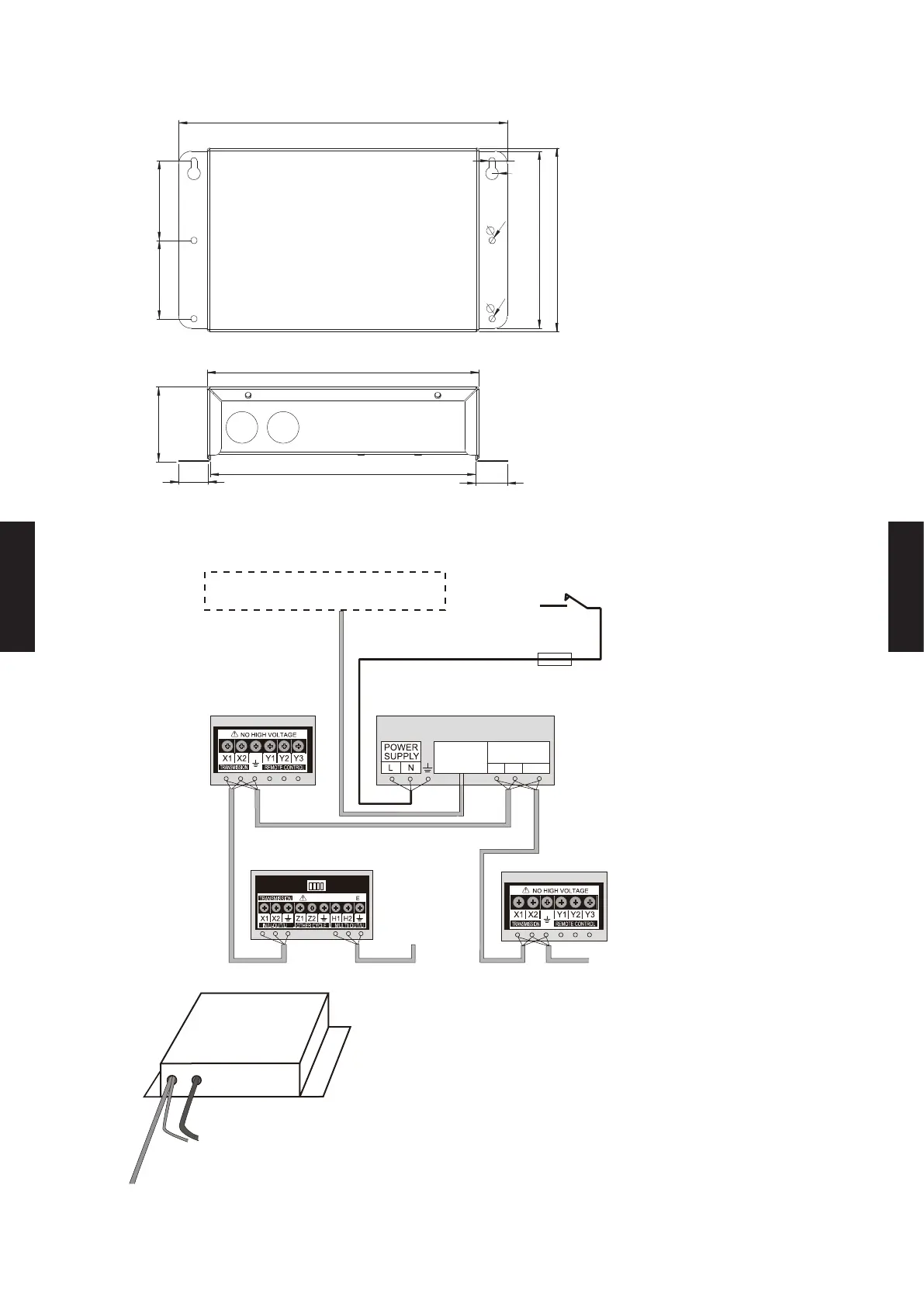

DIMENSIONS
2-3/8(59.6)
15/16(23.3)
8-11/16(220)
1(25.2)
5
3-1/16(77.5)
6-15/16(176)
3-1/16(77.5)
R2.5
10-5/8(270.4)
8-7/8(225.4)
R5
5
6-11/16(170)
Unit : in.(mm)

ELECTRICAL WIRING
NOTES:
● Do not bind the power cable and transmission cable to avoid an
erroneous operation.
● Use shield cable for transmission cable. The shield metal should be
grounded.
● Do not forget to ground the BACnet
®
Gateway.
FUSE (1.25 A)
OUTDOOR UNIT
SWITCH
TRANSMISSION CABLE
TRANSMISSION
CABLE
General purpose building control computer
(BMS)
POWER SUPPLY CABLE
MASTER
OR
SLAVE
OUTDOOR
UNIT
1Φ 50/60 Hz
208-240 V
BACnet
®
Gateway
INDOOR UNIT
INDOOR UNIT
C2
RJ45
A B SGND
Power supply
BACnet
®
Gateway
BACnet
®
Gateway
Ethernet cable to BMS
- (05 - 157) -
CONTROL SYSTEM CONTROL SYSTEM
