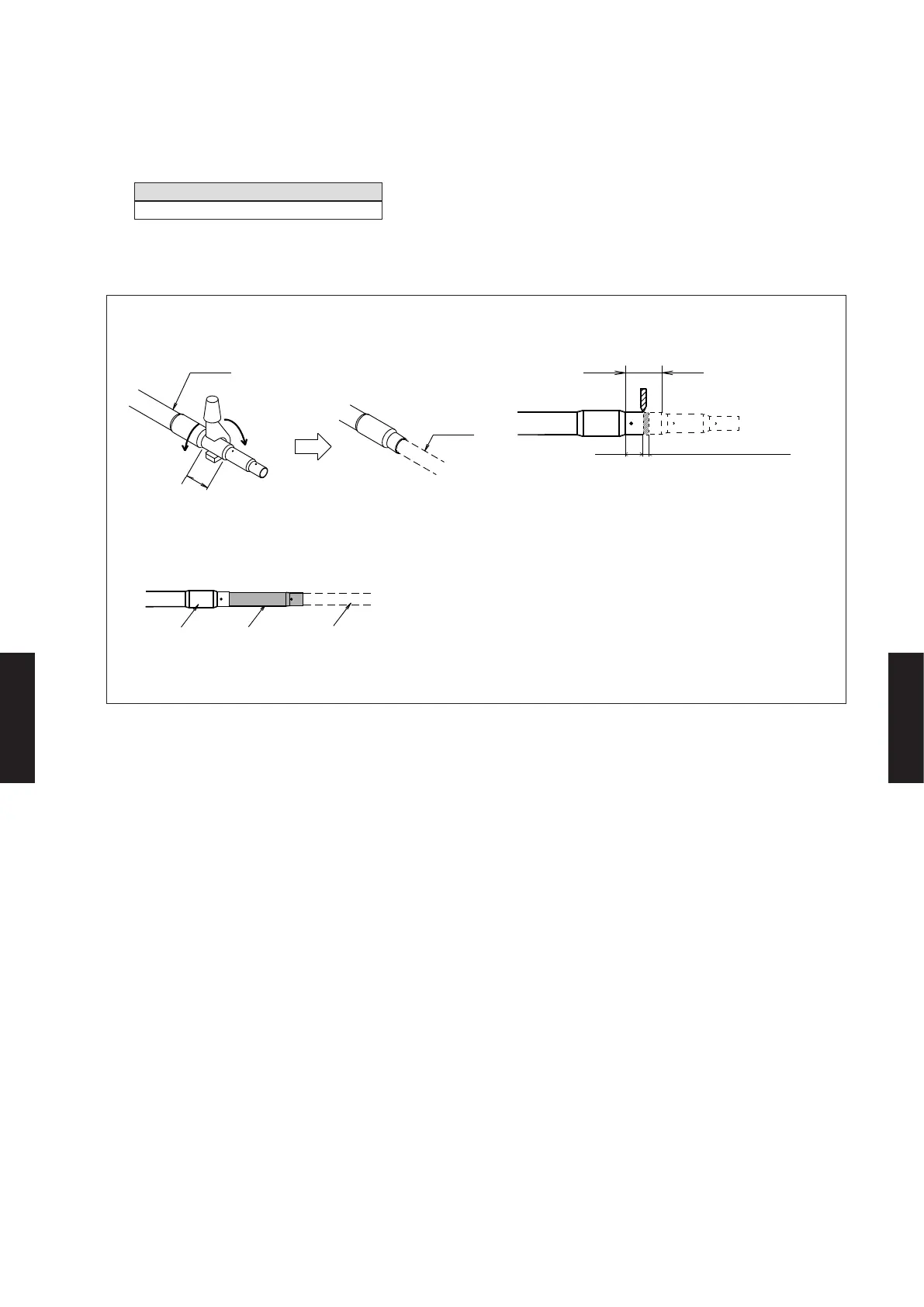

3-3. SEPARATION TUBE

INSTALLATION
z
Separation tube
Separation tube
UTP-AX090A
z
Installation
L
1/2L
0 to 1/8 in. (0 to 3 mm)
Connections
Field pipe
Joint pipe (Separation tube)
Joint pipe
(Separation tube)
Field pipe
Reducer or
Expander
Select the connections with the pipe diameters that match the selected pipe sizes from the
separation tubes, and cut them with a pipe cutter.
When the pipe size of the separation tube itself does not match, or when piping sizes di󰀨er
even if it cuts the pipe, use attached Reducer or attached Expander.
Standard cutting position:
1/2L
+1/8
-0
in. (1/2L
+3
-0
mm)
NOTE: Insert the eld pipe rmly until it touches the joint pipe (Separation tube).
- (06 - 31) -
SYSTEM DESIGN SYSTEM DESIGN
