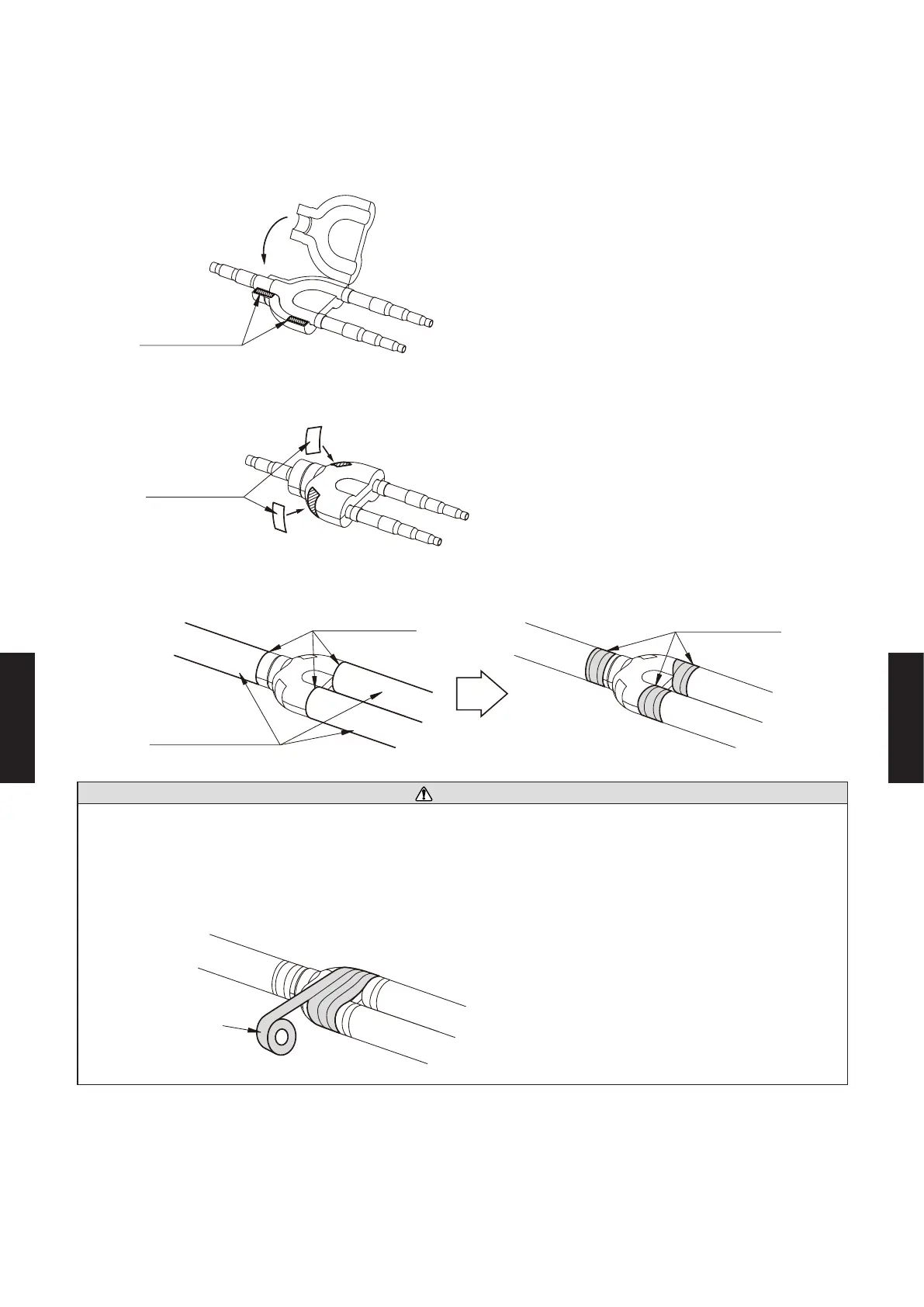

Heat insulation installation
After brazing the pipes, and leak check use the supplied insulation to insulate them.
1) Remove the protective sheet from the double-stick tape that is axed to the heat insulation.
Double-stick tapes
2) Be sure to install the tape (accessory) in each heat insulation to the 2 positions as shown in
the following gure.
Tapes (accessory)
3) Use tape (Locally purchased) to seal the seam so that there will be no gap at the junction
between the aforementioned heat insulation and the heat insulation on the local piping.
Insulations (Locally
purchased)
Contact each other
Tapes (Locally purchased)
CAUTION
● Insulate the liquid and gas pipe completely. If not, it may cause the water condensation or performance reduction.
● Wrap the heat insulation with tape or pipe cover in order to extend the life time of heat insulation.
● Take proper measurement to strengthen by using another heat insulation at the following installing environment.
(a) Environment temperature ≥ 95°F (35°C) and humidity 85%.
(b) Environment temperature ≥ 77°F (25°C) and humidity 90%.
Installation example
Heat insulation
(Locally
purchased)
- (06 - 33) -
