HIGH STATIC PRESSURE DUCT TYPE
z
Models : ARUH36, ARUH48, ARUH60

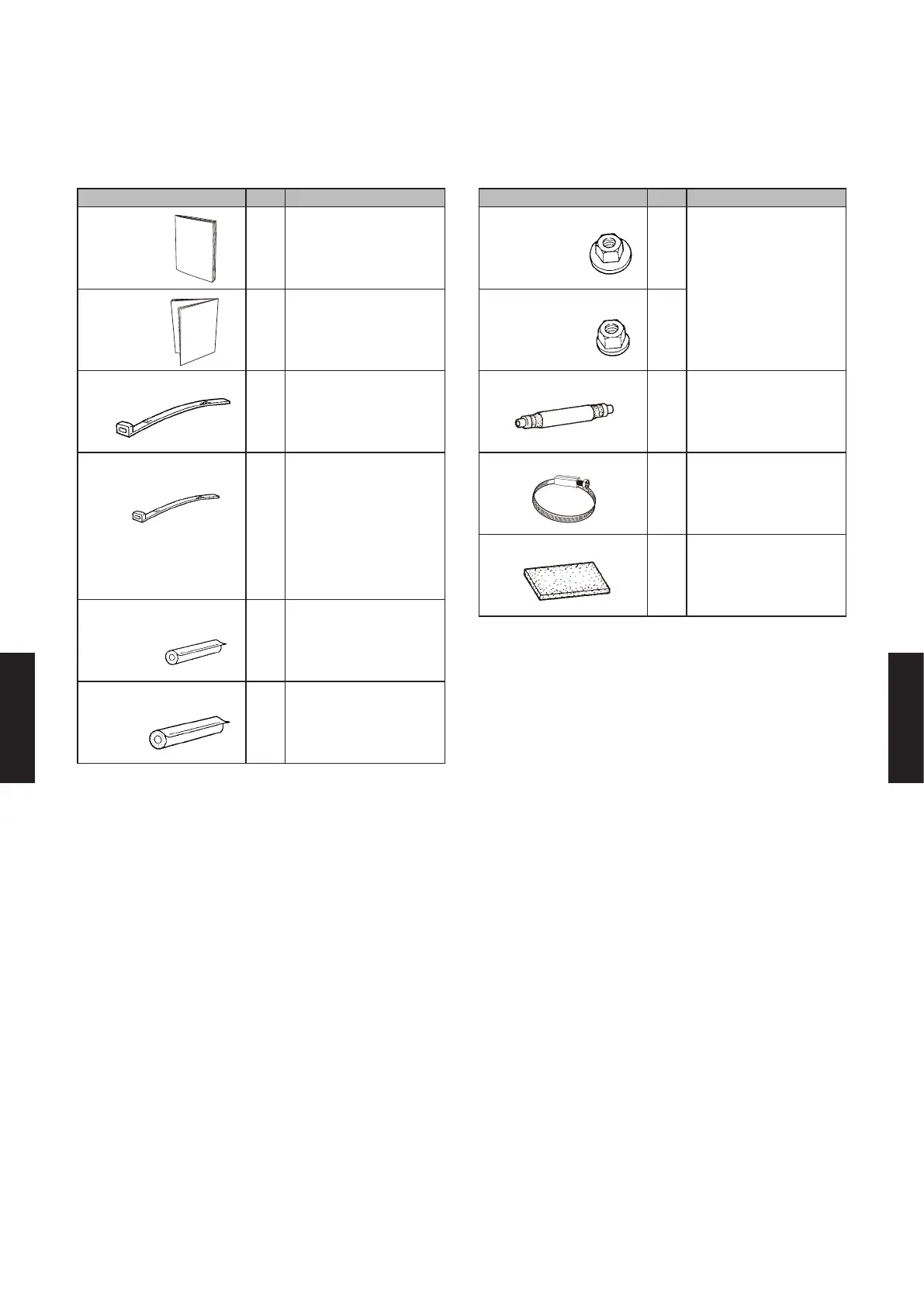

Name and shape Q'ty Application
Operating
manual
1
Installation
manual
1
Cable Tie(s)
(Large)
4
For securing the
refrigerant connection
pipes.
Cable Tie(s)
(Medium)
3
For securing the power
supply, transmission
cable and remote control
cable. Do not run power
cable and transmission
cable together, electrical
interference will cause
communication errors.
Pipe Insulation
(Small)
1
For indoor piping
connection
(Liquid pipe)
Pipe Insulation
(Large)
1
For indoor piping
connection
(Gas pipe)
Name and shape Q'ty Application
Special nut A
(Large ange)
4
For suspending the
indoor unit from ceiling
Special nut B
(Small ange)
4
Drain hose
2
For connecting drain
hose.
Hose band
2
For installing drain hose
Drain hose insulation
2
For installing drain hose
