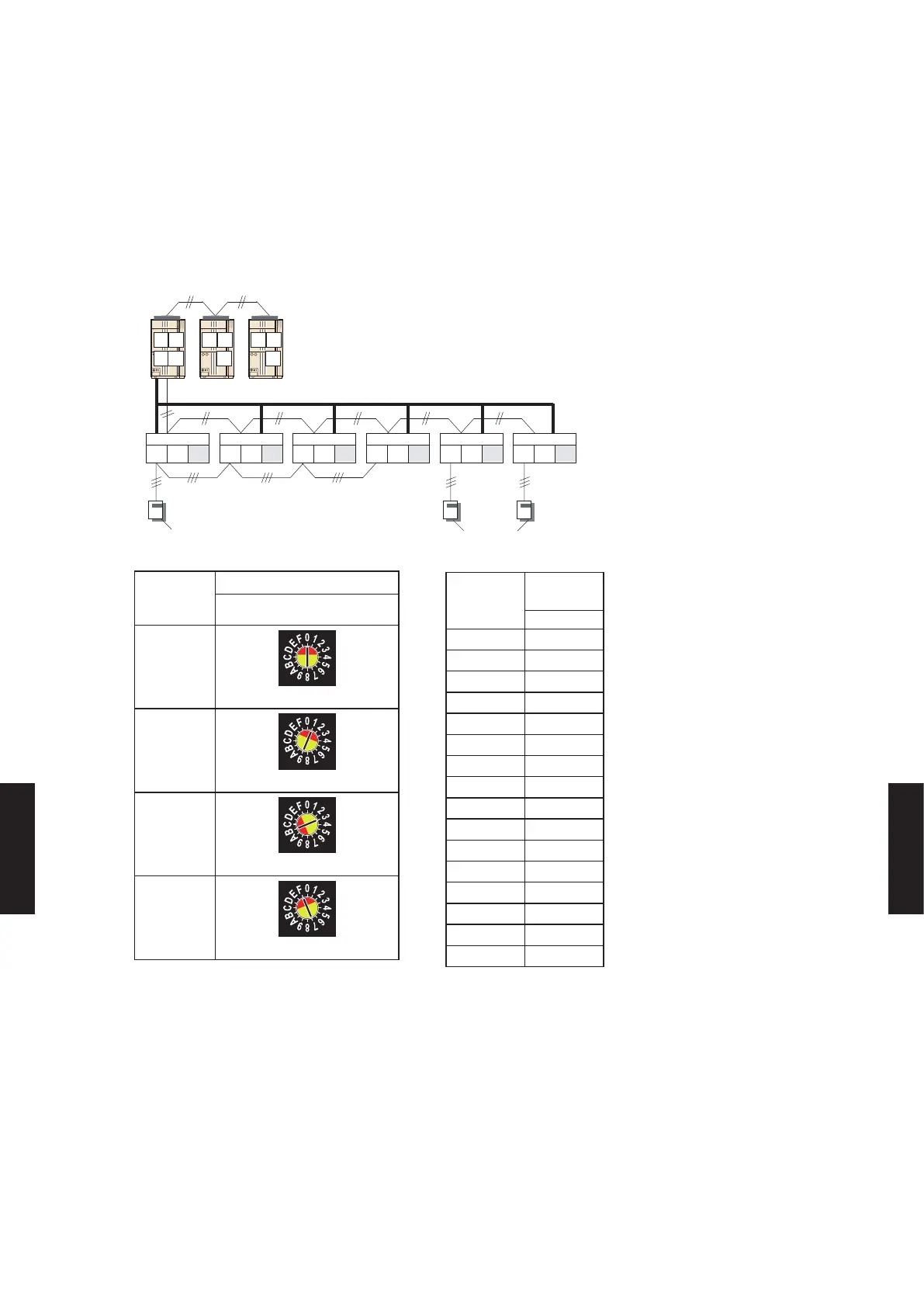

Remote controller address (Set F)
One individual remote controller can control up to a max of 16 indoor units with a connecting
cable.
All units connected to the same remote control area considered a remote control group.
i) 3 wire type
Only for manual address setting
00 01 0200 00 000 1 2 03 04 0500 00 003 0 0
*1
3 wire type R.C.
R.C.line: 3 wire
3 wire type R.C.
*2 *2
000
2 3
100
3
200
3
Remote
controller
address
Rotary SW setting
RC AD
0
0
1
1
11
B
15
F
*
1 : Set the remote controller address in the order of 0,1,2, . . . ,15.(Blank is not allowed)
*2 : For units without a connected remote controller, make sure that the remote controller address is set to “0”
(factory setting).
ii) 2 wire type
Addresses will be automatically set when initially starting up this unit. In such a case, do not
change the remote controller address for the indoor unit, and keep it at the initial setting of 0.
Remote
controller
address
Rotary SW
setting
RC AD
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 A
11 B
12 C
13 D
14 E
15 F
