COMPLETION OF ADDRESS SETTING MODE
(21) Press and hold the “MANUAL/AUTO ”
button for 3 seconds.
Pi Pi Pi
MANUAL
AUTO
MANUAL AUTO
IR RECEIVER UNIT
¾
Each LED may be of a di󰀨erent brightness, but the content
of the message does not change.
(22) Press the “RESET” button.
RESET
After pressing the RESET
button, set the custom code
again if b,c,d setting.
¾
The address setting signal is not received after switched address setting completion mode. (Pi Pi Pi Pi Pi)
¾
Press the "MANUAL/AUTO " button again for 3 sec to return to if required to return to the address
setting mode.


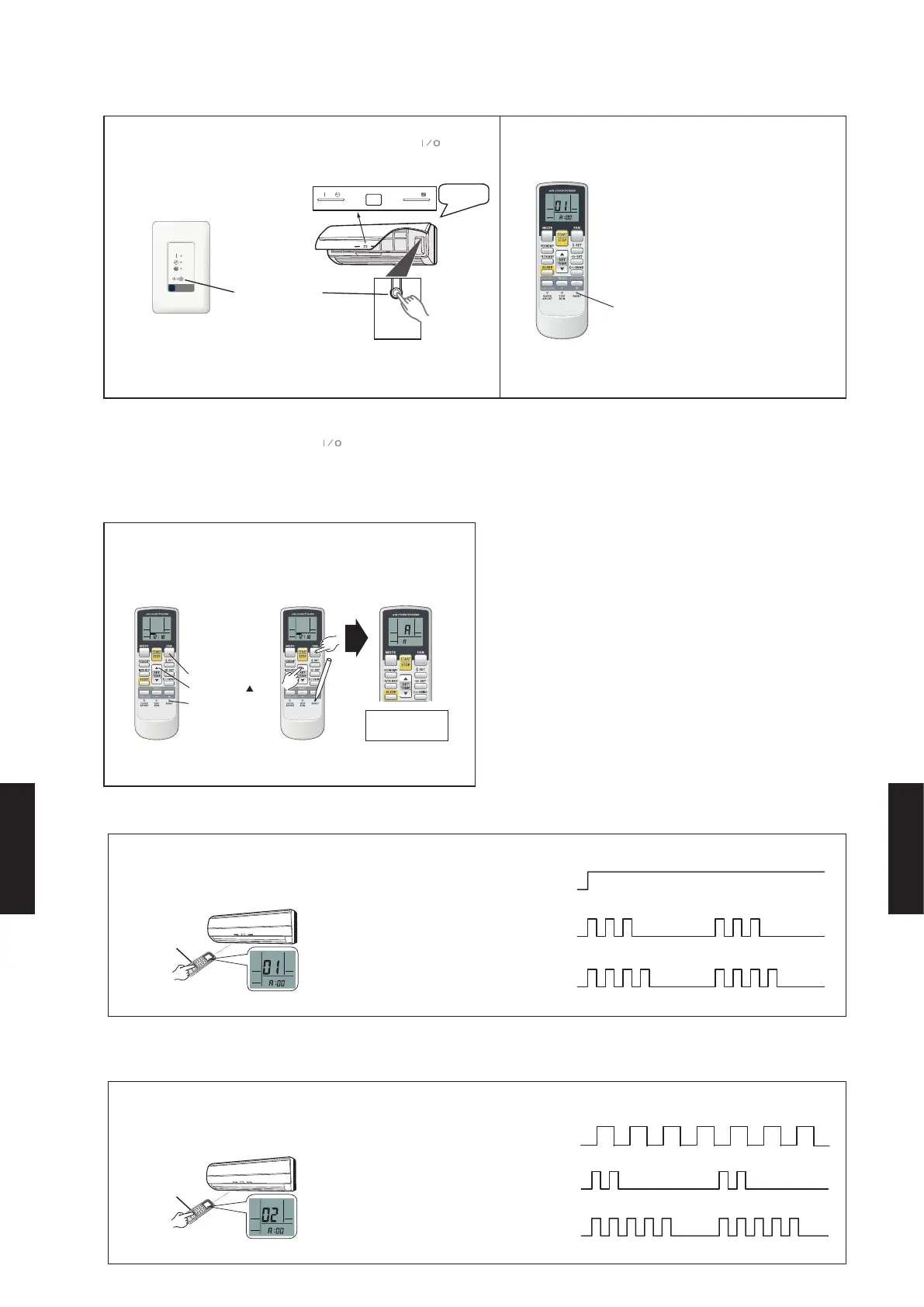

RECONFIRMATION OF ADDRESS SETTING
(23) Press and hold the “FAN” and the “ SET
T E M P.
p
” buttons. While holding these 2
buttons, press the "RESET" button.
SET TEMP. ( )
RESET
FAN
Function setting
mode display
z
INDOOR UNIT ADDRESS SETTING
(24) Make sure the function number is "01"
Refer to (8)
Press the “TIMER set (-)” button.
"TIMER set (-)"
z
REFRIGERANT CIRCUIT ADDRESS SETTING
(25) Make sure the function number is "02"
Refer to (15)
Press the “TIMER set (-)” button.
"TIMER set (-)"
(Example) ADDRESS : 34
OPERATION LAMP
(GREEN)
TIMER LAMP
(ORANGE)
FILTER LA MP
(RED)
0.5sec ON / 0.5sec OFF
4 times
3 times 1 - 10 sec
1 - 10 sec
0.5sec ON / 0.5sec OFF
(Example) ADDRESS : 25
OPERATION LAMP
(GREEN)
TIMER LAMP
(ORANGE)
FILTER LA MP
(RED)
0.5sec ON / 0.5sec OFF
1sec ON / 1sec OFF
5 times
2 times 1 - 10 sec
1 - 10 sec
0.5sec ON / 0.5sec OFF
- (07 - 21) -
FUNCTION SETTING FUNCTION SETTING
