COMPLETION OF ADDRESS SETTING MODE

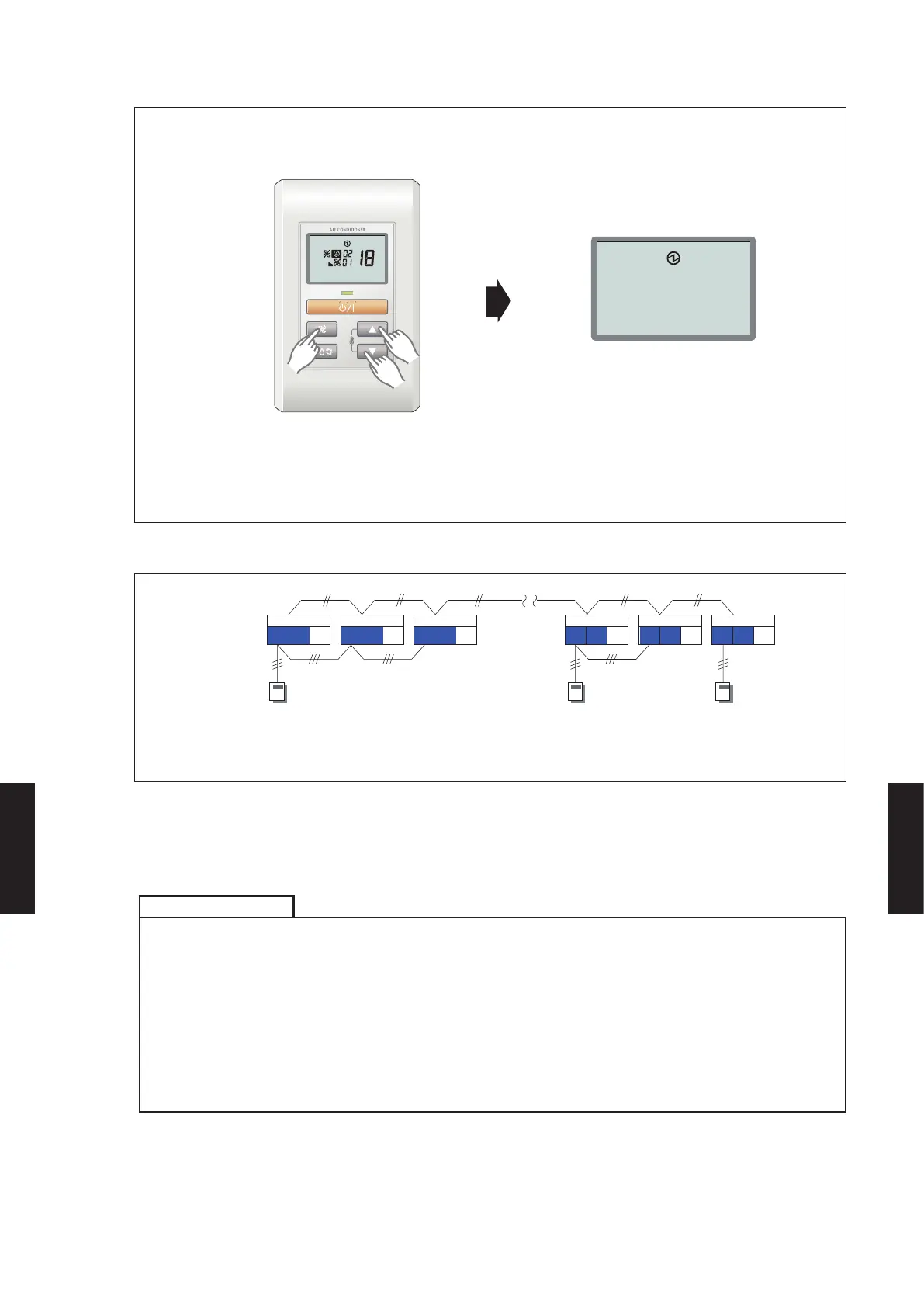

13) Press the three buttons of SET TEMP.
p
, SET TEMP.
q
and FAN at the same time for 5
seconds or longer. The address setting mode will be cleared and the regular display will
be restored.
Normal mode display
¾
If no key entry is made for 60 seconds, even though none of the above buttons is
pressed, the address setting mode will automatically be cleared.
(If the address setting mode is automatically cleared while setting addresses,
activate the mode again according to the procedure in step 4) above.)
SETTING UP EACH INDOOR UNIT
0001 0101 0201 1301 1401 15010 1 2 0 1 0
Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit
Repeat the procedures in steps 1) through 13), and set up the indoor units
requiring address setting.
Simple remote
controller
Simple remote
controller
Simple remote
controller
RESET THE POWER AFTER SETTING UP ADDRESS OF ALL
INDOOR UNITS
Important
¾
If the reset is not performed, address cannot be read in normal operation.
¾
After all the addresses have been set, the circuit breaker needs to be switched o
for at least 2 minutes.
After the 2 minutes has passed, power can be restored.
¾
The set address is stored in the PCB and will remain in memory even when the
power is turned o.
However, the address can be reset after power reset (if needed).
Record the address set in the indoor unit on a label, etc., and ax the label to the
unit so it can be used for after-sales service operations.
