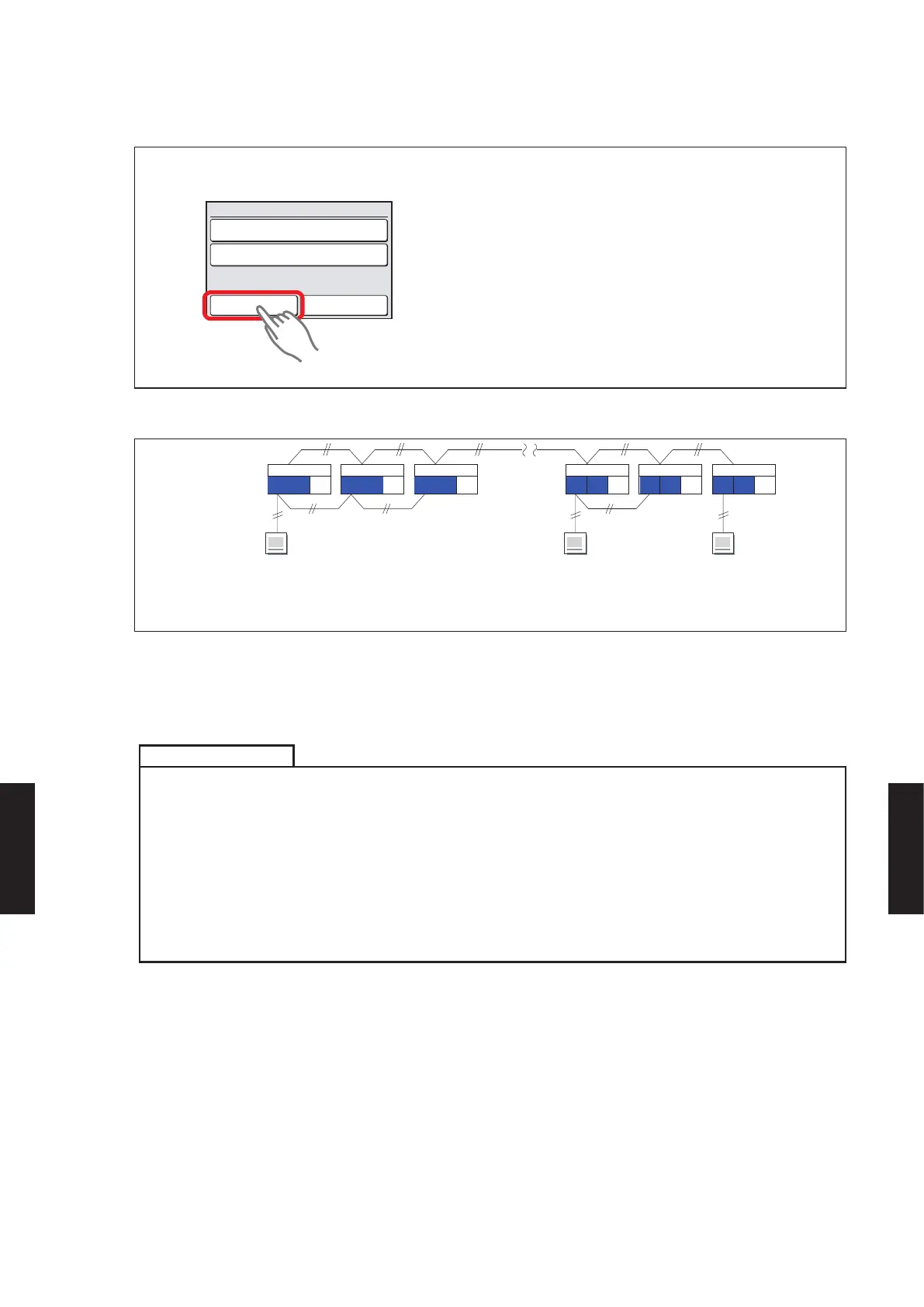

COMPLETION OF FUNCTION SETTING MODE
11) When the [Back] on the “Function Setting” screen is touched, the display returns to the
“Maintenance” screen.
[002–01]
[30]
[01]
Address
Function No.
Setting No.
Function Setting
Back Setting
SETTING UP EACH INDOOR UNIT
0001 0101 0201 1301 1401 15010 0 0 0 0 0
Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit
Repeat the procedures in steps 1) through 11), and set up the indoor units
requiring address setting.
Wired remote
controller
(Touch panel)
Wired remote
controller
(Touch panel)
Wired remote
controller
(Touch panel)
RESET THE POWER AFTER SETTING UP ADDRESS OF ALL
INDOOR UNITS
Important
¾
If power is not reset, address will not read correctly.
¾
After all the addresses have been set, the circuit breaker needs to be switched o
for at least 2 minutes.
After the 2 minutes has passed, power can be restored.
¾
The set address is stored in the PCB and will remain in memory even when the
power is turned o.
Address setting will only be eective after power has been reset.
Record the address set in the indoor unit on a label, etc., and ax the label to the
unit so it can be used for after-sales service operations.
