1-2-6. DETAILS OF FUNCTION

CONTROL INPUT FUNCTION

-1: Operation/Stop mode
●

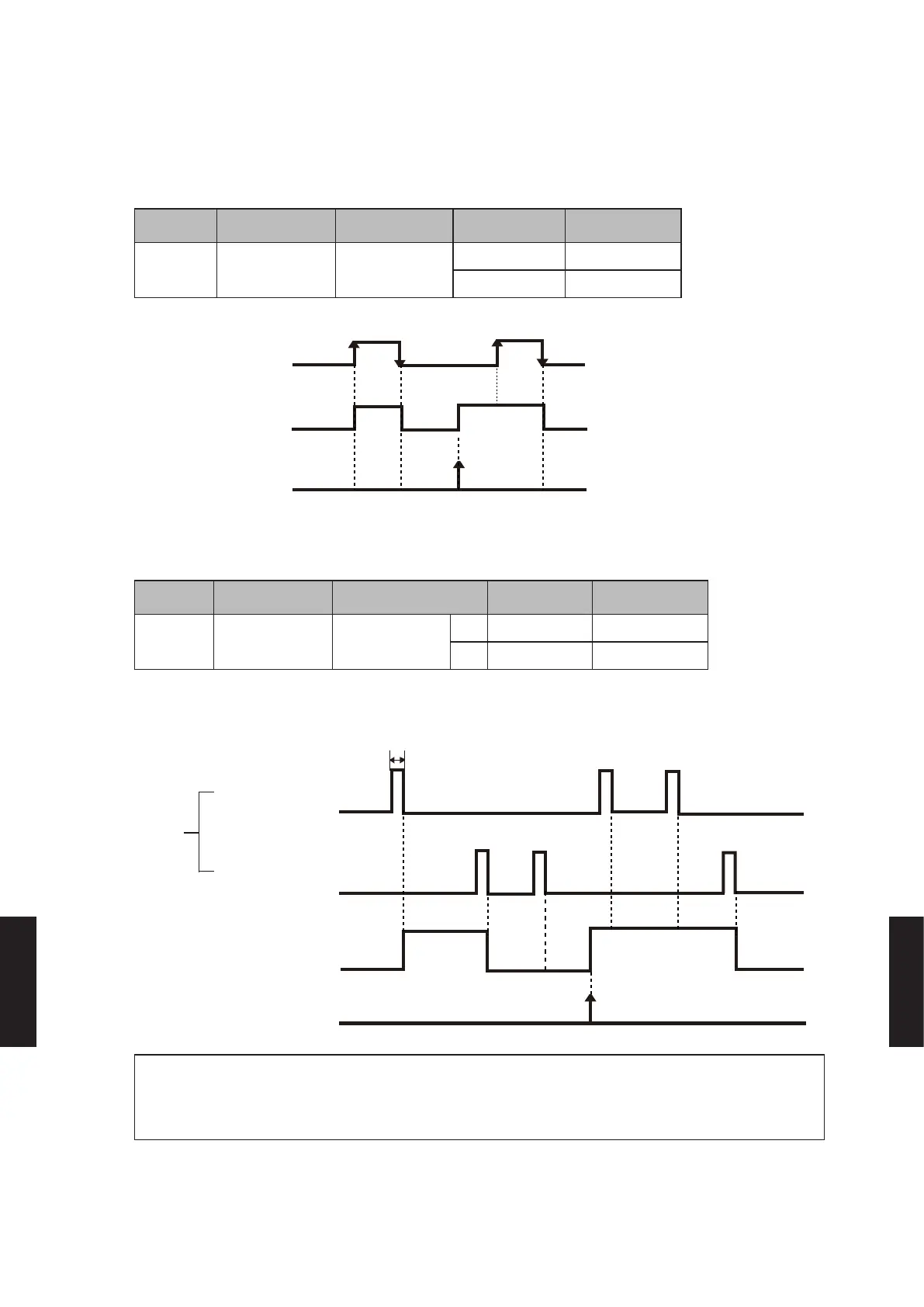

In the case of "Edge" input
Function
setting
Dip-SW External input Input signal Command
46-00
SET2-2: OFF
(Factory setting)
CNA01 or CNA02
(EXT.IN1)
OFF → ON Operation
ON → OFF Stop
CNA01 or
CNA02
Remote
Controller
Indoor unit
Operation
On
On
Off
Stop
●
In the case of "Pulse" input
Function
setting
Dip-SW External input Input signal Command
46-00 SET2-2: ON
CNA01 or CNA02
(EXT.IN1)
Ch1 OFF → ON Operation
Ch2 OFF → ON Stop
Operation
On
On
The width of pulse must be longer than 200 msec.
Off
Off
Stop
CNA01
or
CNA02
Ch1 input
Ch2 input
Remote
Controller
On
Indoor unit
NOTES :
● The last command has priority.
● The indoor units within the same remote controller group operates in the same mode.
- (08 - 14) -
