197
Before installation
XVIII
Before installation
Components

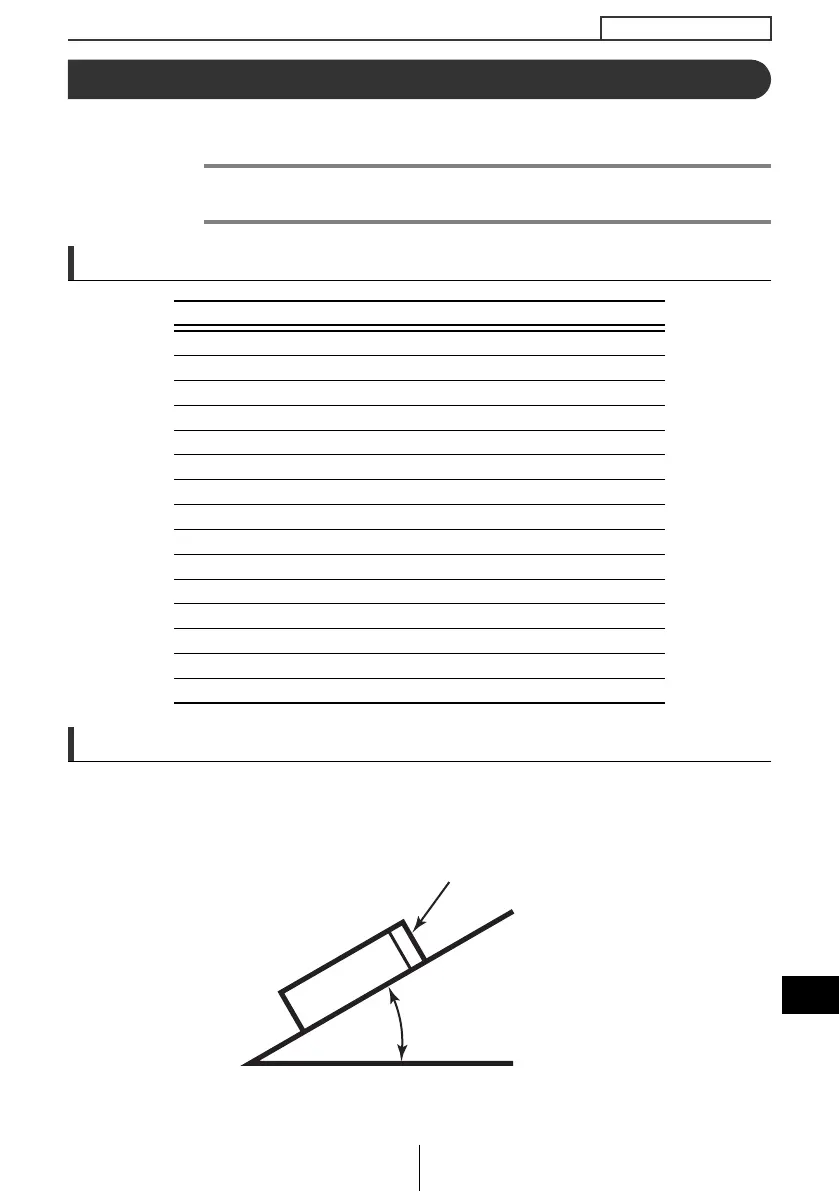

Installation angle
In order to maintain proper functioning, install the unit within an angle of 30
degrees from horizontal (standard). If this is not done, sound skipping or
ejection of the CD may occur.
● Note ●
Be sure to disconnect the vehicle battery's negative terminal
before installing the receiver.
No. Item Q'ty
1 Main unit 1
2 Mounting sleeve 1
3 Side bracket 2
4 Rear bracket 1
5 Bezel 1
6 Bushing 1
7 Self-tapping screw (6 x 16 mm) 1
8Stud bolt 1
9 Flat head screw (red: 5 x 8 mm) 4
10 Hex-head bolt (red: 5 x 8 mm) 4
11 Hex-head bolt (6 x 20 mm) 1
12 Hex nut (5 mm) 1
13 Hex nut (6 mm) 1
14 Interconnecting cable 1
15 Remote control 1
FRONT
STANDARD
WITHIN AN ANGLE
OF 30 DEGREES
CD8445.book 197 ページ ２００４年１２月１３日 月曜日 午前１１時３０分
