Mounting instruction
XIX
Mount the stud bolt to the main unit.
Insert the main unit into the mounting sleeve until it
locks in place.
Fasten the rear of the main unit using either method [A]
or [B].
Some automobiles may be equipped to secure the back of the main
unit using the stud bolt and supplied rubber support.
Select method [A] or [B] to suit the interior configuration of the
vehicle.
Install the bezel on the main unit.

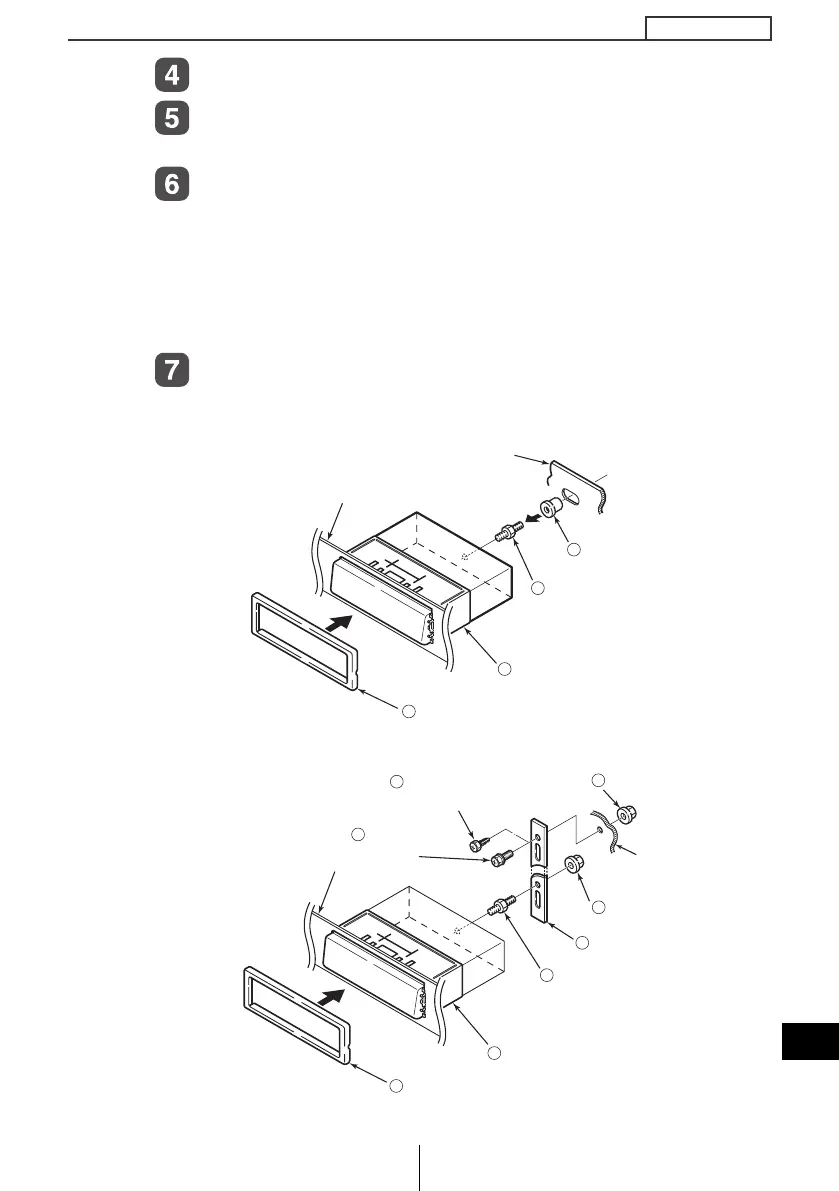

[A]
[B]
TOP
TOP
BEZEL
5
MOUNTING SLEEVE
2
STUD BOLT
8
BUSHING
METAL OF
VEHICLE
DASH BOARD
OR CONSOLE BOX
6
TOP
TOP
BEZEL
5
MOUNTING SLEEVE
2
STUD BOLT
8
REAR BRACKET
4
SELF TAPPING
SCREW (6 x 16mm)
DASH BOARD
OR CONSOLE BOX
7
NUT (5mm)
METAL OF
VEHICLE
12
NUT (6mm)
HEX-HEAD
BOLT
(6 x 20mm)
11
13
