Mounting instruction

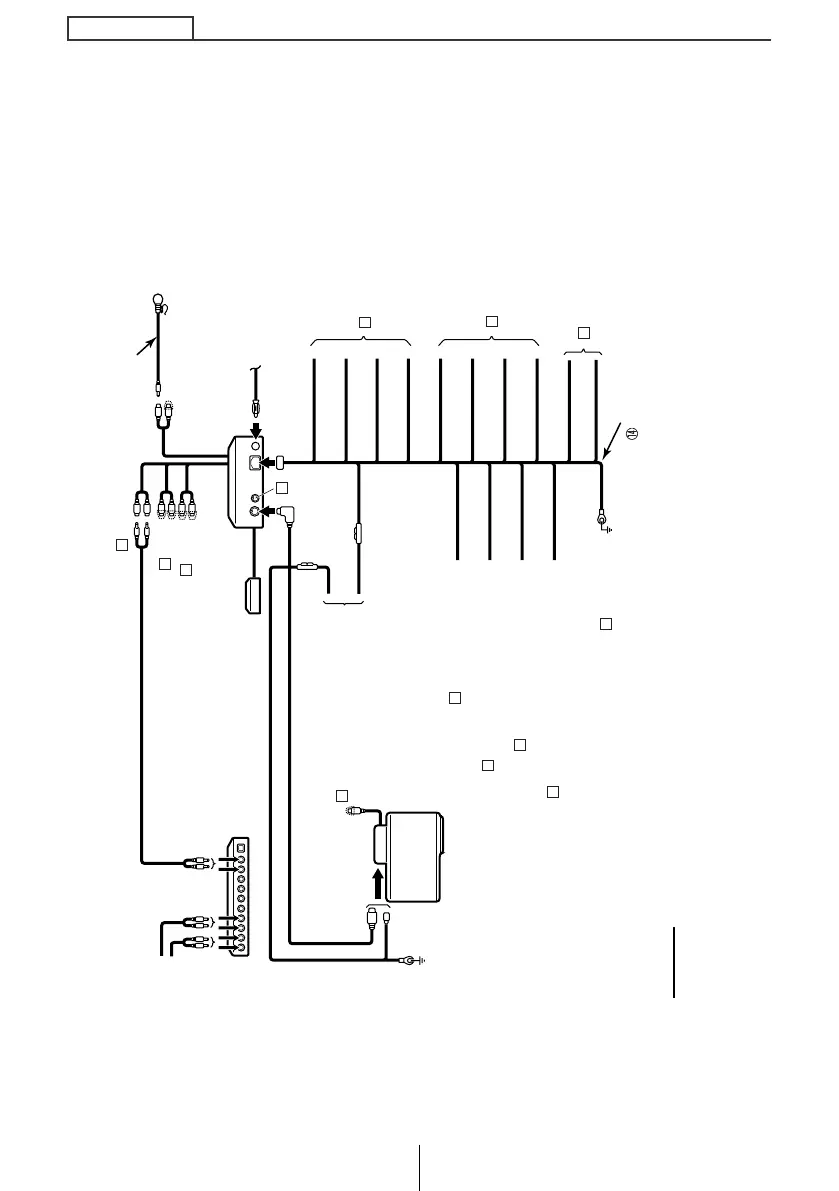

5) CD8445 + CH3083 + 21010 + VRM803 + Power Amplifier
Caution
Never connect the power supply to the speaker leads, otherwise it causes damage to the main unit.
VRM803
L SIDE
R SIDE
NON-FADER
TO SIGNAL INPUT
OF AUXILIARY
POWER AMPLIFIER
CD8445
White(+)
White/Black(-)
Gray(+)
Gray/Black(-)
Green(+)
Green/Black(-)
Purple/Black(-)
Brown
TO STEERING REMOTE CONTROL
Brown/Black
Red
Yellow
Blue
Orange/White
Blue/White
TO ACC (Power supply)
TO POWER ANTENNA RELAY (supply)
TO HEAD LIGHT SWITCH (supply)
TO TURN ON LEAD OF EACH UNIT (supply)
TO GROUND
INTERCONNECTING CABLE
16P
10
13
1
3
4
6
5
13P
14
21010
CH3083
2P
INSULATE EACH
WIRE WITH TAPE
11
INSULATE EACH
WIRE WITH TAPE
11
ANTENNA PLUG
13P
TO BATTERY+12V (Permanent supply)
2
Purple(+)
Black
REAR
FRONT
9
8
