System expansions
Installing and removing an acce
ssible slimline
drive in the upper bay (optional)

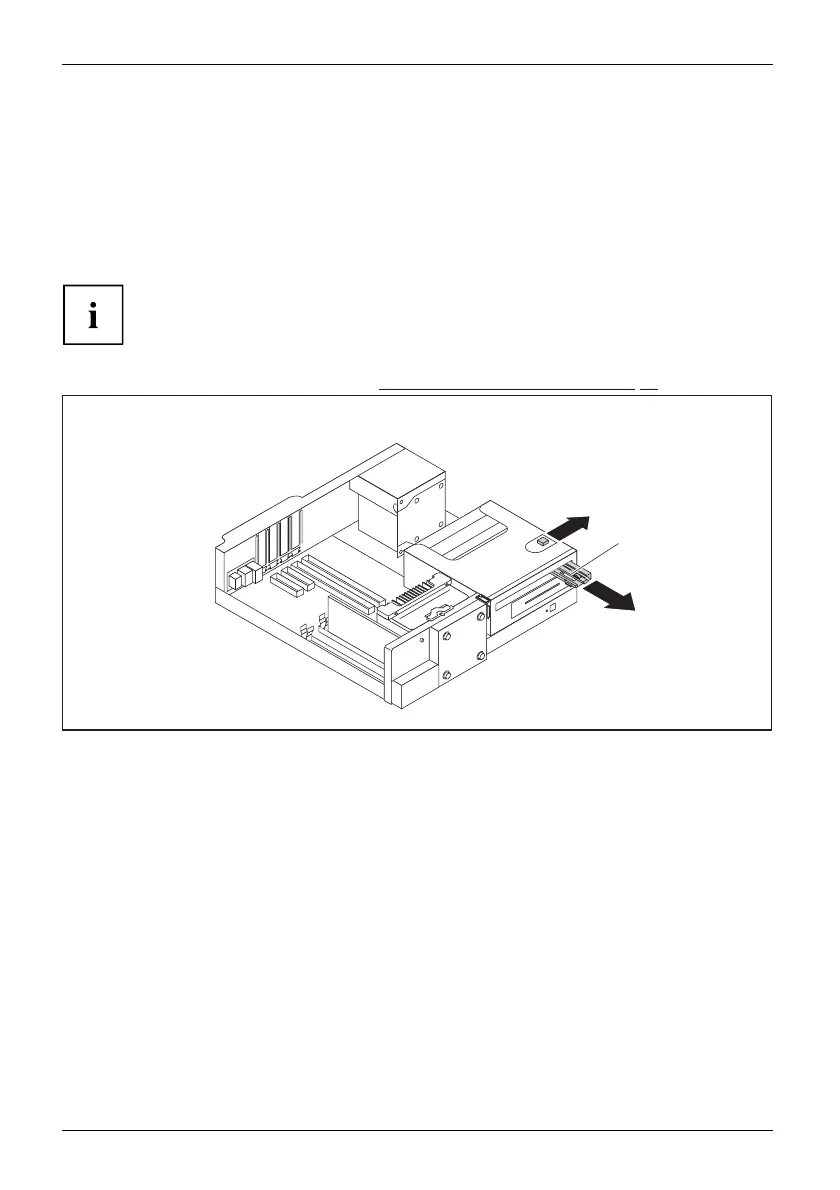

Installing the drive plate for the slimline d rive
To use the locking function of the accessible slimline drive, you must fit the associated drive plate
on the slimline drive before installing the drive in the casing. Proceed as follows:
The drive plate is located in the upper bay for the slimline drive.
► Remove the casing cover (see Chapter "
Removing the casing cover", Page 34).
a
1
1
2
► Press the clip in the direction of the arrow (1).
► Remove the drive plate (a) from the upper bay (2).
40 Fujitsu
