System expansions
Installing and removing drives
in the
lower bay (optional)
In the lower bay you can install
a non-accessible 3½ inch drive, two non-accessible 2½
inch drives with a 3½ inch adap
ter or a non-accessible 2½ inch drive.
Depending on the type of driv
e, fixing to the casing is either by EasyChange rails or by screw fastening.
Installing and removing a 3½ inch drive or a 3½ inch adap ter
The following procedure describes installation and removal using the example of a 3½ inch drive.
The approach is the same for all variants. Any differences are indicated accordingly.
Installing a drive
► Remove the casing cover (see Chapter "Removing the casin g cover", Page 34).
► Fold out the drive cage (see chapter "
Opening the drive cage", Page 45).
EasyChange rails for the drive are located in the lower bay.
a

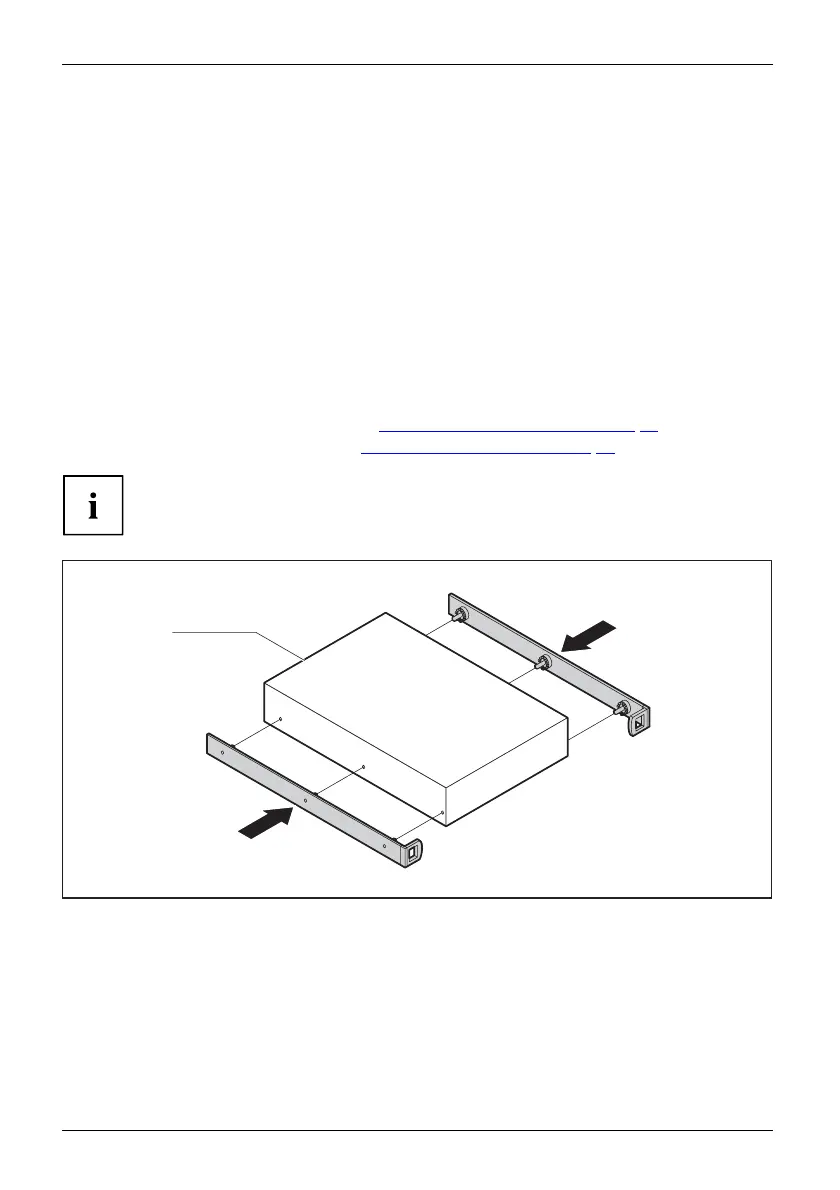

► Fasten the EasyChange rails to the side of the drive or adapter by inserting each pin of
the EasyChange rail in the corresponding holes on the drive . In doing so, make sure
that the ports on th e drive are located at the rear as sh own (a).
50 Fujitsu
