System expansio ns
It may be necessary t o modify the entry for the drive in the BIOS Setup.
Installing and removing a 2½ inch drive (screw fastened)
Installing a drive
► Remove the casing cover (see chapter "Removing the c asing cover", Page 34).
► Fold out the drive cage (see chapter "
Opening the drive cage", Page 45).
2
1

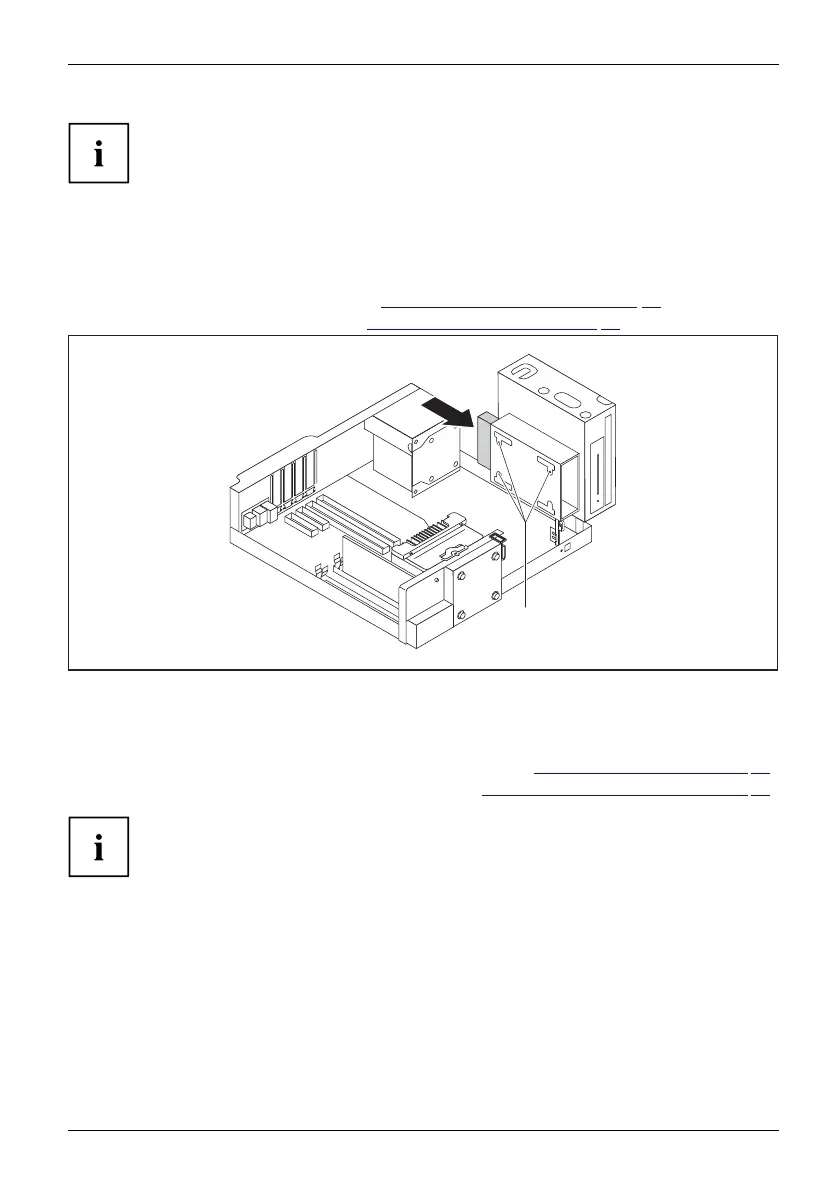

► Slide the drive into the bay (1).
► Secure the d
rive with the screws (2).
► Connect the cables at the drive and at the m ainboard. Make sure the polarity is correct.
► Fold the dr
ive cage into the closed position again (see chapter "
Closing the drive cage", Page 46).
► Fit the casing cover onto the casing again (see chapter "
Reattaching the casing cover.", Page 35).
If necessary, y ou must adjust the entry for the drive a ccord ingly in the BIOS Setup.
Fujitsu 53
