System expansio ns
Removing a slimline drive
► Remove the casing cover (see Chapter "R emoving t he casing cover", Page 34).
► Disconnect the cables connected to the slimline drive.
2
3
1

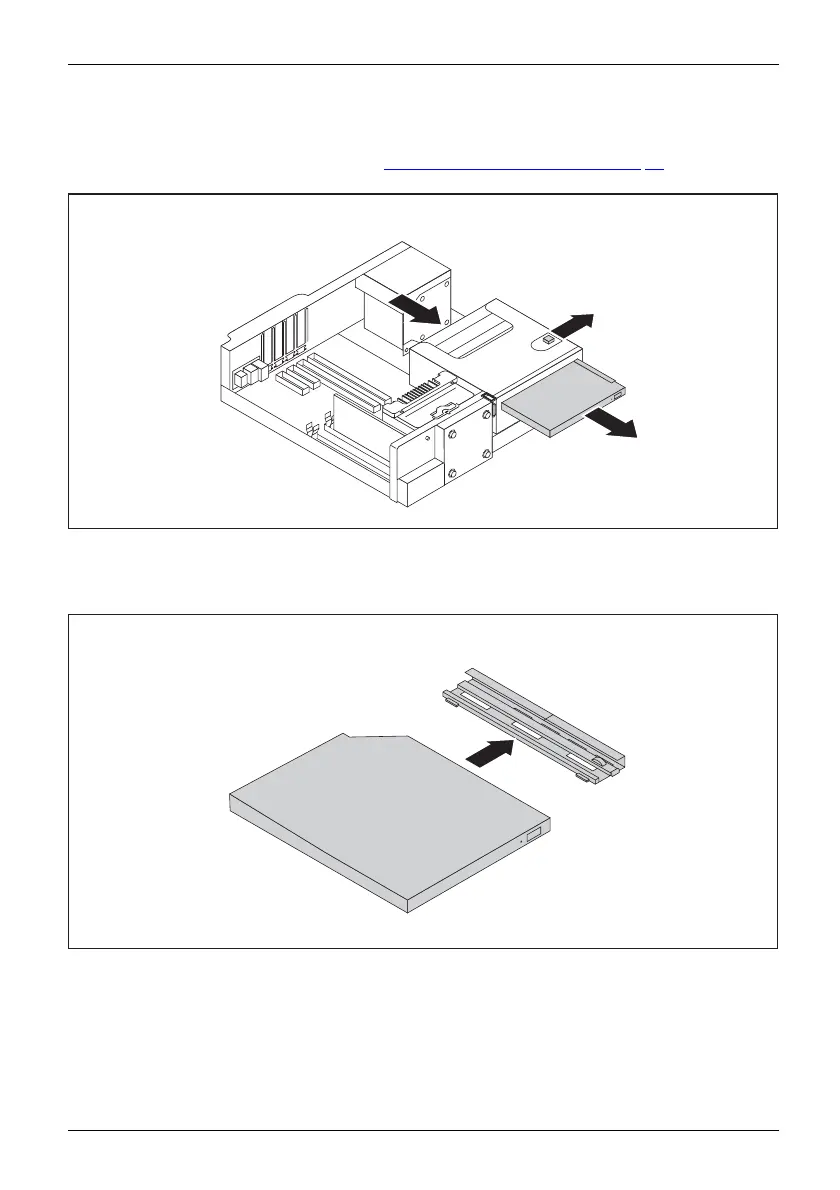

► Press the clip in t
he direction o f the arrow (1).
► Push the slimline drive a few centimetres out of the bay in the direction of the arrow (2).
► Pull the sli mli
ne drive completely out of the bay in the direction of the arrow (3).
4
► Detac
h the drive plate from the slimline drive (4).
Fujitsu 43
