System expansions

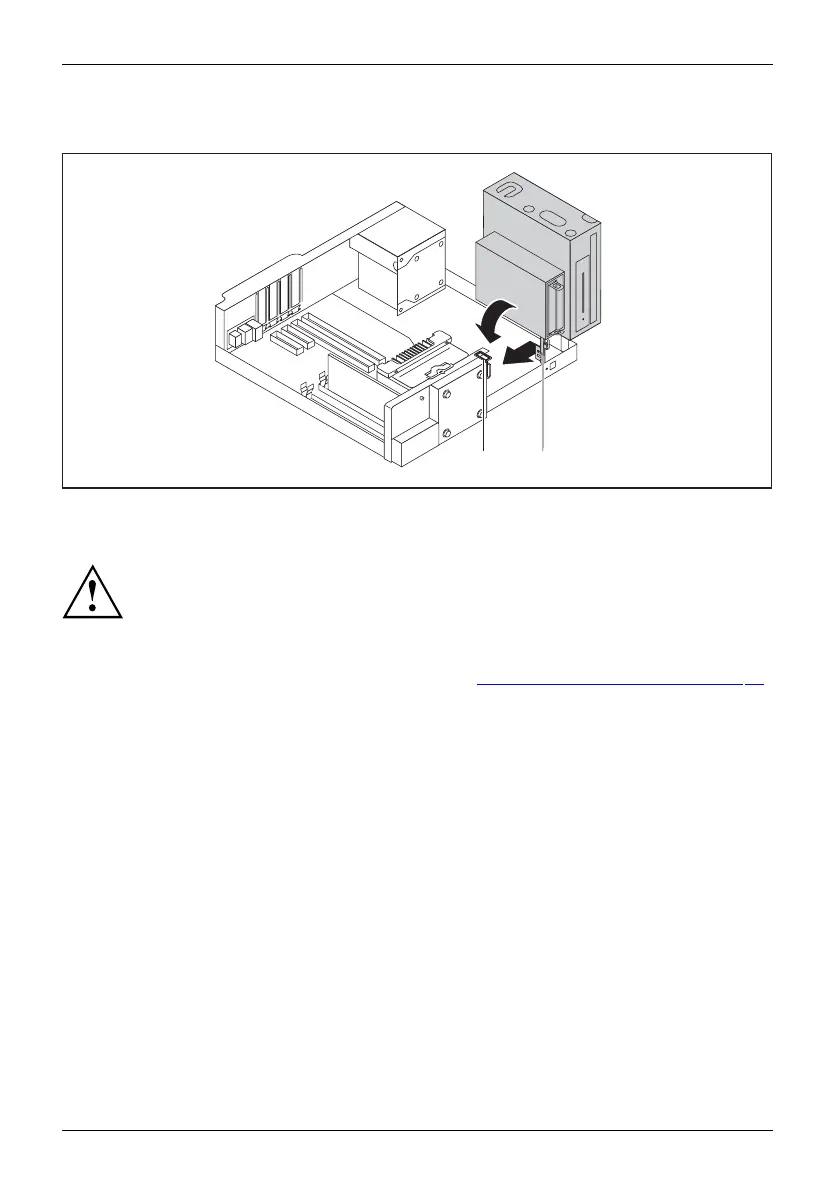

Closing the drive cage
1
2
b
a
► Gently press the upright bracket (b) of the drive cage in the direction of the
arrow (1) until you can move the drive cage.
When closing the drive cage , take care that no cables become trap ped and
that the release catch (a) of the drive cage engages again.
► Fold the drive cage in the direction of the a rrow (2).
► Fit the casing cover onto the casing again (see chapter "
Reattaching the casing cover.", Page 35).
46 Fujitsu
