System expansions
Installing and removing heat si
nks
Removing the heat sink

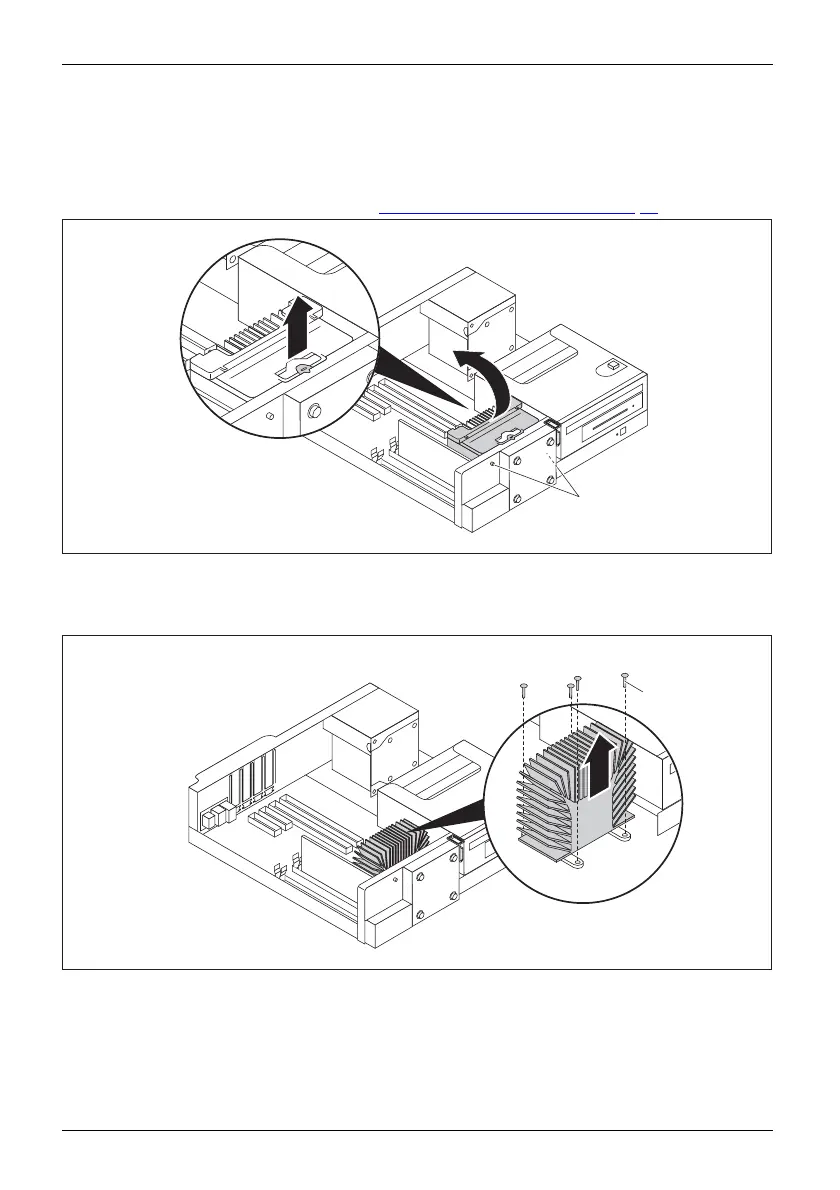

► Remove the casing cover (see Chapter "Removing the casin g cover", Page 34).
1
2
a
► Pull the catch of the hood in the direction of the arrow (1) (identified with the label "PULL").
► Slightly tilt t
he cowl and lift it out of the casing (2). In doing so, take care that
the pins (a) rel
ease from the openings on the casing.
4
3
► Undo
the screw s on the heat sink (3).
► Lift the he at sink out of the casing (4).
70 Fujitsu
