Replacement of non-hot-plug components CSS components
8.2.5 Assembling the server

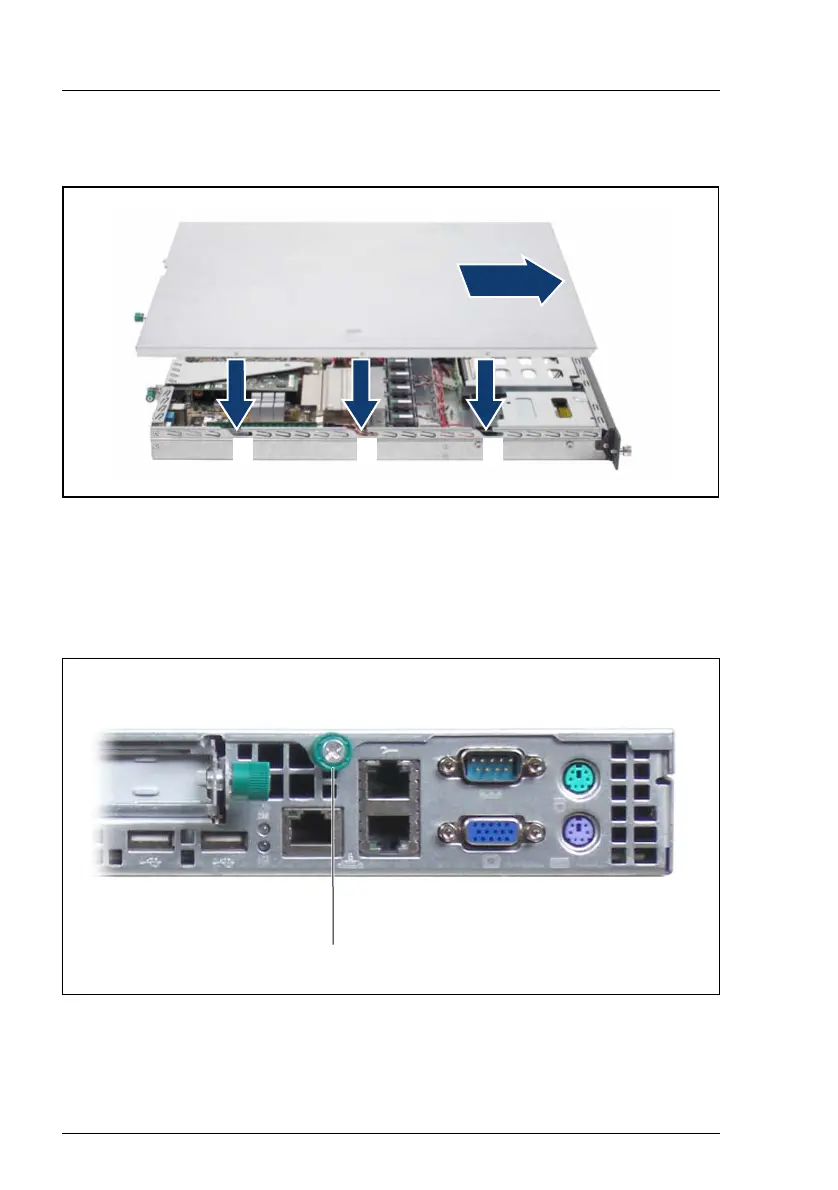

Figure 34: Mounting the top cover
Ê Place the top cover on the server (1).
Make sure that each bolt is positioned in the corresponding nut.
Ê Push the top cover as far as it will go in the direction of the arrow (2).
Figure 35: Securing the knurled screw
Ê Secure the top cover with the knurled screw on the rear panel (1).
2
111
1
