52 Operating manual RX100 S5
Connecting devices to the server Hardware installation
The standard ports on the rear are marked with symbols, and some are color-
coded:

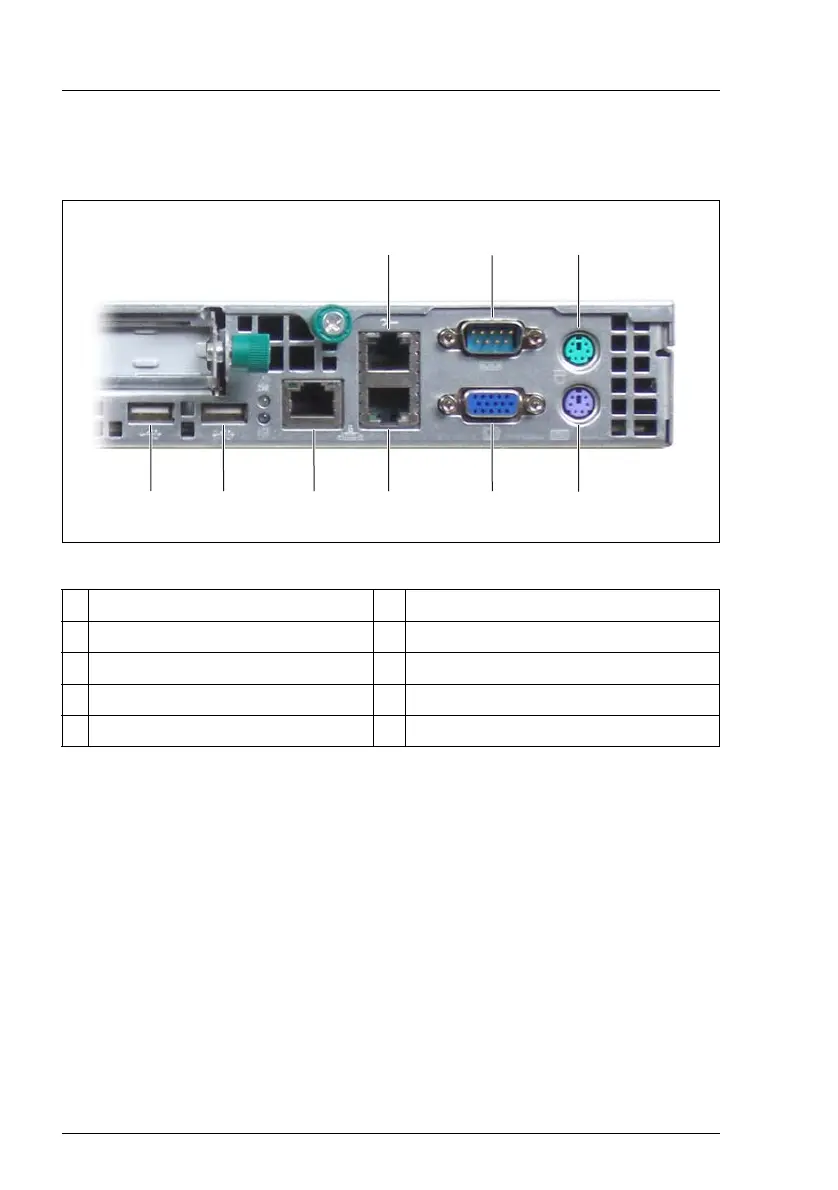

Figure 9: Ports on the rear
Ê Connect the data cables to the server and peripherals.
4.3.1 Connecting the monitor
Ê Plug the data cable for the monitor into the monitor port on the server (item 5
in figure 9 on page 52).
Ê Connect the insulated connector on the monitor power cable to a grounded
outlet in the rack's socket strip (see also the technical manual for the rack).
1 service LAN port 6 LAN port 2
2 Serial port COM1* 7 LAN port 1
3 PS/2 mouse port (green) 8 USB port 2
4 PS/2 keyboard port (purple) 9 USB port 1
5 Monitor port (blue)
* The serial interface COM1 can be used as the standard interface or for
communication with iRMC.
123
456789
