RX100 S5 Operating manual 49
Hardware installation Installing/removing the server in/from the rac
4.2.4 Inserting the server

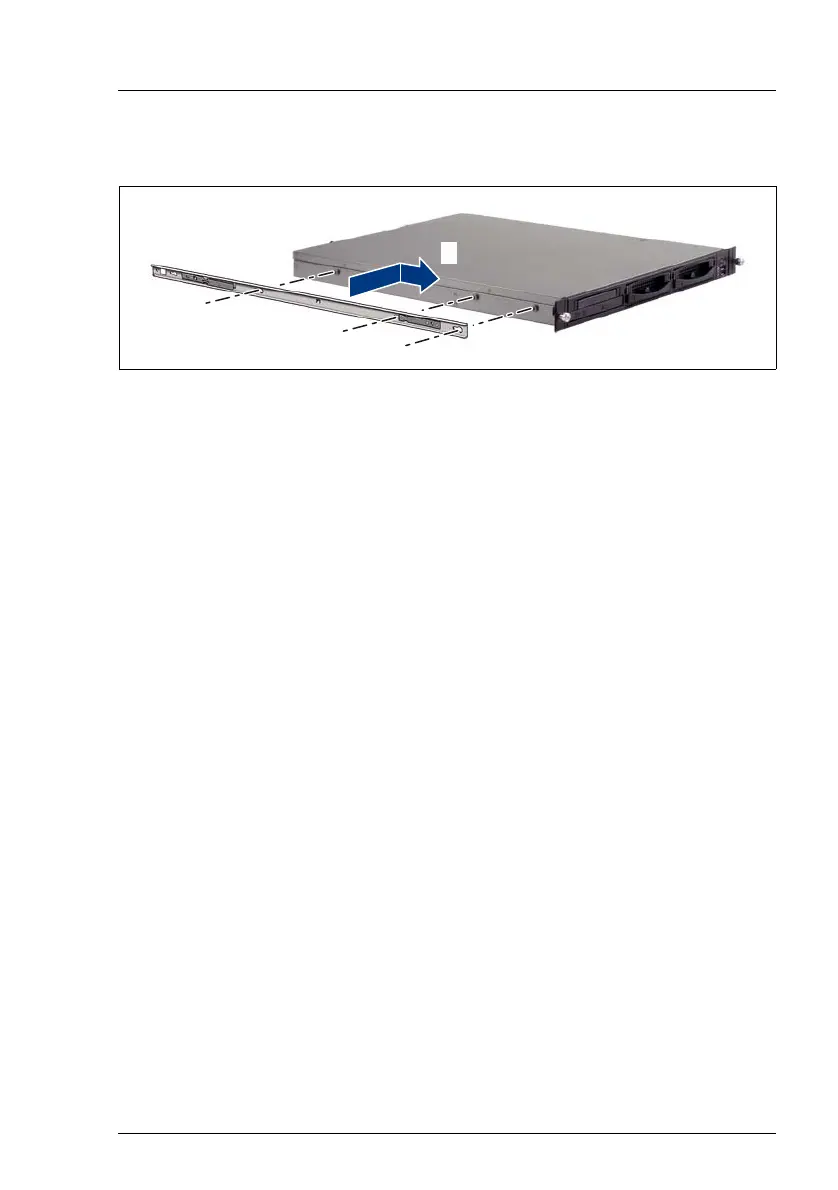

Figure 6: Preparing the server
Ê Place the server rails on the three screws on both sides of the server and
slide the server rails forwards to secure them (1).
The safety spring (a) must engage with an audible click.
1
a
