50 Operating manual RX100 S5
Installing/removing the server in/from the rack Hardware installation

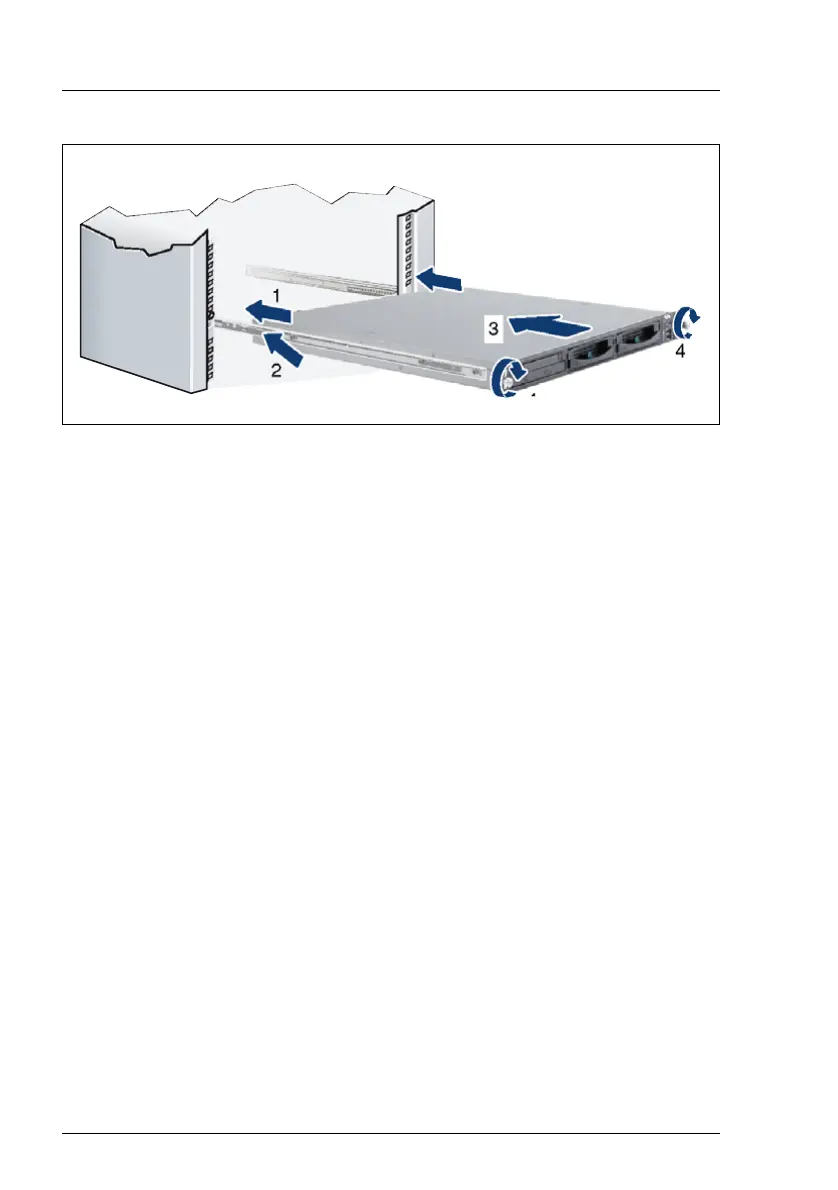

Figure 7: Inserting the server
Ê Push the prepared server into the rails that are attached to the rack until the
server rails engage (1).
I Ensure that the server is inserted horizontally and is not tilted.
Ê Press the safety springs in on both sides (2).
Ê Gently push the server as far as it will go into the rack (3).
Ê Fasten the server to the rack (4) using the two knurled screws (front panel).
To remove the server, follow this procedure in reverse.
1
2
1
4
4
3
