Fujitsu Primergy RX100 S5

RX100 S5 Operating manual 45
Hardware installation Installing/removing the server in/from the rac
k
4.2.2 Installation in PRIMECENTER/DataCenter rack
For installation in a PRIMECENTER/DataCenter rack, the following parts are
required:
– Support bracket
– One left and one right telescopic rail (assembled)
– M5x10 screws with integrated plugwashers
I General information is provided in the Technical Manual for the PRIME-
CENTER and/or DataCenter Rack.
Fitting the support bracket
When mounting the left telescopic rail in the PRIMECENTER/DataCenter Rack,
the supplied support bracket must first be mounted on the rear left support
upright flush with the bottom edge of the device.

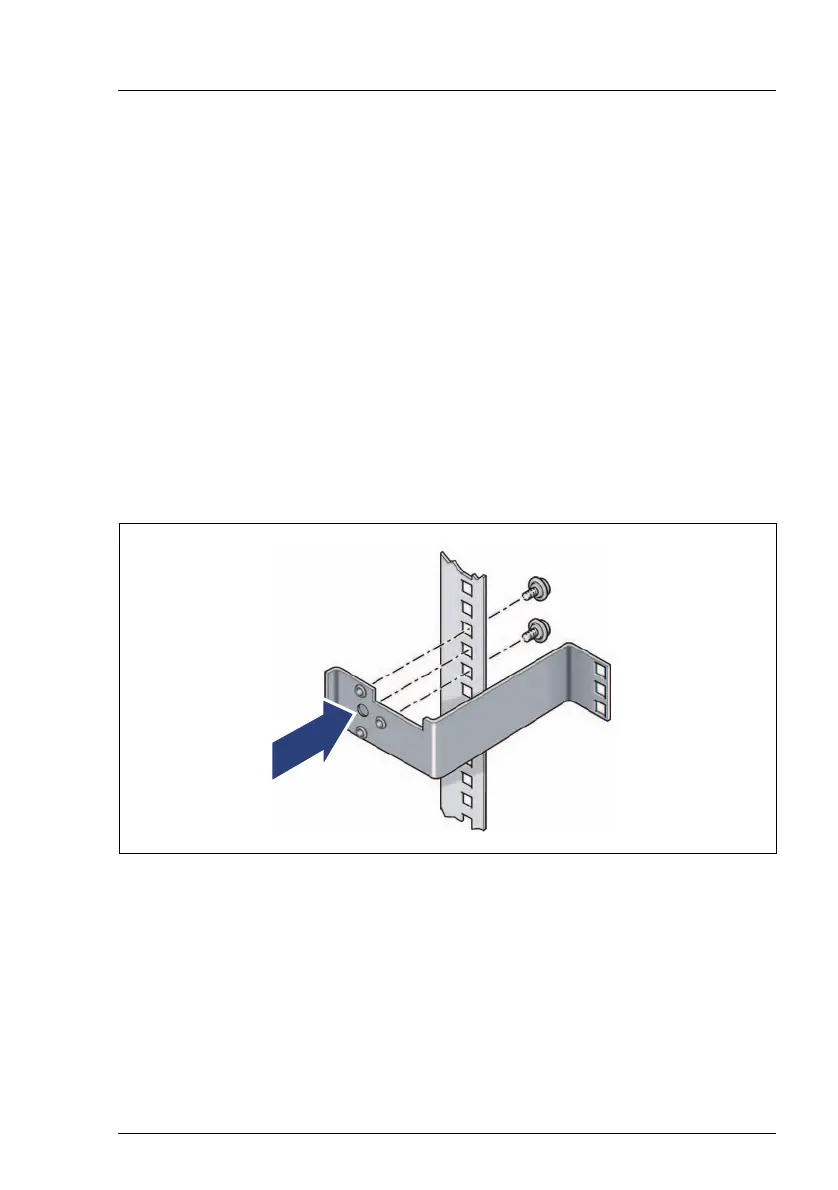

Figure 3: Fitting the support bracket
Ê Position the support bracket at the corresponding height on the rear left
support upright, (insert lug in corresponding hole) (1).
Ê Secure the bracket with two screws incl. plug washers (2).
1
2
