Installing/removing the server in/from the rack Hardware installation
Removing the outer telescopic rail

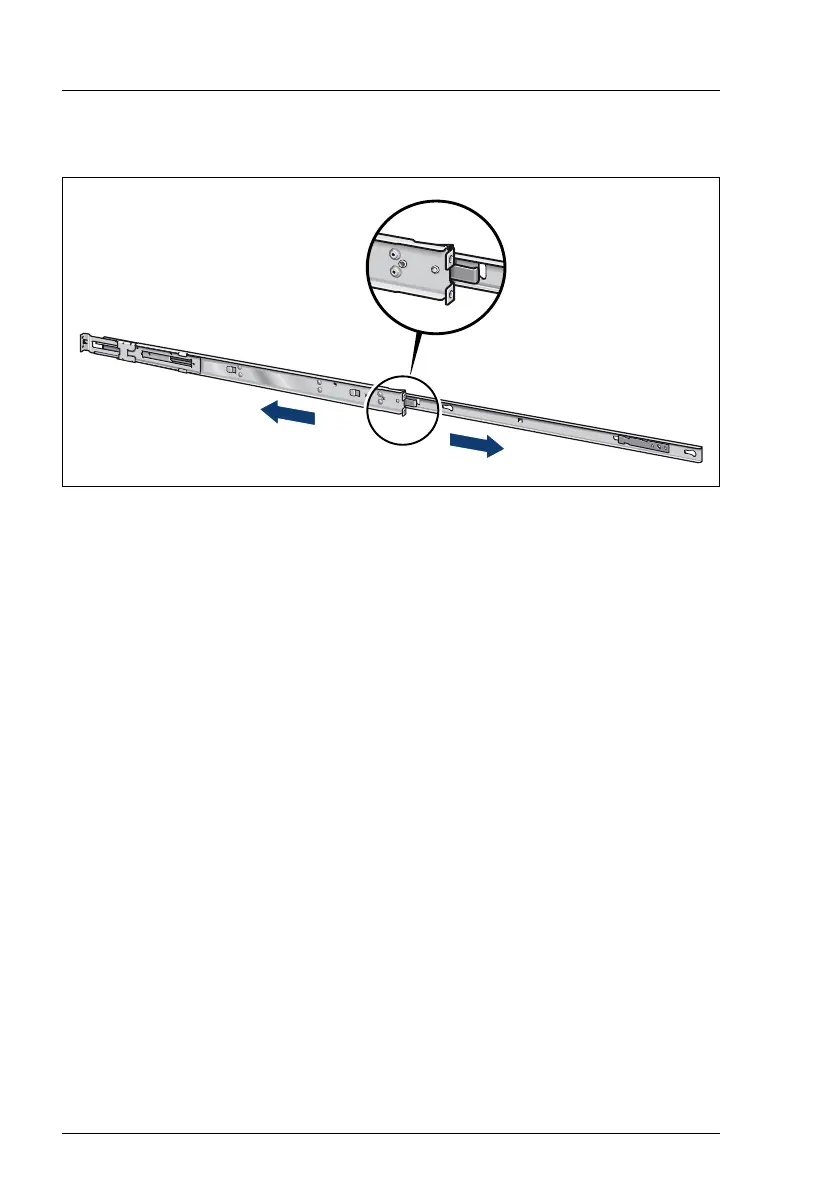

Figure 4: Removing the outer telescopic rail
Ê Extend the telescopic rail fully (1).
Ê Press the release spring (2) and remove the server rail.
Ê Repeat both steps with the second telescopic rail.
I No nuts are required to secure the telescopic rails as the fixing holes on
the rails are threaded.
