RX100 S5 Operating manual 47
Hardware installation Installing/removing the server in/from the rac
Installing the telescopic rail with variable support

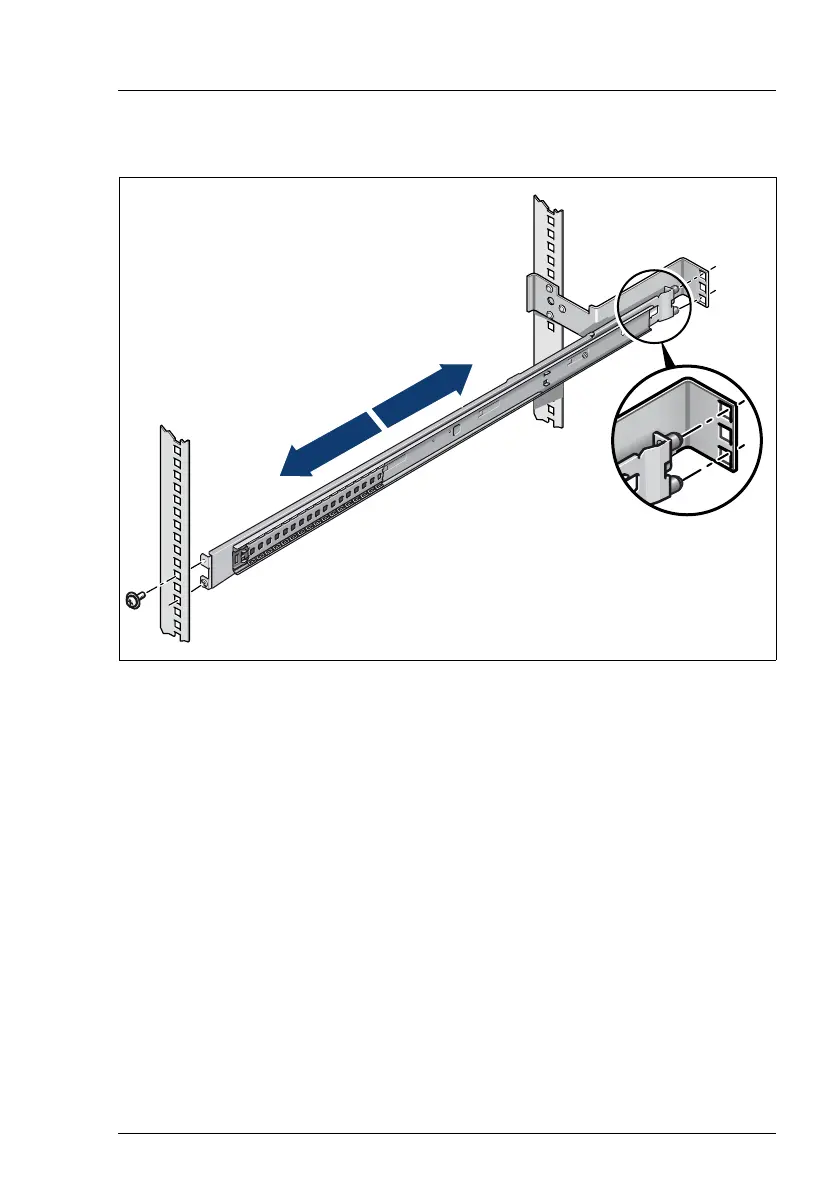

Figure 5: Fit the left telescopic rail in the PRIMECENTER/DataCenter Rack
Ê Position the left rail (1) on the support bracket with the retaining bolts in the
upper and lower square catch (a).
Ê Press the left rail together until its front end passes behind the front left
support upright, then release (2).
Ê Fasten the rail with a screw (M5) to the left front support upright (3).
Ê Repeat the steps with the right telescopic rail (to be secured to the right
support uprights).
Ê Fit the PRIMECENTER/DataCenter rack cable management as described in
the technical manual for the corresponding rack.
Ê Insert the server (see section “Inserting the server” on page 49).
Ê Route the cables as described in the technical manual for the rack in
question with the server pushed in.
