Fujitsu Primergy RX100 S5 User Manual

RX100 S5 Operating manual 53
Hardware installation Connecting the server to the mains
4.4 Connecting the server to the mains
The server has a fixed power supply unit.
V CAUTION!
The server is automatically set to a mains voltage in the range 100 V -
127 V or 200 V - 240 V. You may only operate the server if its rated
voltage range corresponds to the local mains voltage.

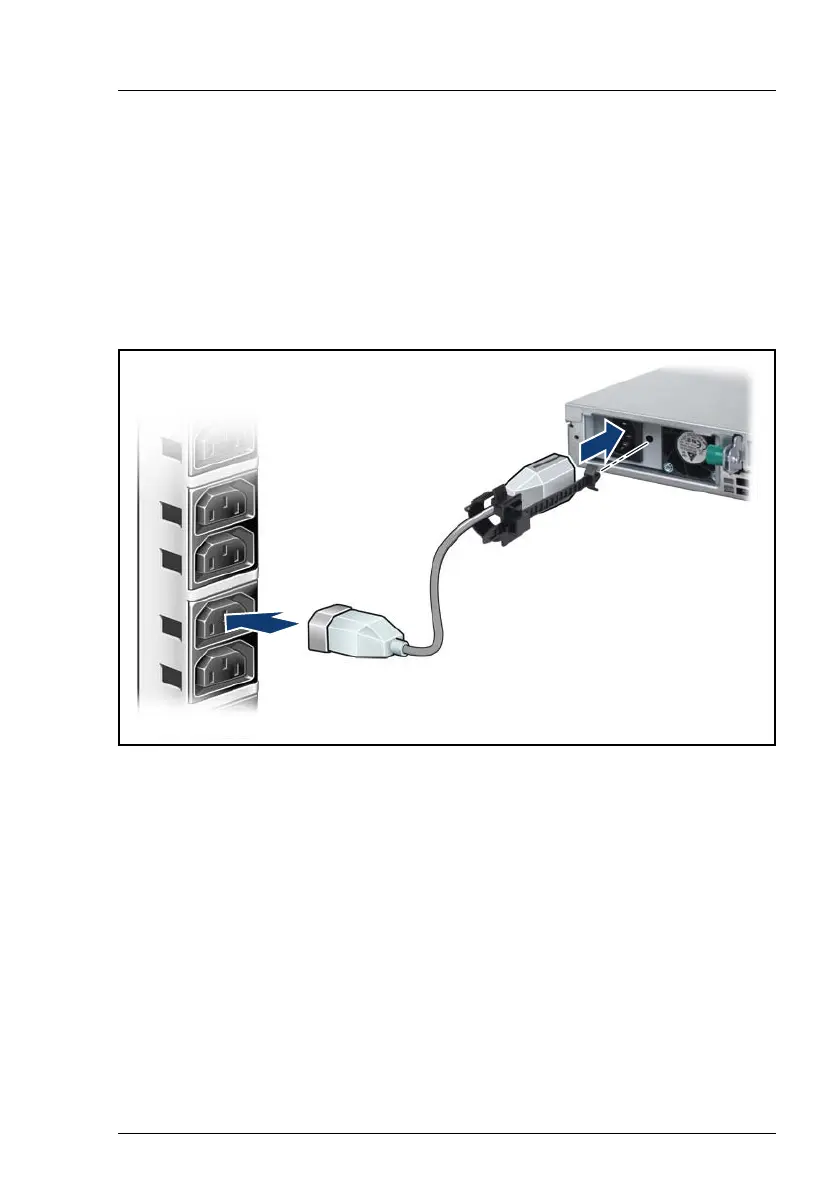

Figure 10: Connecting the server to the mains
Ê Connect the power cord to the server power supply unit (1).
I As an option, you can secure the power cord in the cable clamp so
that the insulated connector cannot be disconnected from the server
accidentally. The cable clamp has to be clipped to the server's power
supply unit.
Ê Connect the mains connector to an outlet on the rack's socket strip (2).
I For details, please see the technical manual for the rack.
1
2

Fujitsu Primergy RX100 S5 Specifications

General

Processor cache	1 MB
Processor cores	2
Processor family	Intel Pentium Dual Core
Processor frequency	2.2 GHz
Processor cache type	L2
Processor front side bus	800 MHz
Number of processors installed	1
Hot-swap	Yes
HDD interface	Serial ATA
Optical drive type	DVD Super Multi
Total storage capacity	0 GB
Memory slots	4
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 1 GB
Networking features	Gigabit Ethernet
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	3
Power supply	350 W
Power requirements	100 - 127V/200 - 240V@50 - 60Hz
Redundant power supply (RPS) support	No
Dimensions (WxDxH)	430 x 560 x 42.5 mm
Compatible operating systems	Microsoft Windows Server 2008/Server 2003, NovellSUSE Linux Enterprise Server, Red Hat Enterprise Linux
Chassis type	Rack (1U)
Operating temperature (T-T)	15 - 35 °C
Operating relative humidity (H-H)	10 - 85 %
Certification	GS CE CSAc/us ULc/us FCC Class A CB RoHS WEEE VCCI CCC C-Tick BSMI

Weight and Dimensions

Weight	12000 g
