Fujitsu Primergy RX100 S5

RX100 S5 Operating manual 79
CSS components Hot-plug HDD modules
8.1.1 HDD module and dummy module
The hard disk drives which can be ordered for the PRIMERGY RX100 S5 are
supplied already mounted in an installation frame so that defective drives can
be replaced and new drives can be added during operation. The hard disk drive
and installation frame together make up the HDD module.

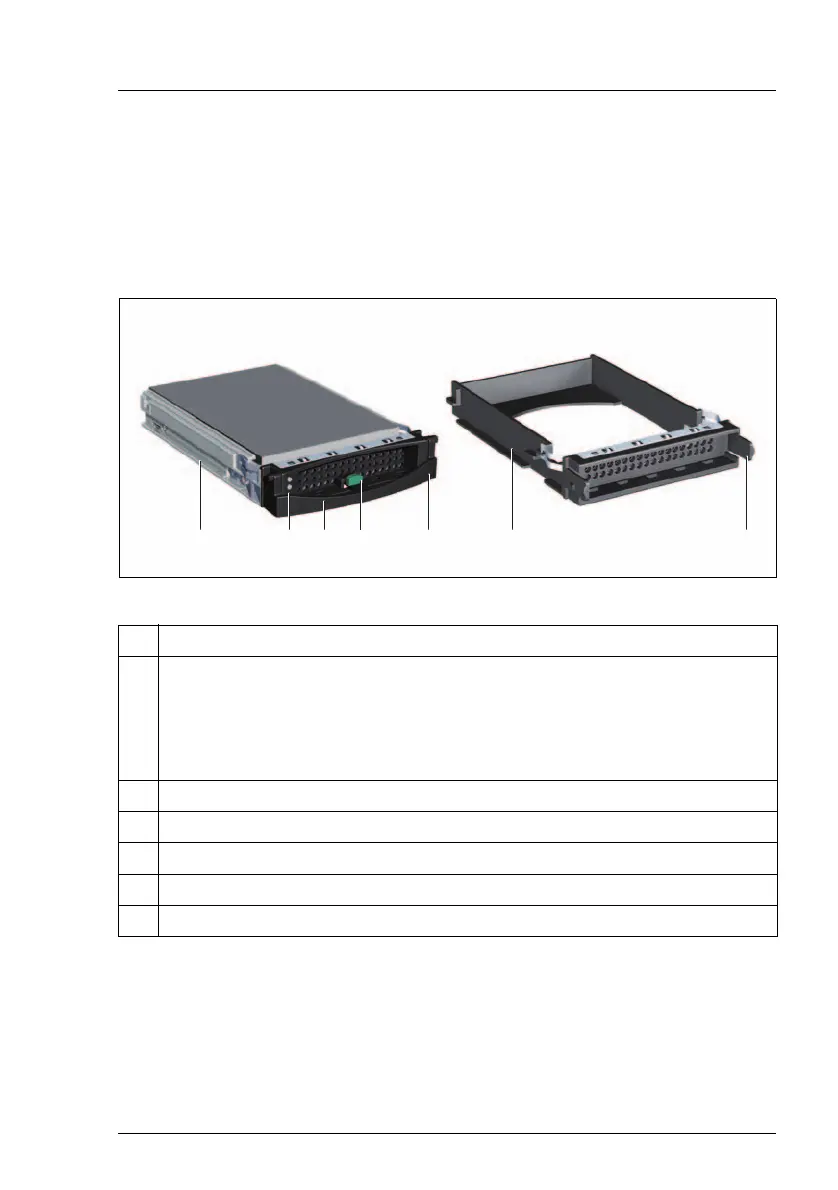

Figure 16: HDD module and dummy module
1 HDD module (installation frame with hard disk drive installed)
2 Indicators
HDD Busy (LED green)
HDD Fault (LED orange)
For description see section “Indicators on the hot-plug HDD module” on
page 60.
3 Handle for locking and unlocking the HDD module
4 Button for locking and unlocking the handle
5 Ridge for applying a sticker with the current drive name
6 Dummy module
7 Tabs for unlocking the dummy module
