Indicators on the connection panel (LAN indicators)

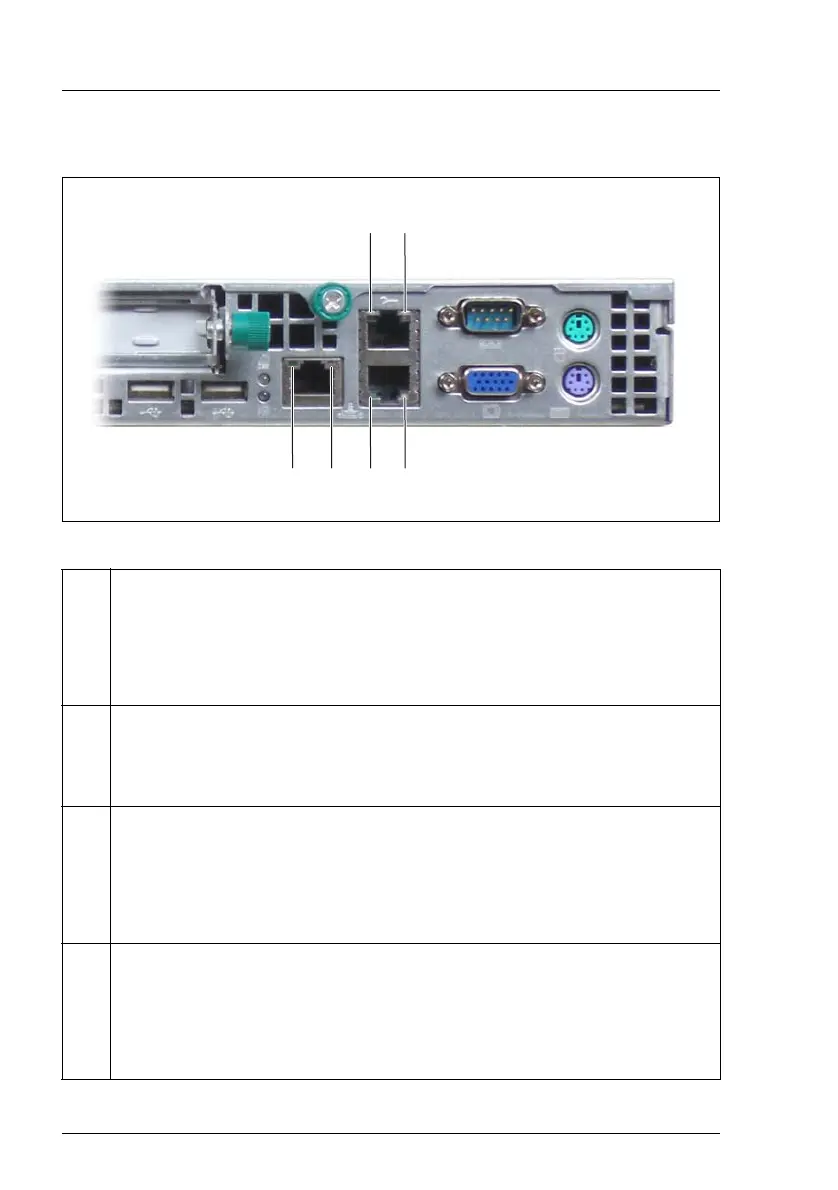

Figure 15: LAN indicators
1 LAN activity indicator (service LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
2 LAN transfer rate indicator (service LAN)
Lights up green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps.
3 LAN activity indicator (standard LAN)
Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
4 LAN transfer rate indicator (standard LAN)
Lights up orange for a LAN transfer rate of 1 Gbps.
Lights up green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps.
12
43
43
