Replacing the Roller Set

453

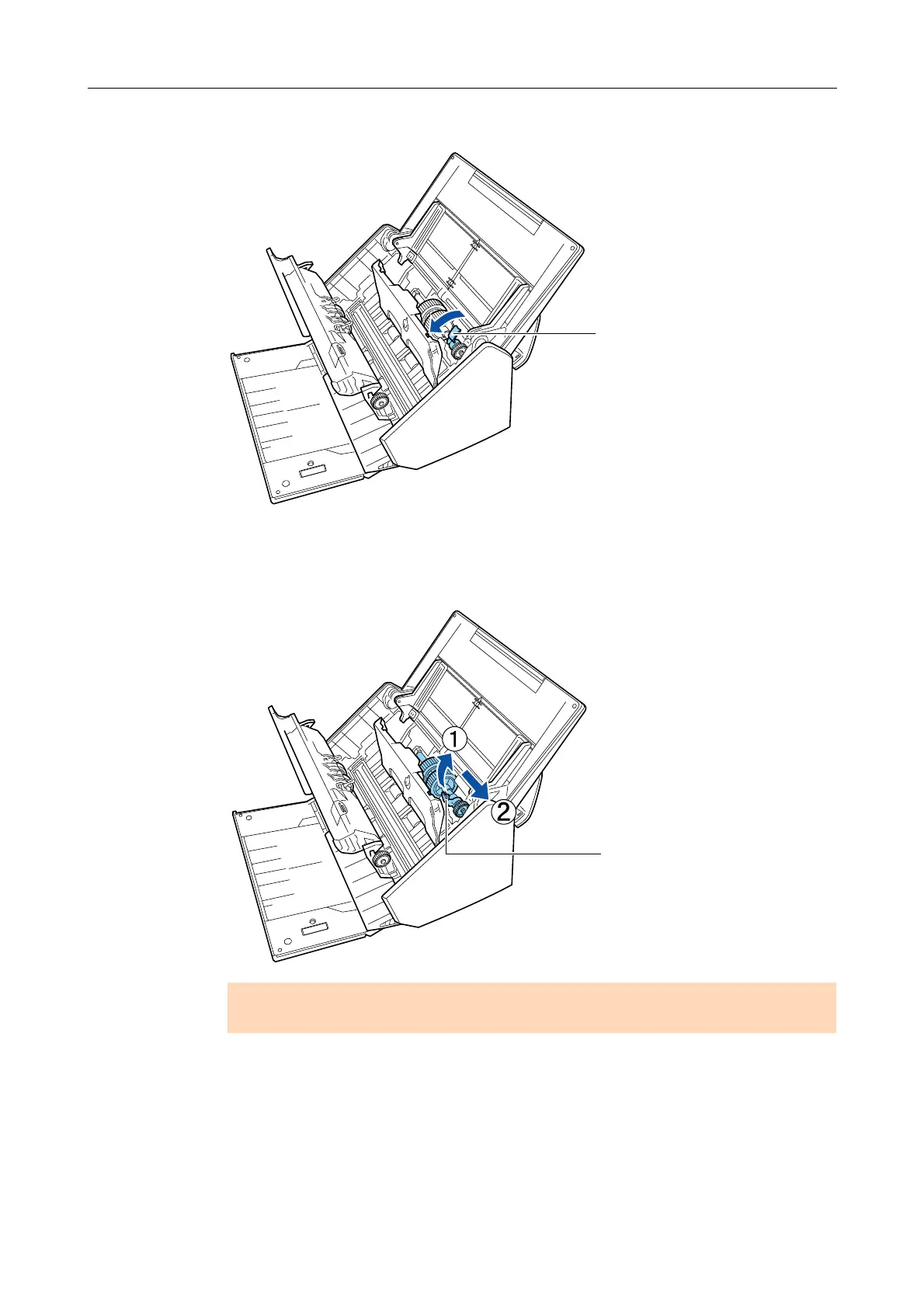

2. Rotate the bushing on the shaft.

3. Remove the pick roller.

Gently lift the right side of the shaft (about 5 mm), move it towards the right, and then

pull it out.

ATTENTION

Be careful not to touch the gear near the bushing on the shaft as it contains grease.

Bushing

Bushing
