Fujitsu ScanSnap S300 User Manual

198

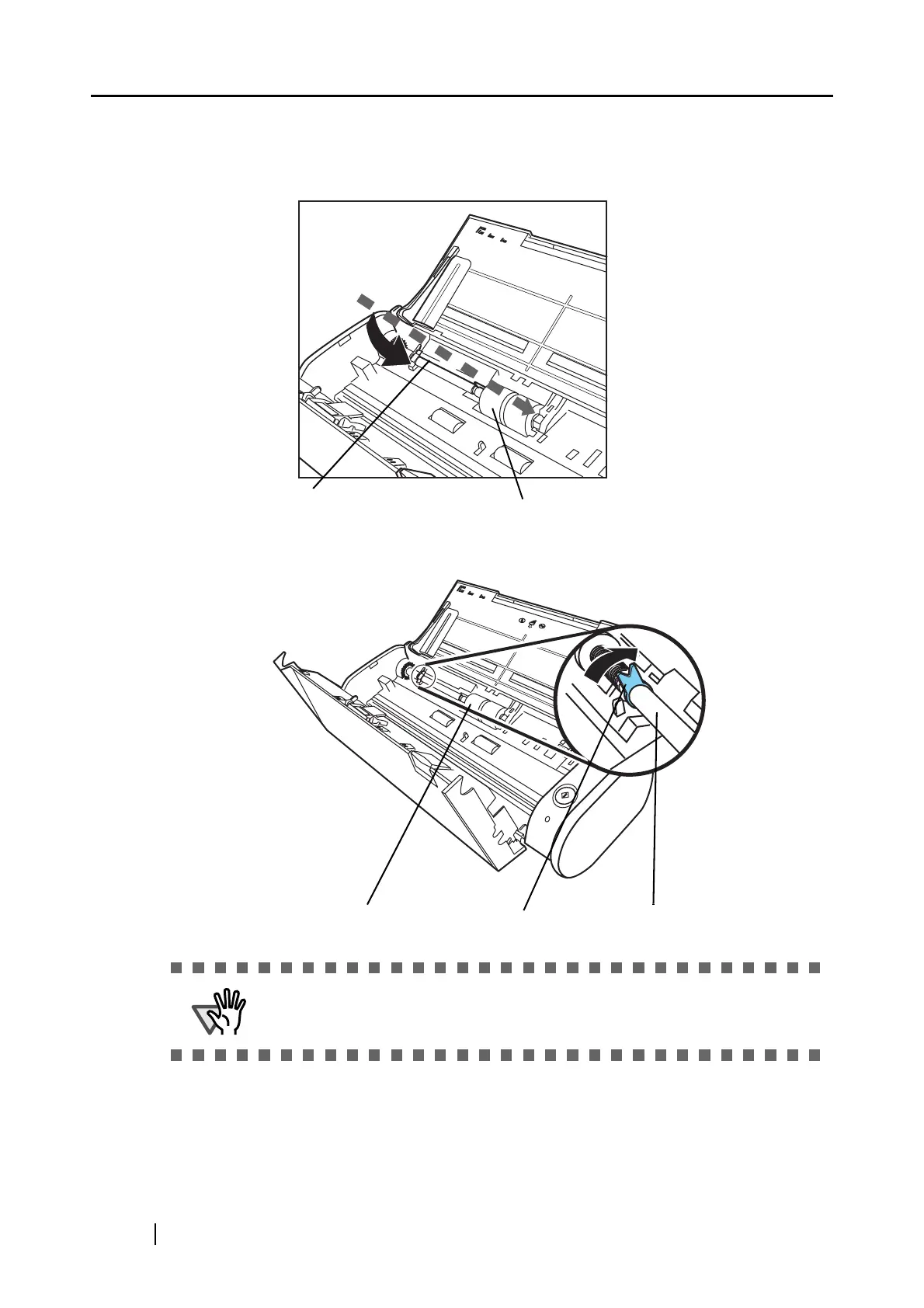

8. Install the pick roller with it’s shaft to the scanner.
Insert the right end of the shaft to the roller bushing (right), and set the shaft to the slot while
lowering it.
9. Rotate the roller bushing (left) by rotating it in the direction of the arrow.
ATTENTION
Make sure that the Pick roller is completely attached. Otherwise, document
jams or other feeding errors may occur.
Pick roller
Pick roller shaft
Pick roller
Pick roller shaftPick roller bushing

Fujitsu ScanSnap S300 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
Minimum scan area (ADF)	50.8 x 50.8 mm
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
Bundled software	ScanSnap Manager V4.2, ScanSnap Organizer V3.2, CardMinder V3.2
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 95 x 77 mm
Power requirements	AC 100V to 240V, 50 / 60 Hz
Dimensions (W x D x H) (imperial)	11.18 x 3.74 x 3.03 \
Maximum scan area (ADF) (imperial)	8.5 x 14.17 \
Minimum scan area (Auto Document Feeder)	2 x 2 \
Minimum RAM	512 MB
Minimum storage drive space	920 MB
Compatible operating systems	Windows 2000 Professional, Windows XP, Windows Vista
Power supply type	AC/USB
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	1400 g
