9.3 Replacing the Pick Roller
ScanSnap S300 Operator's Guide 197
Replacing Consumables
9

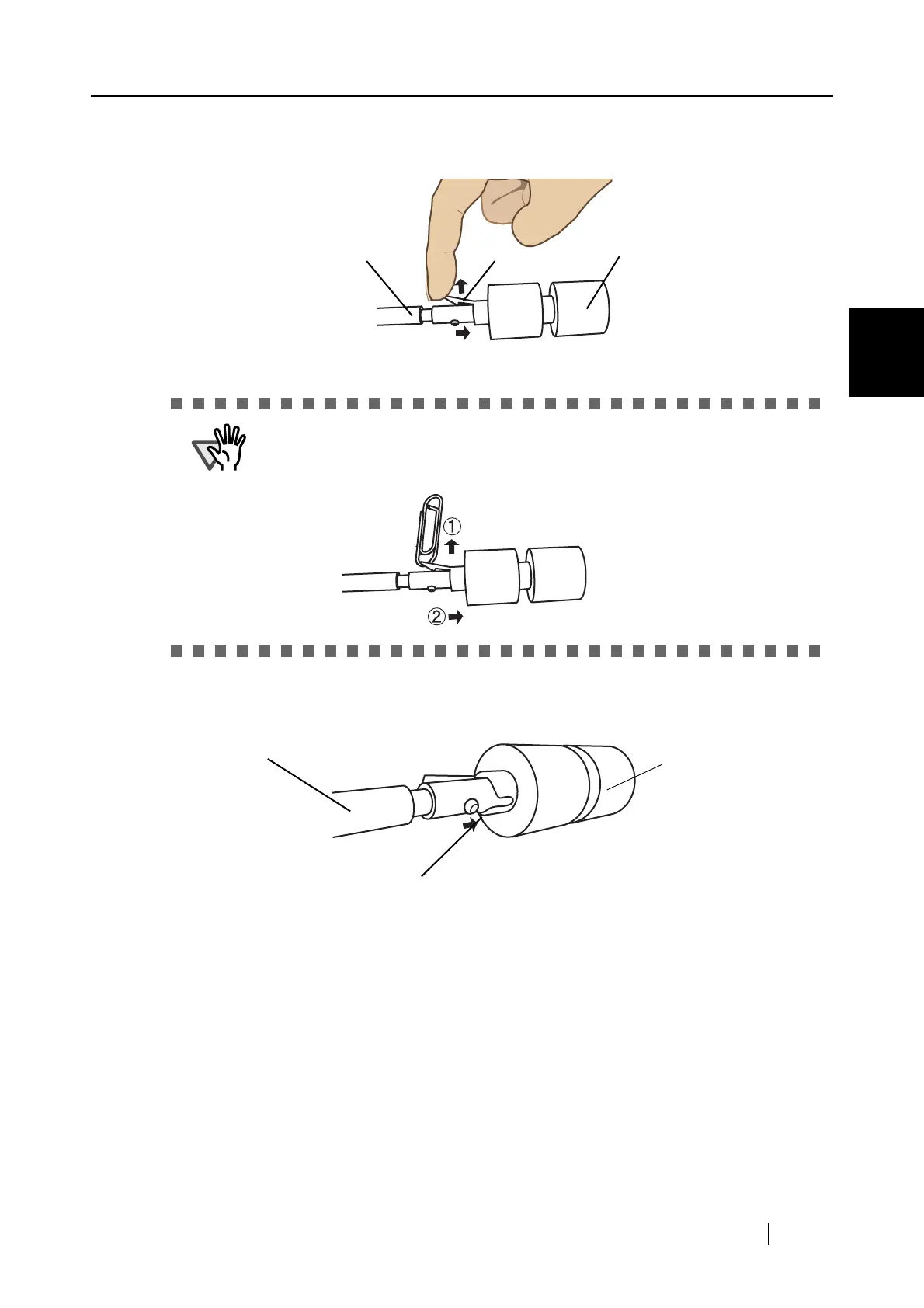

6. Remove the pick roller from its shaft.
Pull out the shaft from the pick roller while lifting up its tab.
7. Attach the new pick roller to the shaft.
Insert the shaft aligning the protrusion with the slot on the new pick roller.
ATTENTION
If you push up the pick roller tab using your fingernail, your fingernail may be
hurt or get chipped. If you cannot push it up successfully with your fingernail,
use a paper clip to push up the pick roller tab.
Shaft
Tab
Pick roller
Shaft
Protrusion
Pick roller
