Fujitsu ScanSnap S300 User Manual

14

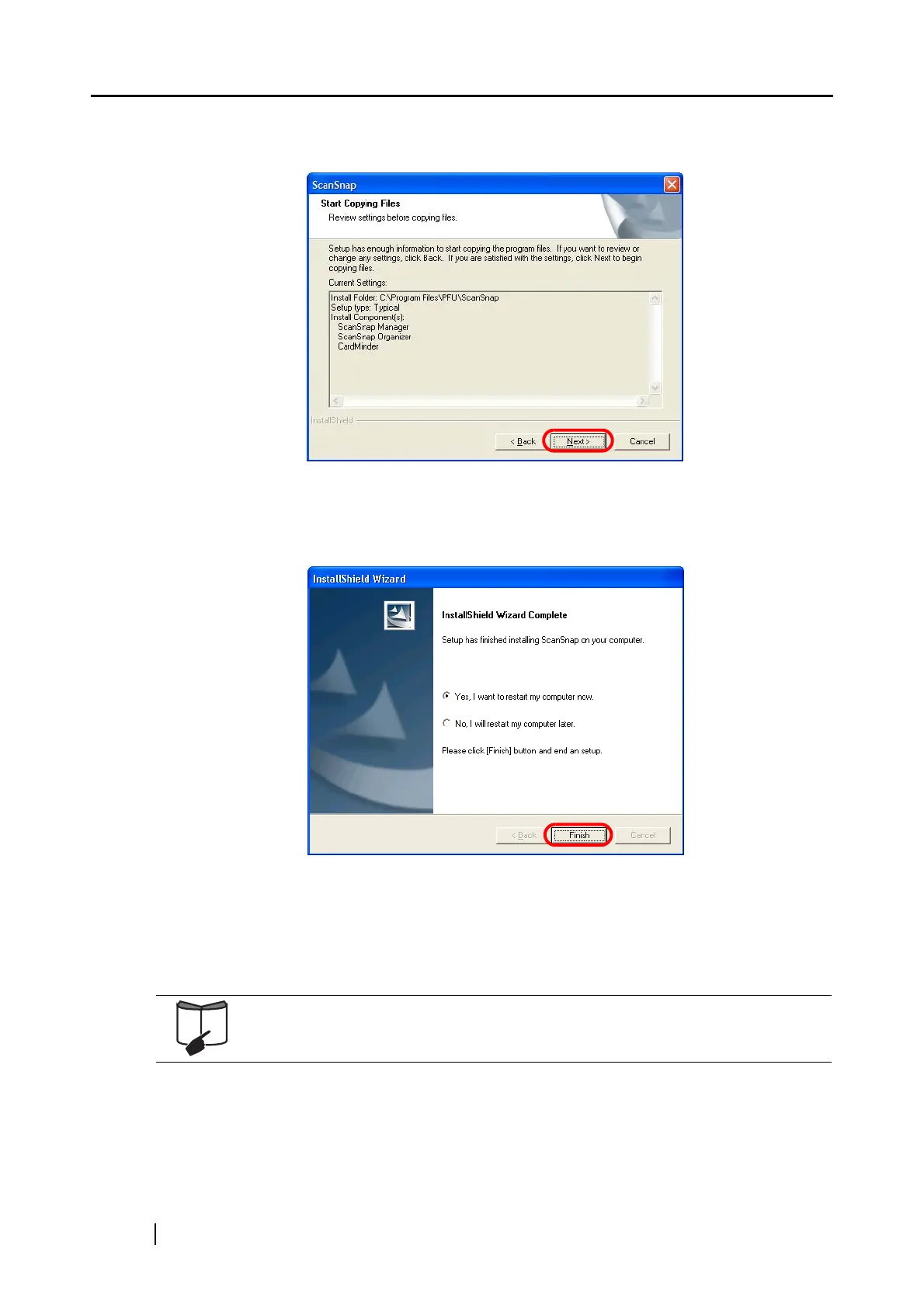

10. In the [Start Copying Files] dialog box, check the files that will be installed and click
the [Next] button.
⇒ The installation is started. When the installation is complete, the [InstallShield Wizard
Complete] dialog box will appear.
11. In the [InstallShield Wizard Complete] dialog box, click the [Finish] button.
⇒ Select [Yes, I want to restart my computer now.] to restart your personal computer.
⇒ Select [No, I will restart my computer later.] to finish the installation. The [ScanSnap
Setup] dialog box appears; click the [Exit] button to close the [ScanSnap Setup] dialog
box.
(To complete the installation, you have to restart your computer.)
For how to uninstall these programs, refer to "Appendix B Uninstalling
ScanSnap" on page 203.

Fujitsu ScanSnap S300 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
Minimum scan area (ADF)	50.8 x 50.8 mm
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
Bundled software	ScanSnap Manager V4.2, ScanSnap Organizer V3.2, CardMinder V3.2
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 95 x 77 mm
Power requirements	AC 100V to 240V, 50 / 60 Hz
Dimensions (W x D x H) (imperial)	11.18 x 3.74 x 3.03 \
Maximum scan area (ADF) (imperial)	8.5 x 14.17 \
Minimum scan area (Auto Document Feeder)	2 x 2 \
Minimum RAM	512 MB
Minimum storage drive space	920 MB
Compatible operating systems	Windows 2000 Professional, Windows XP, Windows Vista
Power supply type	AC/USB
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	1400 g
