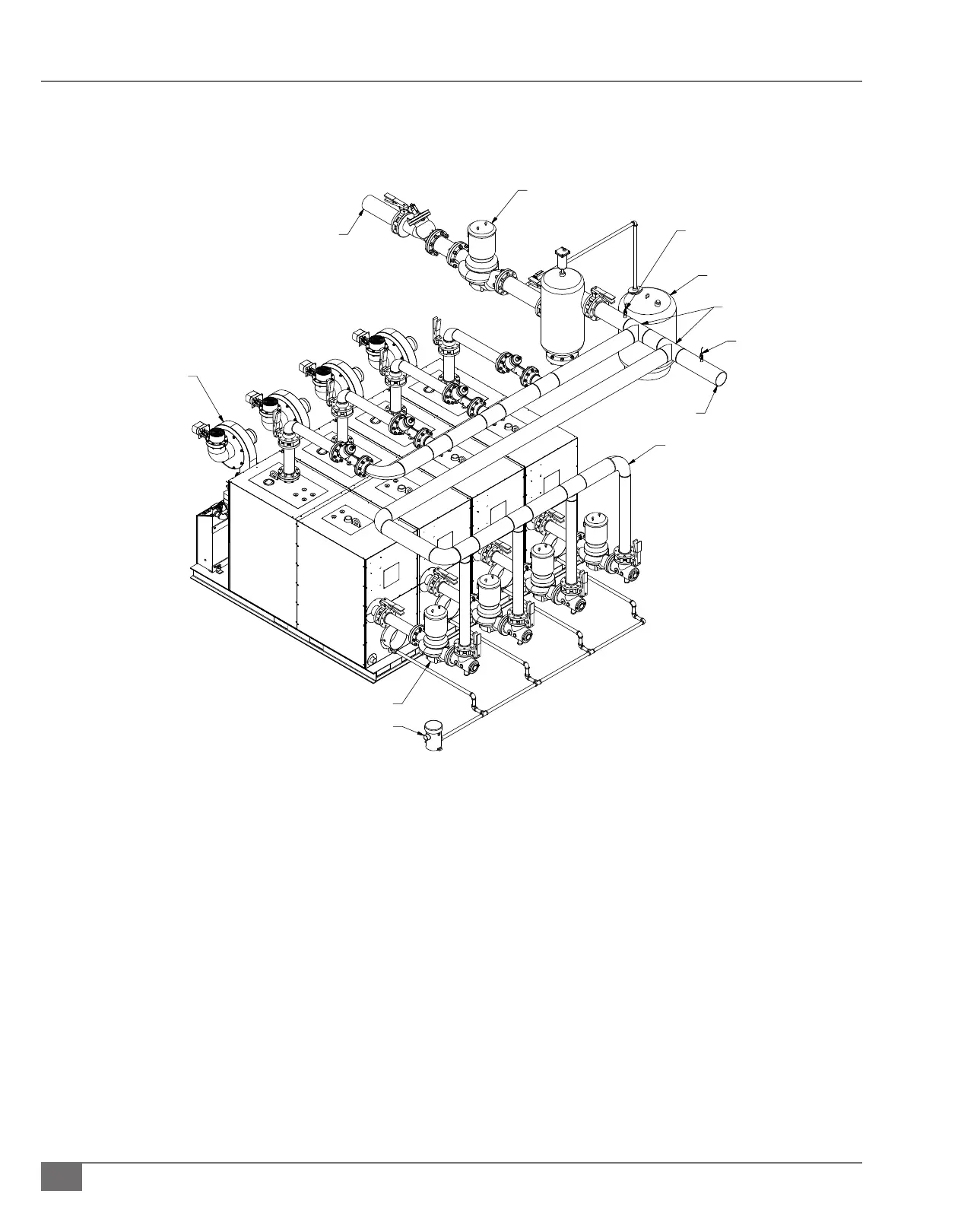

FIGURE 4  MULTIPLE VANTAGE BOILERS IN A COMMON HYDRONIC LOOP, PRIMARYSECONDARY FLOW ARRANGEMENT
Note: Sample piping layout (P&ID) is a general representation of system installation. Good practice should be used in system design,
including but not limited to adequate pipe/valve sizing and natural ow path for system water.
DRAWING NUMBER
REV
G-31-100004
-
VANTAGE BOILER PRIMARY-SECONDARY
PIPING DIAGRAM WITH 1" SIDE
CLEARANCE
DESCRIPTION:
DRAWN BY:
M. BERWALD
CHECKED BY:
N/A
B.O.M. REVIEW
MECH. ENG:
N/A
ELEC. ENG:
APPROVED BY:
N/A
K.BOTTORFF
N/A
JOB NUMBER:
PROJECT NAME:
PROJECT MANAGER:
This design and
drawings are
proprietary and are the
exclusive property of
The Fulton Companies.
The corporation does
not permit their use
except with pr
ior
written consent.
The items shown in
this drawing may be
covered by one or
more patents of The
Fulton Companies.
1 OF 1
THIRD ANGLE PROJECTION
The Fulton Companies
972 Centerville Road
Pulaski, New York USA 13142
7/7/2014
7/7/2014
UNLESS OTHERWISE NOTED:
DIMENSIONS ARE IN INCHES
TOLERANCES ON
FRACTIONS
1/4
(2) PLACE DEC. .01
(3) PLACE DEC.
.005
ANGLES 2 DEG.
SURFACE FINISH
250 MICRO-INCHES
R
SHEET 1 OF 1
-
INITIAL RELEASE
--- --- --- --- ---
REVISION HISTORY
R
EV REVISION DESCRIPTION B.O.M. ELEC. ENG MECH. ENG CHECKED APPROVED
NOTES:
1.
2.
3.
4.
5.
THIS IS A TYPICAL ARRA
NGEMENT FOR REFERENCE PURPOSES
ONLY. ACTUAL INSTALL
ATIONS MAY REQUIRE ADDITIONAL
COMPONENTS WHICH A
RE NOT SHOWN FOR CLARITY.
THIS DRAWING IS NOT
FOR CONSTRUCTION PURPOSES.
REFER TO THE INSTALL
ATION AND OPERATION MANUALS FOR
INFORMATION REGARDI
NG CLEARANCES AND INSTALLATION
REQUIREMENTS.
THE PIPING CONFIGURA
TION SHOULD UTILIZE A REVERSE
RETURN HEADER TO PR
OPERLY BALANCE FLOW ACROSS THE
BOILERS. WHERE REVER
SE RETURN CANNOT BE USED, IT IS
RECOMMENDED TO INS
TALL A BALANCING VALVE PER BOILER.
CENTER TO CENTER DIS
TANCE BETWEEN BOILER (PRIMARY)
SUPPLY AND RETURN M
ANIFOLDS SHOULD BE 4 PIPE
DIAMETERS OR LESS.
HEATING HOT
WATER SUPPLY
FULTON VANTAGE
H
YDRONIC CONDENSING BOILERS
SYSTEM (SECONDARY)
PUMP WITH VARIABLE
SPEED DRIVE
EXPANSION TANK
SUPPLY WATER
TEMPERATURE SENSOR
RETURN WATER
TEMPERATURE SENSOR
HEATING HOT
WATER RETURN
SEE NOTE 5
BOILER (PRIMARY)
PUMP
CONDENSATE DRAIN
TRAP
REVERSE RETURN
(SEE NOTE 4)
DRAWING NUMBER
REV
G-31-100004
-
VANTAGE BOILER PRIMARY-SECONDARY
PIPING DIAGRAM WITH 1" SIDE
CLEARANCE
DESCRIPTION:
DRAWN BY:
M. BERWALD
CHECKED BY:
N/A
B.O.M. REVIEW
MECH. ENG:
N/A
ELEC. ENG:
APPROVED BY:
N/A
K.BOTTORFF
N/A
JOB NUMBER:
PROJECT NAME:
PROJECT MANAGER:
This design and
drawings are
proprietary and are the
exclusive property of
The Fulton Companies.
The corporation does
not permit their use
except with pr
ior
written consent.
The items shown in
this drawing may be
covered by one or
more patents of The
Fulton Companies.
1 OF 1
THIRD ANGLE PROJECTION
The Fulton Companies
972 Centerville Road
Pulaski, New York USA 13142
7/7/2014
7/7/2014
UNLESS OTHERWISE NOTED:
DIMENSIONS ARE IN INCHES
TOLERANCES ON
FRACTIONS
1/4
(2) PLACE DEC. .01
(3) PLACE DEC.
.005
ANGLES 2 DEG.
SURFACE FINISH
250 MICRO-INCHES
R
SHEET 1 OF 1
-
INITIAL RELEASE
--- --- --- --- ---
REVISION HISTORY
REV REVISION DESCRIPTION B.O.M. ELEC. ENG MECH. ENG CHECKED APPROVED
NOTES:
1.
2.
3.
4.
5.
THIS IS A TYPICAL ARRANGEMENT FOR REFERENCE PURPOS
ES
ONLY. ACTUAL INSTALLATIONS MAY REQUIRE ADDITIONAL
COMPONENTS WHICH ARE NOT SHOWN FOR CLARITY.
THIS DRAWING IS NOT FOR CONSTRUCTION PURPOSES.
REFER TO THE INSTALLATION AND OPERATION MANUALS FO
R
INFORMATION REGARDING CLEARANCES AND INSTALLATION
REQUIREMENTS.
THE PIPING CONFIGURATION SHOULD UTILIZE A REVERSE
RETURN HEADER TO PROPERLY BALANCE FLOW ACROSS THE
BOILERS. WHERE REVERSE RETURN CANNOT BE USED, IT IS
RECOMMENDED TO INSTALL A BALANCING VALVE PER BOILE
R.
CENTER TO CENTER DISTANCE BETWEEN BOILER (PRIMARY)
SUPPLY AND RETURN MANIFOLDS SHOULD BE 4 PIPE
DIAMETERS OR LESS.
HEATING HOT
WATER SUPPLY
FULTON VANTAGE
HYDRONIC CONDENSING BOILERS
SYSTEM (SECONDARY)
PUMP WITH VARIABLE
SPEED DRIVE
EXPANSION TANK
SUPPLY WATER
TEMPERATURE SENSOR
RETURN WATER
TEMPERATURE SENSOR
HEATING HOT
WATER RETURN
SEE NOTE 5
BOILER (PRIMARY)
PUMP
CONDENSATE DRAIN
TRAP
REVERSE RETURN
(SEE NOTE 4)
